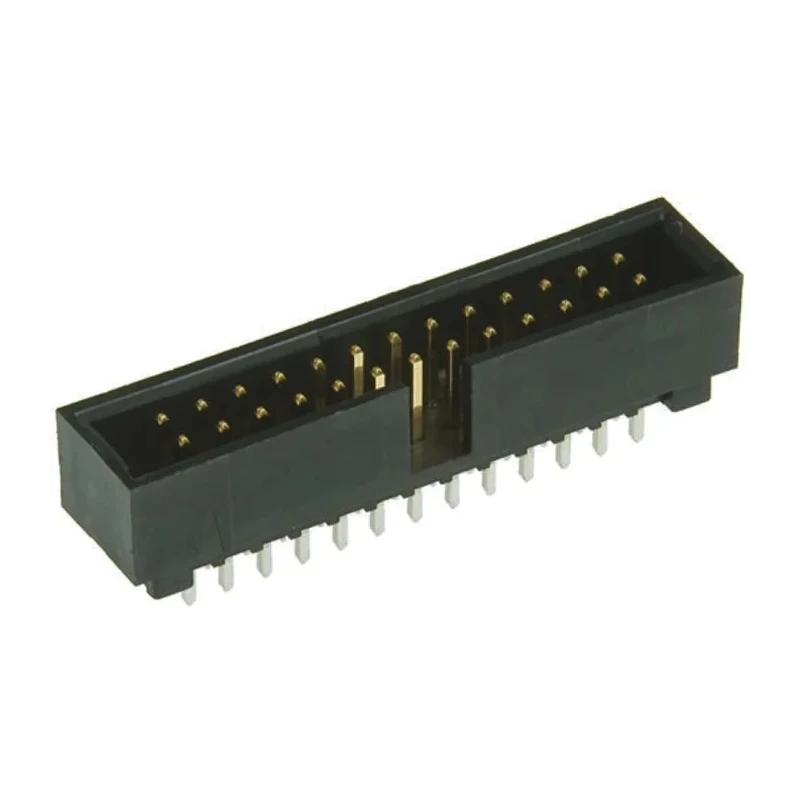

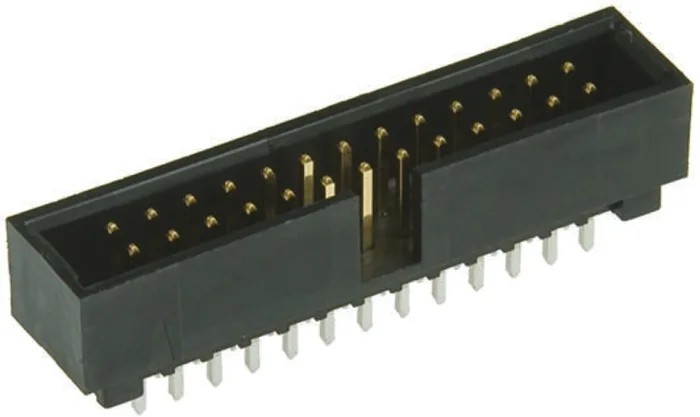

Molex C-Grid Series Straight Through Hole PCB Header, 16 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 70246-1601

Free Delivery in India | Lowest Global Shipping Charges

Molex C-Grid Series Straight Through Hole PCB Header, 16 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 70246-1601

Name: Molex C-Grid Series Straight Through Hole PCB Header, 16 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 70246-1601
Brand: Molex
SKU: 206485



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	Ireland
Voltage	250V
Brand	Molex
Orientation	Straight
Current	2.5A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Phosphor Bronze
Series	C-Grid
Termination Type	Solder
Maximum Operating Temperature	120°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	16
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.43mm
Mating Pin Length	2.54mm

Key Features

Features a straight through hole mount type supporting easy PCB assembly.
Constructed with polybutylene terephthalate housing for durability.
Contacts made from phosphor bronze with gold plating for corrosion resistance.
Rated for a current of 2.5A and voltage up to 250V for stable electrical performance.
Operates reliably in temperatures from -55°C to 120°C.
Includes a 3.43 mm tail pin length and 2.54 mm mating pin length for consistent connectivity.
Shrouded connector system prevents accidental contact and enhances safety.
Designed as a vertical DIL header compatible with 70058 series terminals.

Product Description

Molex 70246-1601 C-Grid Series Straight Through Hole PCB Header offers 16 contacts arranged in 2 rows with a 2.54 mm pitch, providing reliable electrical connections in electronics assemblies.

The product is designed with a polybutylene terephthalate housing and phosphor bronze contacts plated with gold to enhance conductivity and resistance to corrosion, ensuring long service life in demanding environments.

This PCB header is rated for 2.5A current and supports operating voltages up to 250V, withstanding operating temperature ranges from -55°C to 120°C, making it suitable for various industrial applications.

Its shrouded design adds safety by preventing accidental short circuits and mechanical damage. The header's straight orientation and through-hole mount simplify installation and improve mechanical stability on printed circuit boards.

Typical uses include electronic component assemblies requiring secure and durable wire-to-board connections, applicable in industrial, manufacturing, and electronic equipment sectors.

The product mates with Molex 70058 series terminals, facilitating versatile design options. Gold plating depth is 0.38 microns unless otherwise specified, ensuring consistent contact quality.

Straight through hole mounting for precise PCB assembly. Polybutylene terephthalate housing enhances durability. Phosphor bronze contacts with gold plating ensure reliable electrical contact. Supports 2.5A current and 250V operating voltage.

Wide operating temperature range from -55°C to 120°C. Shrouded 2-row, 16-contact design prevents accidental shorts. Compatible with 70058 series terminals for flexible integration. This PCB header is manufactured in Ireland and supplied new for industrial and commercial applications requiring dependable connector solutions.
