TDK Wall Mount EMC Filter 26A 690V AC 50Hz/60Hz Terminal Block 3 Phase B84143V0026R230

Free Delivery in India | Lowest Global Shipping Charges

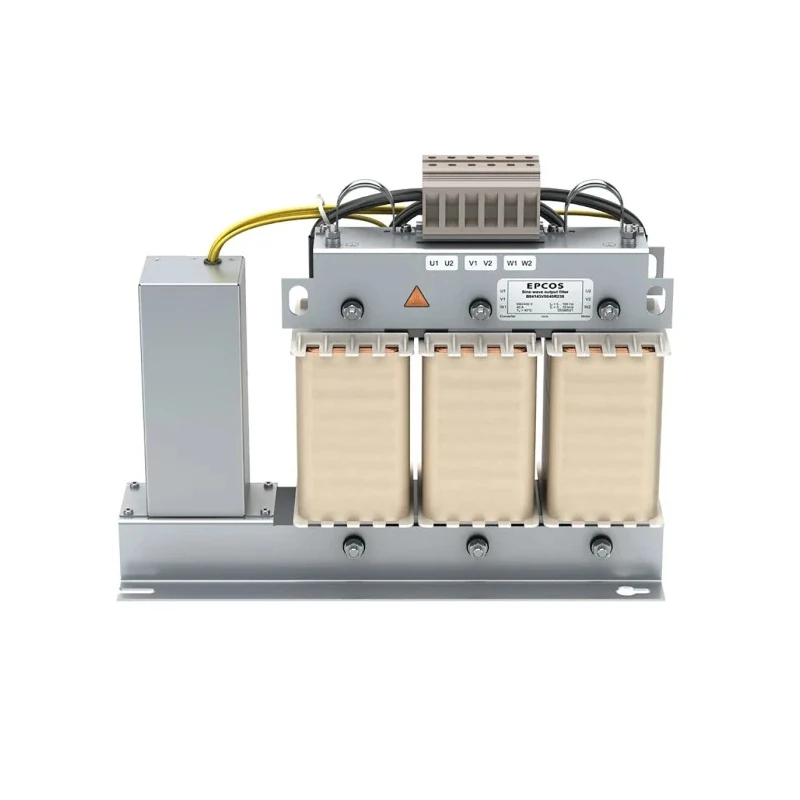

TDK Wall Mount EMC Filter 26A 690V AC 50Hz/60Hz Terminal Block 3 Phase B84143V0026R230



Category EMC Filter Brand TDK Condition New

Specifications

Country of Origin	Hungary
Brand	TDK
Height	285mm
Length	380mm
Model	B84143V0026R230
Depth	141mm
Mount Type	Wall Mount
Operating Frequency	50, 60Hz
Series	B84143V*R/S230
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Maximum Current	26A
Number of Phases	3
Maximum Voltage	690V ac
Standards/Approvals	RoHS
Termination Style	Terminal Block

Key Features

Reduces motor noise and eddy current losses effectively.
Generates sinusoidal phase-to-phase voltage with low ripple.
Provides dv/dt reduction for enhanced motor protection.
Optimized for long motor cables and full-load operation.
Natural cooling design for continuous reliability.
Easy installation with terminal block mounting.
Suitable for 3-phase frequency converters.
Compliance with RoHS environmental standards.

Product Description

TDK B84143V0026R230 is a high-performance wall mount EMC filter designed for three-phase electrical systems. Rated at a maximum current of 26A and maximum voltage of 690V AC, it operates efficiently at frequencies of 50Hz and 60Hz. This filter reduces motor noise and eddy current losses, generating sinusoidal phase-to-phase voltages with minimal ripple, thereby improving overall system performance. Its dv/dt reduction capability protects motors and associated systems from voltage spikes.

Designed with natural cooling and a wall mount form factor, it incorporates terminal block terminations for secure and easy wiring. Wiring between the inverter and the filter should not exceed 10 meters to maintain effectiveness. The filter is optimized for applications with long motor cables and full-load operation conditions.

Applications of the TDK B84143V0026R230 filter include frequency converters utilized in motor drives across various industries. Typical use cases encompass elevators, pumps, conveyor systems, and HVAC (heating, ventilation, and air conditioning) setups. Compliant with RoHS standards, this filter ensures environmentally safe operation.

Reduces motor noise and eddy current losses effectively. Generates sinusoidal phase-to-phase voltage with low ripple. Provides dv/dt reduction for enhanced motor protection. Optimized for long motor cables and full load operation.

Natural cooling design for continuous reliability. Easy installation with terminal block mounting. Suitable for 3-phase frequency converters. Compliance with RoHS environmental standards.

Manufactured in Hungary, this EMC filter meets the stringent requirements necessary for industrial and commercial electrical systems. Its robust design and reliable performance make it a dependable choice for a variety of electronic component applications. Explore the full range of electronic components and EMC Filters available to enhance your industrial electrical systems effectively.
