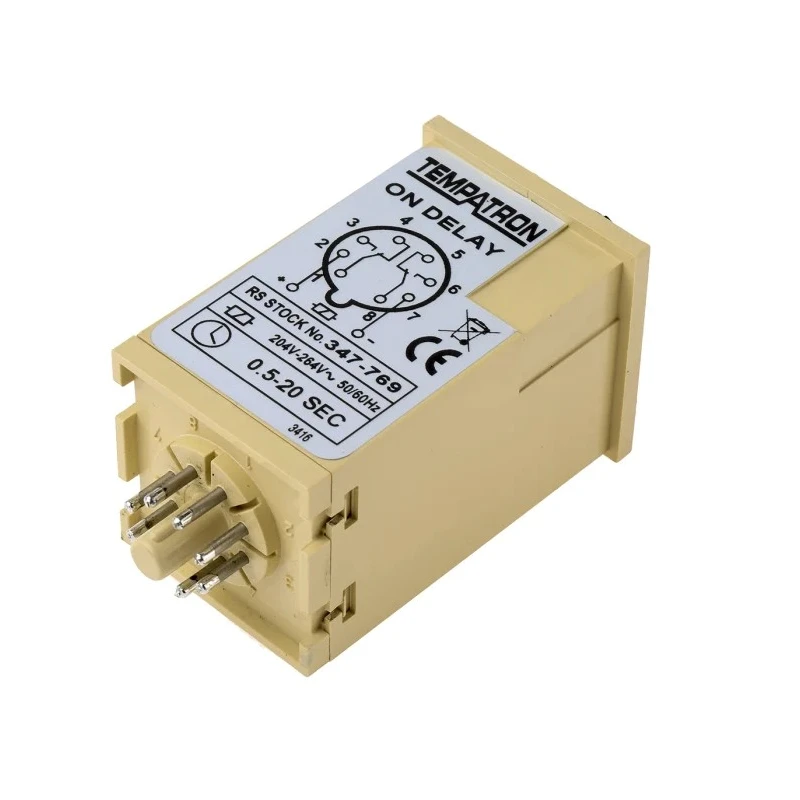

Tempatron FBD Series DIN Rail Panel Mount Timer Relay 2-Contact 230V AC 0.5 to 20 s 1-Function DPDT Switch FBDE20SLP230VAC
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Tempatron |
| Height | 106mm |
| Function | Multifunction |
| Length | 48mm |
| Model | FBDE20SLP230VAC |
| IP Rating | IP40 |
| Mode | ON Delay |
| Width | 48mm |
| Mount Type | DIN Rail, Panel Mount |
| Series | FBD |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -10°C |
| Time Range | 0.5 to 20 s |
| Terminal type | 8-Pin |
| Standards/Approvals | EN/IEC |
| Number of Contacts | 2 |
| Number of Timer Functions | 1 |
| Contact Current | 10A |
| Timing Adjustment | Knob |
| Supply AC Voltage | 230V ac |
Key Features

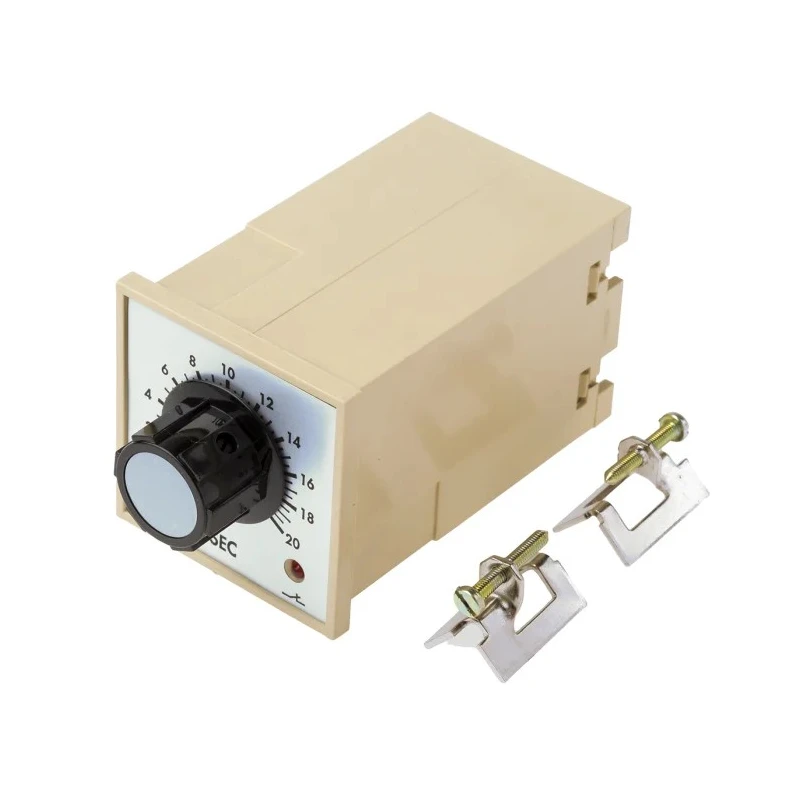

- The relay supports DIN rail and panel mounting for flexible installation.
- Equipped with LED indicators for power and relay energised status.
- Constructed with AgCdO contact material ensuring durability and reliable conduction.

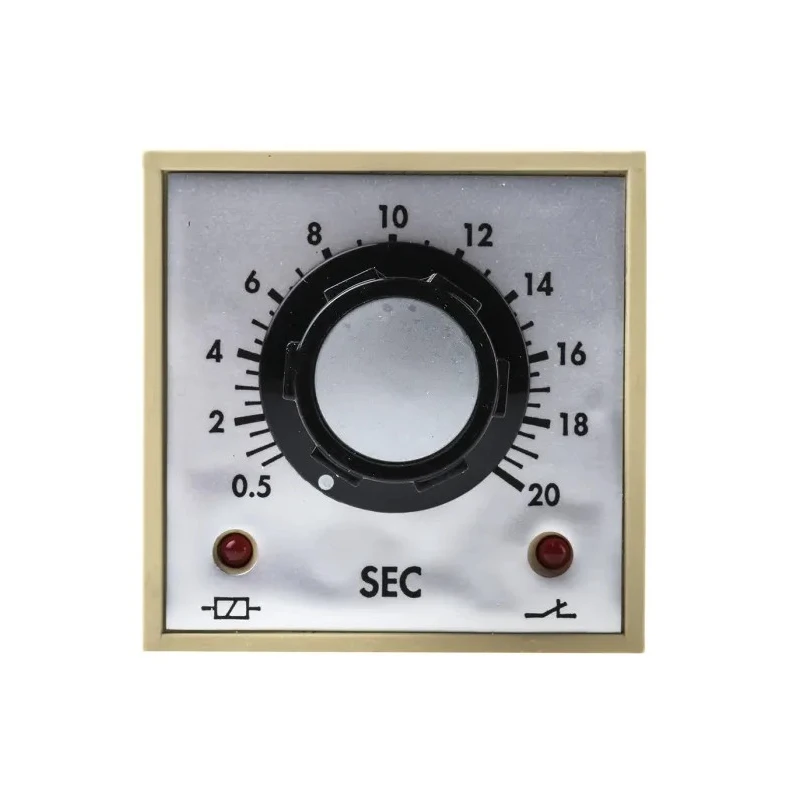

- Features a knob for easy timing adjustment within the specified range.
- Operates reliably in temperature ranges from -10°C to 60°C.
- Has an IP40 rating providing protection against solid foreign objects but not water.
- Configured with 8-pin terminals for secure electrical connections.
- Compact dimensions of 48mm length, 48mm width, and 106mm height.
Product Description
Tempatron FBDE20SLP230VAC is a high-quality timer relay designed for industrial and commercial automation applications. This device features a multifunction timer function with an ON delay mode, allowing precise control over timing intervals between 0.5 to 20 seconds, suitable for various automation processes.
The relay is engineered to mount easily on DIN rails or panels, providing versatile installation options for electrical panels and control cabinets. It is equipped with a 2-contact, double-pole double-throw (DPDT) switch configuration, fulfilling complex switching requirements.
Constructed with durable AgCdO contact material, the relay ensures reliable switching performance and longevity. The inclusion of LED indicators for power and relay status enhances user convenience during operation and troubleshooting.
Operational reliability is maintained across a broad temperature range, from -10°C up to 60°C, making it suitable for various environmental conditions. The device carries an IP40 protection rating, safeguarding internal components against solid particles while being designed for indoor use without exposure to water.
The unit features a knob for simple and accurate timing adjustments, facilitating easy configuration by users. Terminal connections utilize an 8-pin base, ensuring secure and straightforward wiring in automation systems.
The product meets rigorous European standards including EN 50081-1, EN 50082-1, and EN 61010-1, confirming compliance with electromagnetic compatibility and safety requirements.
This timer relay is ideal for industrial, HVAC, manufacturing, laboratory, and electrical control system applications requiring dependable timed switching functions and flexible mounting configurations.
Explore more timer relays and automation components in the Electronics & Electricals > Relays & Contactors > Timer Relay category on EnvMart for comprehensive industrial solutions.
