Tempatron 2B Series Timer Relay 2-Contact, DPDT Switch Configuration, 12 V dc/ac, 5 to 200 s ON Delay 2BDE200SLP12VDC

Tempatron 2BDE200SLP12VDC is a professional 2B Series Timer Relay engineered for industrial automation, electrical control panels, and signal conditioning applications. It features a 2-contact DPDT switch configuration enabling flexible relay switching options and is rated for a contact current of 10A.

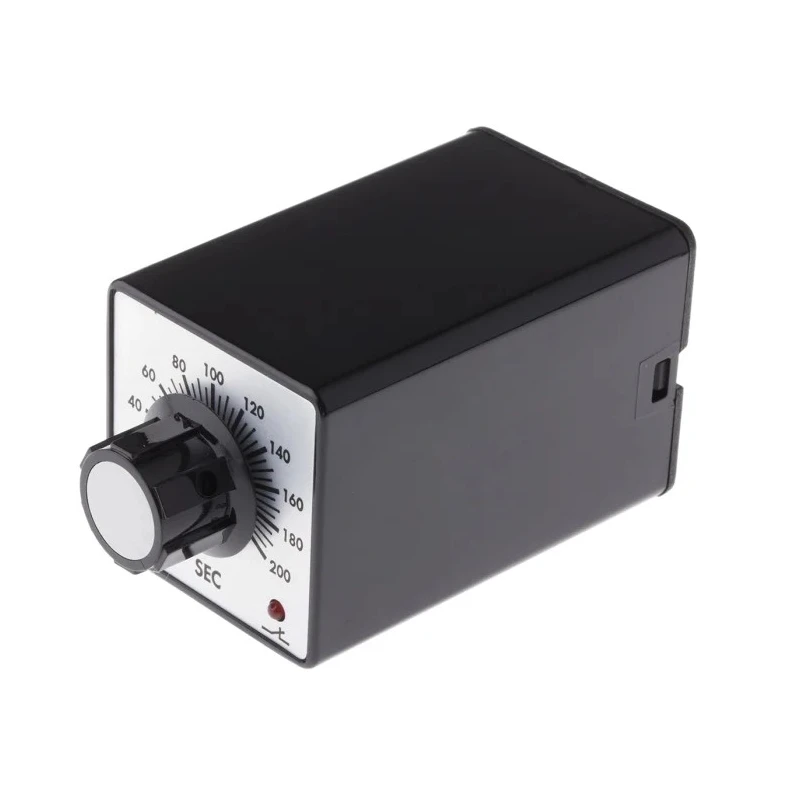

This timer relay operates on both 12 V dc and 12 V ac supply, providing versatility in different power environments. The timing range spans from 5 to 200 seconds, adjustable via a screwdriver slot, allowing precise time delay settings with the ON Delay function.

The relay has a robust design with an IP40 ingress protection rating, making it suitable for standard industrial environments where dust protection is necessary. It operates reliably within -10°C to 60°C, ensuring stable performance under varied temperature conditions.

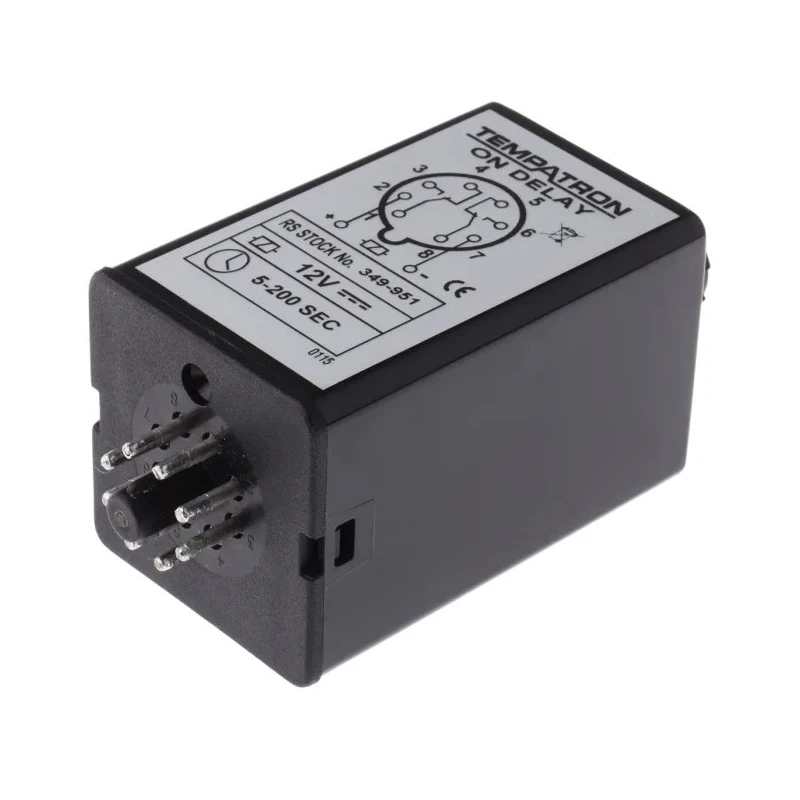

The compact form factor, measuring 108 mm in height, 48 mm in width, and 48 mm in length, facilitates straightforward integration into control systems. The octal base with an 8-pin configuration supports secure electrical connections and easy mounting.

Additional features include LED indicators for power and relay energised status, and AgCdO contact material for enhanced durability. The 2B Series complies with rigorous EN 50081-1, EN 50082-1, and EN 61010-1 standards, underscoring its quality and safety credentials.

This timer relay is ideal for industrial manufacturing, HVAC control systems, laboratory automation, and various electrical control applications demanding precise time-delay relay functions.

Designed with a DPDT contact configuration for versatile switching. Operates at supply voltages of 12 V dc and 12 V ac. Features a time range adjustable from 5 to 200 seconds via screwdriver slot. Rated for a contact current of 10A ensuring robust electrical performance.

Compact dimensions of 108 mm height, 48 mm width, and 48 mm length. IP40 rated for ingress protection, suitable for typical industrial environments. Operating temperature range from -10°C to 60°C for reliable operation. Equipped with LED indication for power on and relay energized status.

Octal base with 8-pin terminal type for easy installation. Manufactured in the United Kingdom with compliance to EN/IEC standards. Explore the range of Timer Relays on EnvMart for comprehensive solutions in industrial and automation systems.
