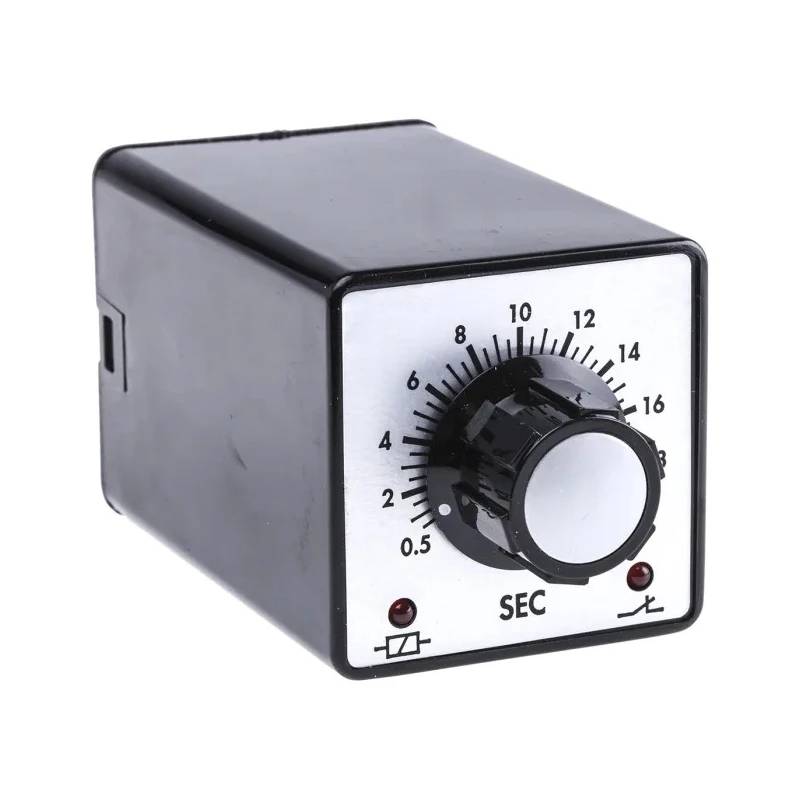

Tempatron 2B Series Timer Relay 2-Contact 110V AC 0.5 to 20 s 1-Function DPDT Switch Configuration 2BDE20SLP110VAC

Free Delivery in India | Lowest Global Shipping Charges

Tempatron 2B Series Timer Relay 2-Contact 110V AC 0.5 to 20 s 1-Function DPDT Switch Configuration 2BDE20SLP110VAC

Name: Tempatron 2B Series Timer Relay 2-Contact 110V AC 0.5 to 20 s 1-Function DPDT Switch Configuration 2BDE20SLP110VAC
Brand: Tempatron
SKU: 157554
Price: 112.61 USD
Availability: InStock



Category Timer Relays Brand Tempatron Condition New

Specifications

Country of Origin	United Kingdom
Brand	Tempatron
Height	108mm
Length	48mm
Model	2BDE20SLP110VAC
IP Rating	IP40
Mode	ON Delay
Width	48mm
Series	2B
Maximum Operating Temperature	60°C
Contact Configuration	DPDT
Minimum Operating Temperature	-10°C
Time Range	0.5 to 20 s
Terminal type	8-Pin
Standards/Approvals	EN/IEC
Number of Contacts	2
Number of Timer Functions	1
Contact Current	10A
Timing Adjustment	Screwdriver Slot
Supply AC Voltage	110V ac

Key Features

Designed for 110V AC supply voltage with a 0.5 to 20 second timing range.
DPDT contact configuration provides two contacts rated at 10A current.
Features an ON delay mode with screwdriver slot timing adjustment.
Compact size with dimensions 48mm length, 48mm width, and 108mm height.
IP40 rated enclosure suitable for industrial environments.
Operating temperature range from -10°C to 60°C.

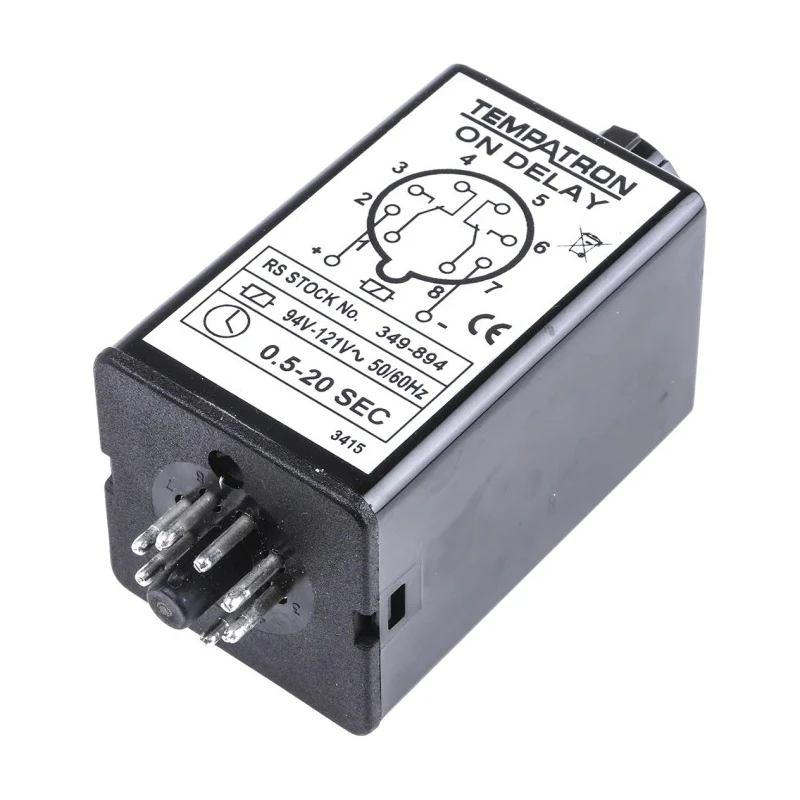

Equipped with an 8-pin octal base terminal connection.
Silver cadmium oxide (AgCdO) contacts ensure durability and reliability.

Product Description

Tempatron 2BDE20SLP110VAC is a precision 2B Series timer relay designed for reliable time control applications in industrial automation and electrical systems. It features a 2-contact DPDT (Double Pole Double Throw) switch configuration suited for 110V AC power supplies.

This timer relay offers an adjustable time range from 0.5 to 20 seconds, controlled in an ON delay mode via a screwdriver slot adjustment. It is constructed with resilient AgCdO contact material for long-lasting performance and supports a contact current rating of 10 amperes.

The compact relay dimensions (48mm length, 48mm width, 108mm height) combined with an IP40 ingress protection rating make it suitable for industrial environments requiring indoor protection against solid objects over 1 mm in size. The relay operates efficiently within a temperature range of -10°C to 60°C.

Connection is facilitated by an 8-pin octal base allowing easy integration with panel and DIN rail mounting setups. The relay includes an LED indicator for power presence and relay energised status to aid in diagnostics and status monitoring.

Designed for industrial automation and control panel applications. Offers precise timing functions essential to electrical equipment control. Robust construction suitable for manufacturing, HVAC, and process control. Compatible with EN/IEC standards including EN 50081-1, EN 50082-1, and EN 61010-1.

Ideal for reliable switching applications in commercial and industrial electrical systems.

Tempatron timer relays such as the 2BDE20SLP110VAC are widely used in automation, construction, and manufacturing industries where accurate timing control is critical. Browse EnvMart’s selection of Timer Relays for diverse industrial and electrical automation needs.
