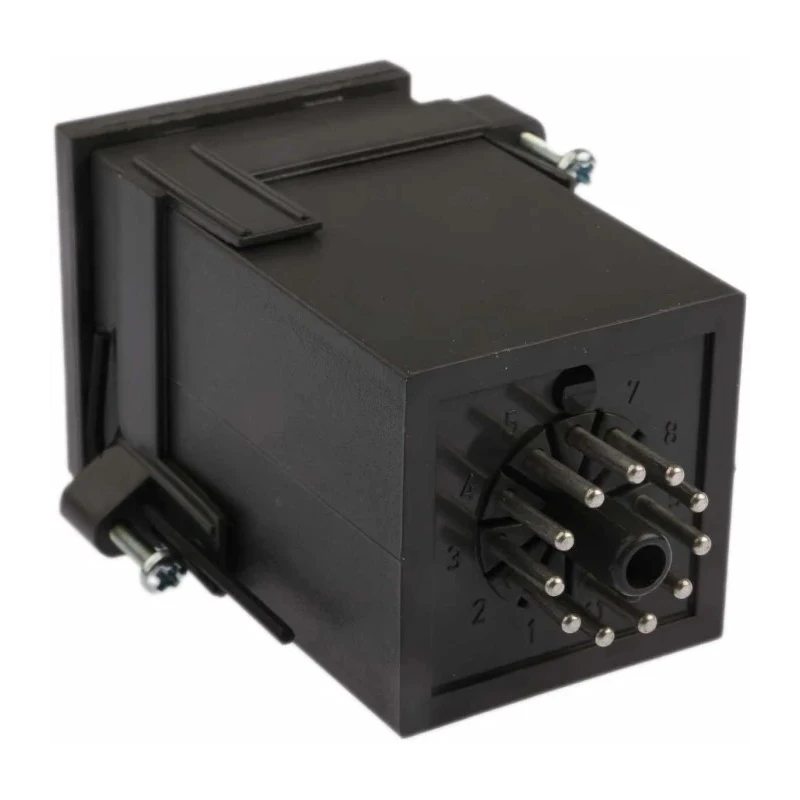

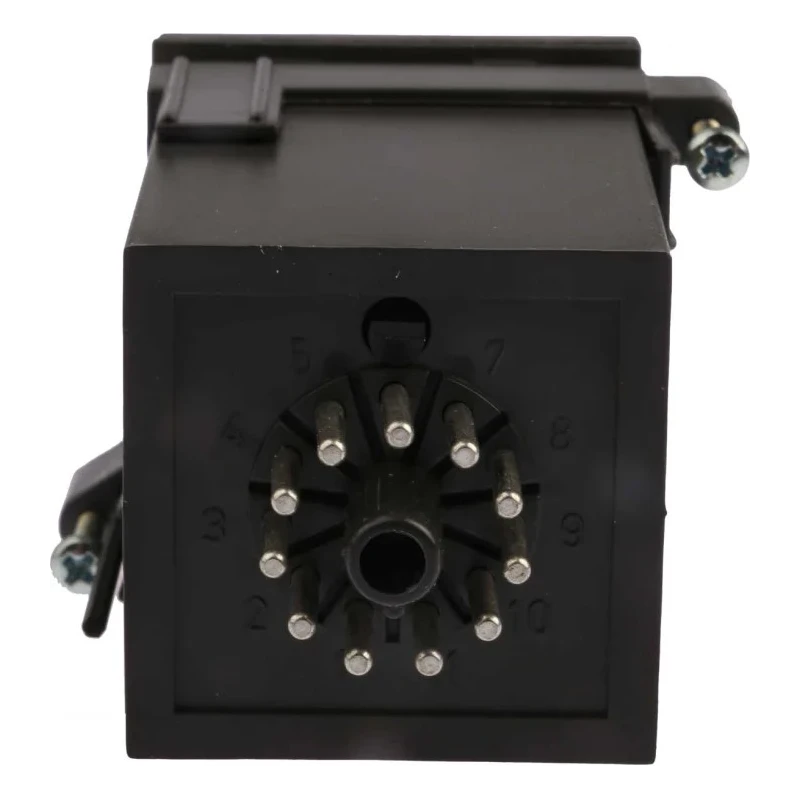

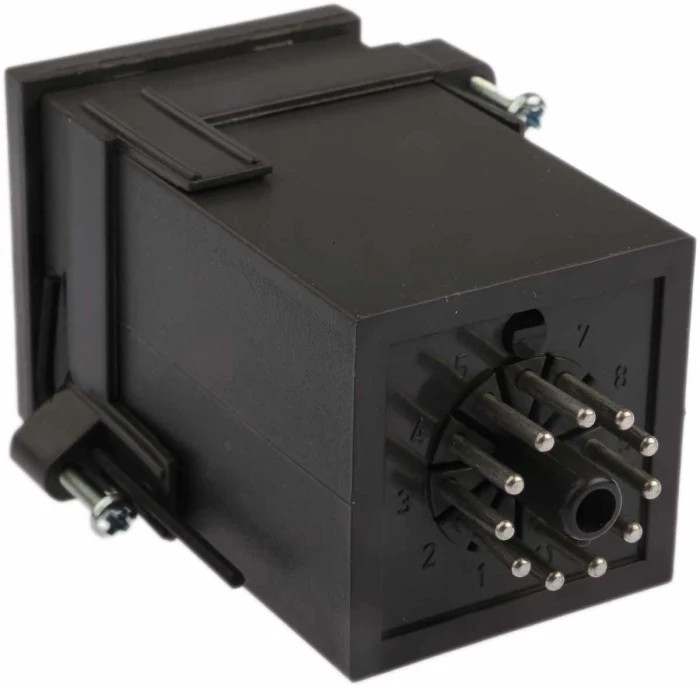

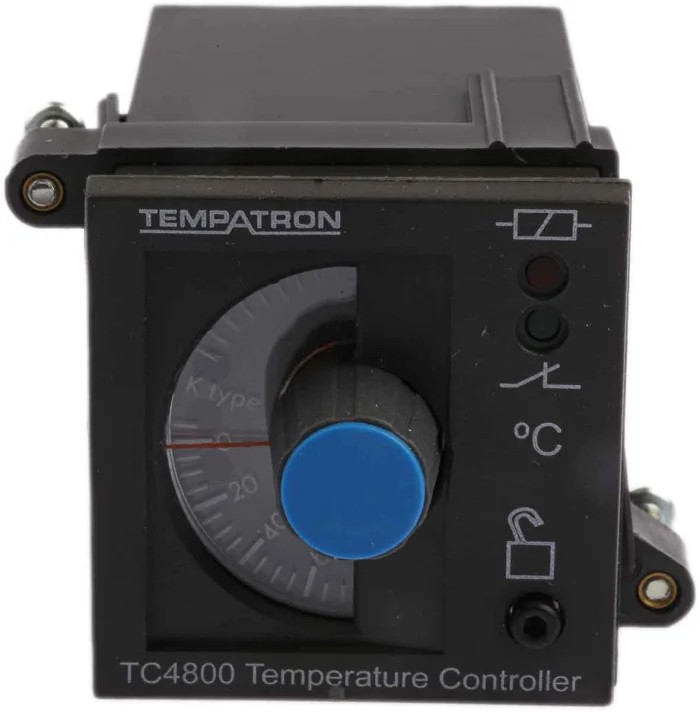

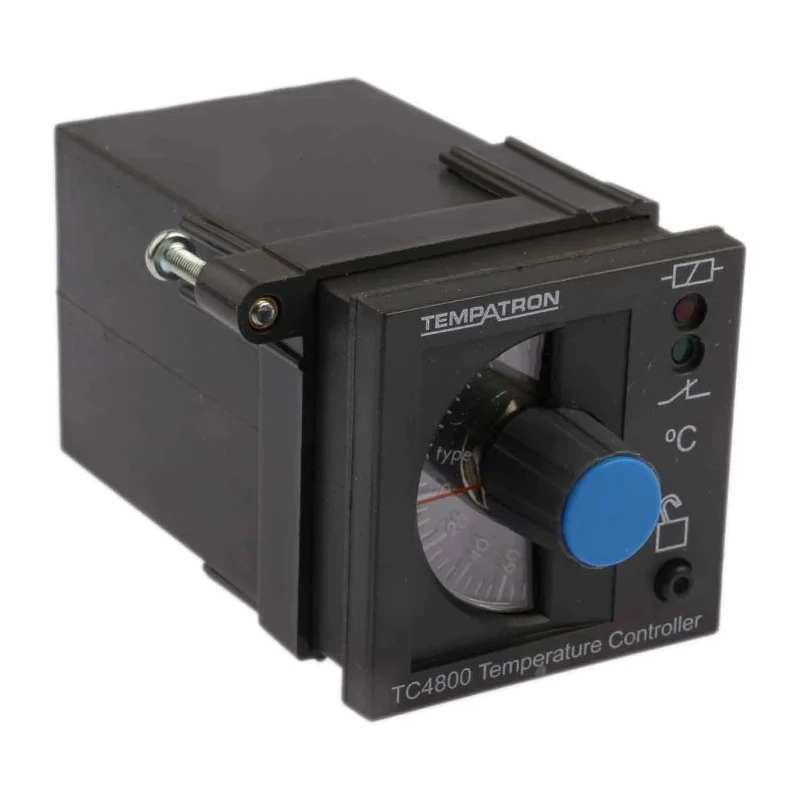

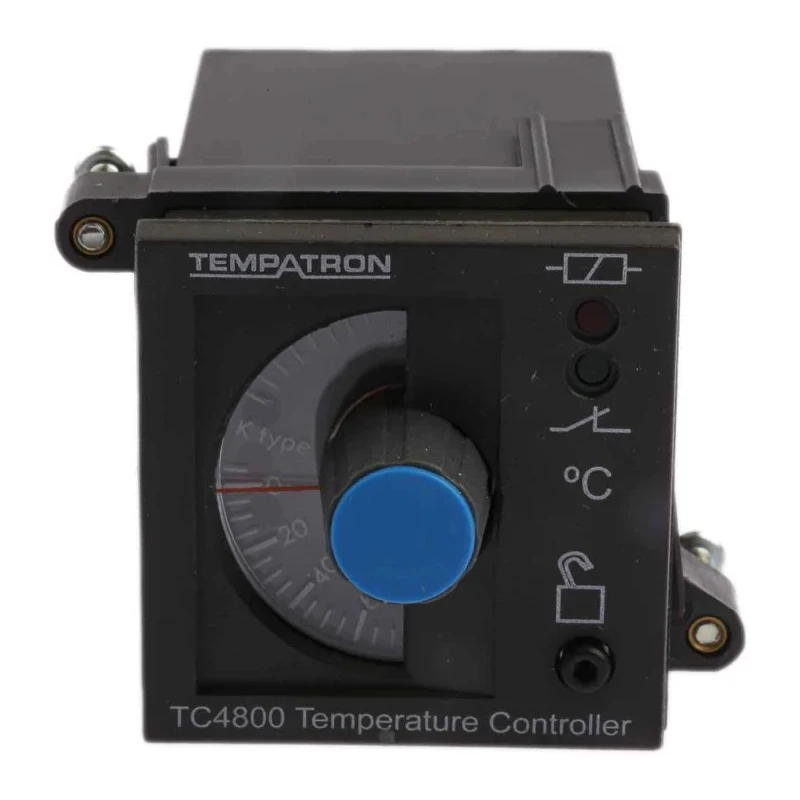

Tempatron On-Off Temperature Controller DIN Rail, Panel, Surface Mount, 5 Output Relay, 230V AC, TC4800 Series

Tempatron TC4810-01-110/240VAC is a precision temperature controller designed for industrial process control in manufacturing, HVAC, laboratory, and automation applications. It is part of the TC4800 series, offering versatile mounting options including DIN rail, panel, and surface installation for flexible integration into control cabinets and machinery.

With 5 relay outputs, this controller supports multiple temperature-related switching functions, delivering a maximum current of 5A. It operates within a supply voltage range of 110 - 240V AC, ensuring compatibility in varied environments. The device is equipped with a LED display indicating both the operational status and power supply condition, facilitating easy monitoring during operation.

The TC4810-01-110/240VAC accepts K type thermocouple input, accommodating a scale range of 0°C to 200°C, suitable for precise temperature measurement and regulation. Its compact enclosure, measuring 48mm in width and 89mm in length, fits seamlessly into DIN48 panels and standard industrial sockets. The screw terminal interface ensures secure electrical connection and quick installation.

This unit is designed to operate within an ambient temperature range of -10°C to 50°C, making it robust for most industrial environments. It features IP40 protection, shielding internal components from dust and accidental contact. The product meets international safety and EMC standards, including EN61010-1 and EN50081-1/50082-1.

Typical use cases for this Temperature Controller include process heating and cooling, environmental chambers, HVAC systems, laboratory incubation, industrial ovens, and automated temperature feedback systems. The panel depth of 74mm allows for installation in shallow control cabinets, while the supplied hex key facilitates secure temperature setting adjustments.

This controller is supplied with a hex key for locking settings, supports both direct and reverse action, and provides matching timer and tachometer relay compatibility for advanced process control.

Industrial and manufacturing environments benefit from its reliable multi-relay output and robust build. Laboratory technicians can regulate temperature accurately in test chambers and ovens. Building automation systems utilize the controller for environmental monitoring and control.
