TDK Chassis Mount EMC Filter 10 A 250V ac/dc 50Hz, 60 Hz, Lug Termination, Single Phase B84111F0000M110

Free Delivery in India | Lowest Global Shipping Charges

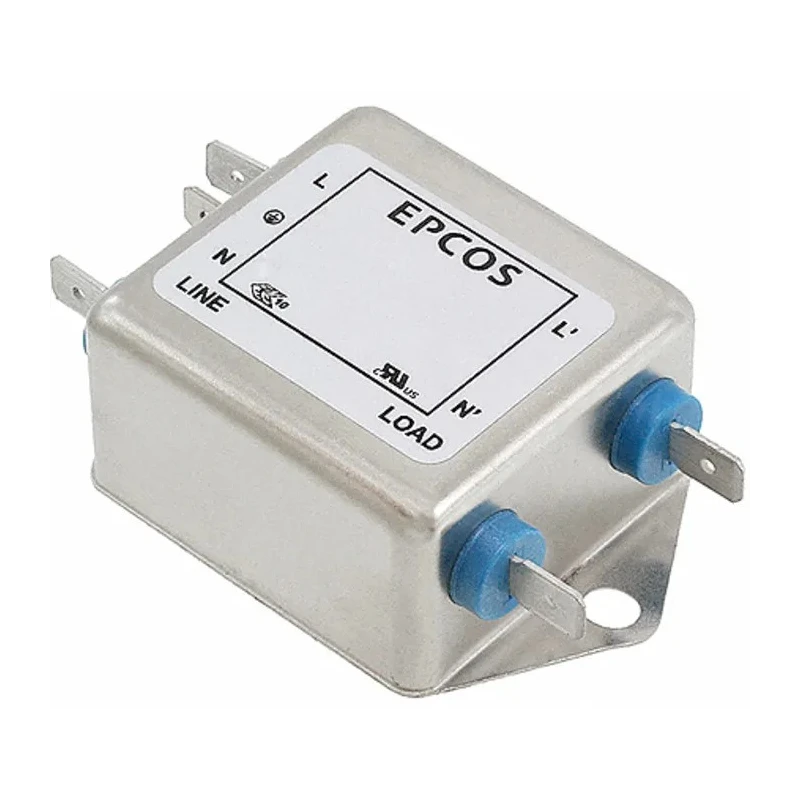

TDK Chassis Mount EMC Filter 10 A 250V ac/dc 50Hz, 60 Hz, Lug Termination, Single Phase B84111F0000M110



Category EMC Filter Brand TDK Condition New

Specifications

Country of Origin	China
Brand	TDK
Height	26mm
Length	35mm
Model	B84111F0000M110
Depth	43.5mm
Mount Type	Chassis Mount
Operating Frequency	50, 60Hz
Series	B84111F
Maximum Operating Temperature	100°C
Number Of Stages	1
Capacitance	2μF
Minimum Operating Temperature	-25°C
Maximum Current	10A
Number of Phases	1
Leakage Current	0mA
Maximum Voltage	250V ac/dc
Inductance	2mH
Standards/Approvals	UL1283
Termination Style	Lug

Key Features

Features lug termination style for secure mounting.
Single phase, single stage design for effective EMI filtering.
Capacitance of 2μF and inductance of 2mH for optimal noise suppression.
Operates reliably across temperature range from -25°C to 100°C.
Zero leakage current ensures energy efficiency and safety.
Constructed with polyurethane potting rated UL 94 V-0 for flame retardance.
Complies with international standards including UL1283, ENEC10, UL, and cUL approvals.
Ideal for switched mode power supplies in telecom and data systems.

Product Description

TDK B84111F0000M110 chassis mount EMC filter is designed to provide efficient electromagnetic interference suppression in single-phase power supply applications. Rated for 10 A current and a maximum voltage of 250V ac/dc, it operates at standard industrial frequencies of 50Hz and 60Hz.

The filter presents a lug termination style ensuring easy and secure mounting to the chassis. Its single stage and single phase configuration make it suitable for various electronic equipment, including switched mode power supplies used in telecom and data systems.

With compact dimensions of 35mm length, 43.5mm depth, and 26mm height, it fits well in limited space applications. The integrated capacitance of 2μF and inductance of 2mH contribute to effective noise reduction, while maintaining zero leakage current for optimal performance and safety.

Engineered with polyurethane potting conforming to UL 94 V-0 flammability standards, the filter offers enhanced durability and electrical insulation. Its operational temperature range from -25°C to 100°C ensures reliability under varying environmental conditions.

Features lug termination style for secure mounting. Single phase, single stage design for effective EMI filtering. Compact dimensions: 35mm length, 43.5mm depth, and 26mm height. Capacitance of 2μF and inductance of 2mH for optimal noise suppression.

Operates reliably across temperature range from -25°C to 100°C. Zero leakage current ensures energy efficiency and safety. Constructed with polyurethane potting rated UL 94 V-0 for flame retardance. Complies with international standards including UL1283, ENEC10, UL, and cUL approvals.

Ideal for switched mode power supplies in telecom and data systems. Manufactured in China with high-quality materials and robust engineering.

This EMC filter from TDK is a robust component widely used in industrial, telecommunications, laboratory, and power conditioning applications requiring electromagnetic interference mitigation. Its design emphasizes ease of installation, safety, and compliance with crucial electrical standards.
