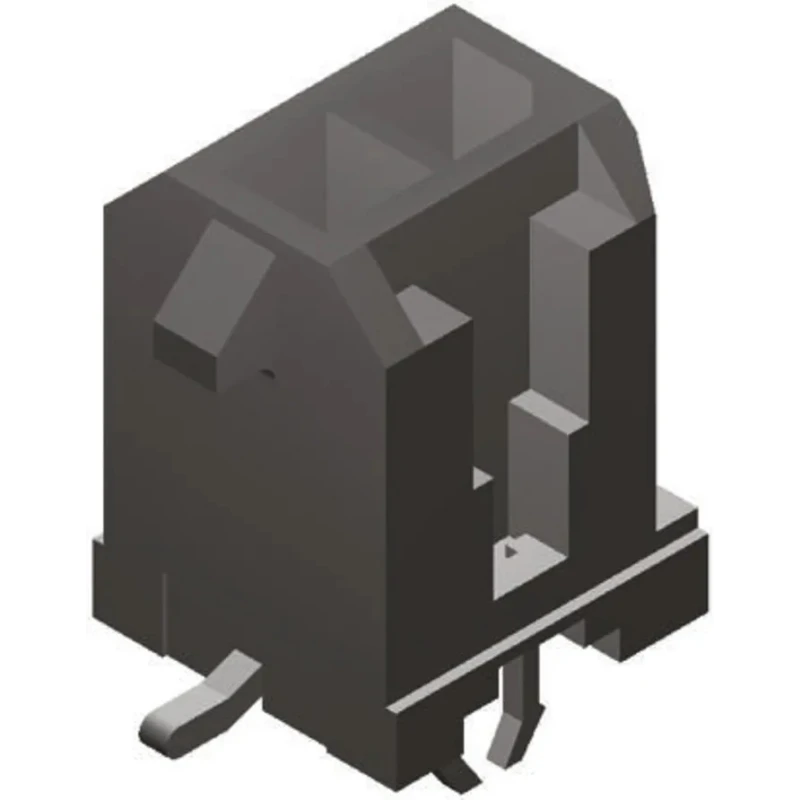

Molex Micro-Fit 3.0 Series Straight Surface PCB Header, 2 Contact, 3 mm Pitch, 2 Row, Shrouded 43045-0219

Molex 43045-0219 Micro-Fit 3.0 Series Straight Surface PCB Header is a compact and efficient connector featuring 2 contacts arranged in 2 rows with a 3 mm pitch. This shrouded male connector is designed for wire-to-board applications requiring a reliable low to mid-range power distribution solution.

The connector supports a maximum current of 5A and can operate up to 250V, making it ideal for a wide variety of electronic and power equipment. The thermoplastic housing is made from a UL 94V-0 liquid crystal polymer that withstands temperatures up to 265°C during IR reflow soldering, while maintaining mechanical strength and durability.

The positive latching mechanism with a locking ramp provides a secure mating connection to prevent accidental disconnection during use. The gold-plated brass contacts offer excellent electrical conductivity and corrosion resistance, fully isolated within the housing to enhance safety by reducing arcing.

Solder tabs incorporated into the design ensure a stable and permanent surface mount attachment to the PCB. The connector is male gender with mating pin length of 3 mm and adheres to industry standards without additional certifications.

This Micro-Fit 3.0 header connector is suitable for numerous industrial and commercial applications including military COTS, solar power systems, home appliances like dryers and refrigerators, data communications equipment such as routers and servers, medical devices, telecommunications, and gaming terminals.

Compact power connector system allowing up to 5A current capacity. Thermoplastic housing ensures high-temperature resistance and durability. Positive latching feature provides secure mating and prevents accidental disconnection.

Gold-plated brass contacts ensure reliable electrical performance. Surface mount design with solder tabs enables secure PCB attachment. Wide operating temperature range from -40°C to 125°C suitable for harsh environments.

Dual beam terminals fully isolated within housing to reduce arcing risks. Compatible with IR reflow soldering processes due to UL 94V-0 liquid crystal polymer housing material.

Choose this Molex Micro-Fit 3.0 Series PCB Header for high performance, reliability, and versatility in demanding electronic assembly applications. Browse our extensive catalog for more connectors and accessory components tailored to your industrial needs at EnvMart.
