EAO 82 Series Push Button Switch Momentary Panel Mount 19 mm Cutout Silver SPDT IP65 IP67 240 V DC/AC 3A Snap 82-5152.1000



Category Push Button Switches & Components Brand EAO Condition New

Specifications

Country of Origin	Switzerland
Brand	EAO
Length	32.5mm
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Switch Configuration	Snap Action
Minimum Operating Temperature	-30°C
Panel Cutout Size	19 mm
Terminal type	Screw
Standards/Approvals	CB, CCC, cUL, UL
Switch Operation	Momentary
Actuator Colour	Silver
Contact DC Voltage	240V dc
Actuator Style	Round
Switch Contact Current	3A
Contact AC Voltage	240V ac
Vandal resistant	IK10 impact resistance & frontal protection up to IP67

Key Features

Operates with momentary snap action providing accurate equipment control.
Panel cutout size is 19 mm, with an overall length of 32.5 mm for compact integration.
SPDT contact configuration with screw terminals for secure wiring.
Rated for switching current of 3 A at 240 V AC/DC suitable for low voltage applications.
Stainless steel actuator in silver color offering corrosion resistance and vandal protection.
IP65 and IP67 ingress protection, dust tight and water resistant up to 1m immersion.
Wide temperature range from -30°C to +70°C supports usage in harsh environments.
Robust mechanical lifespan exceeding one million operating cycles ensures longevity.

Product Description

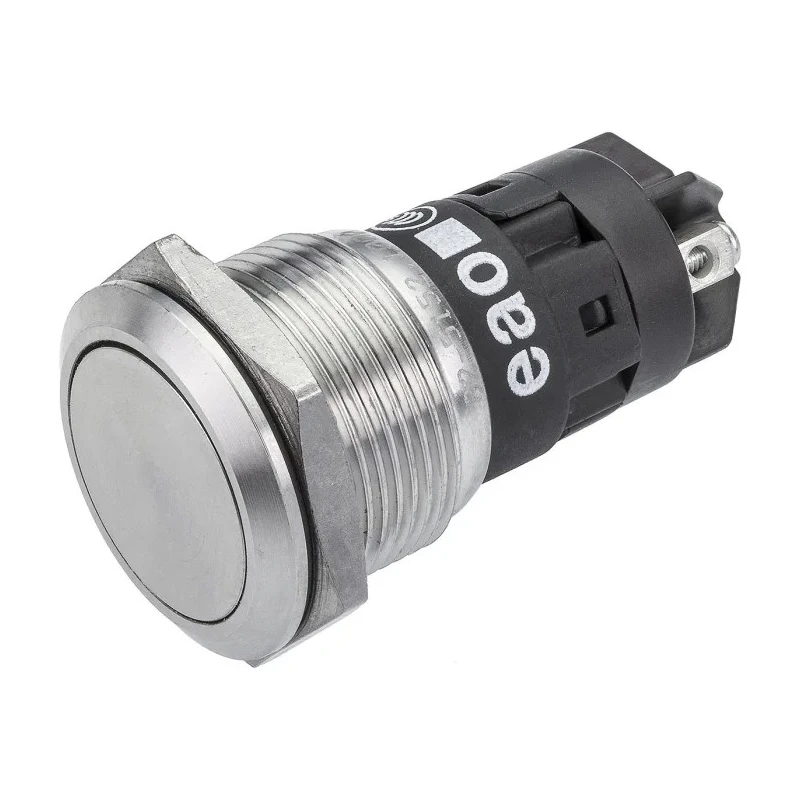

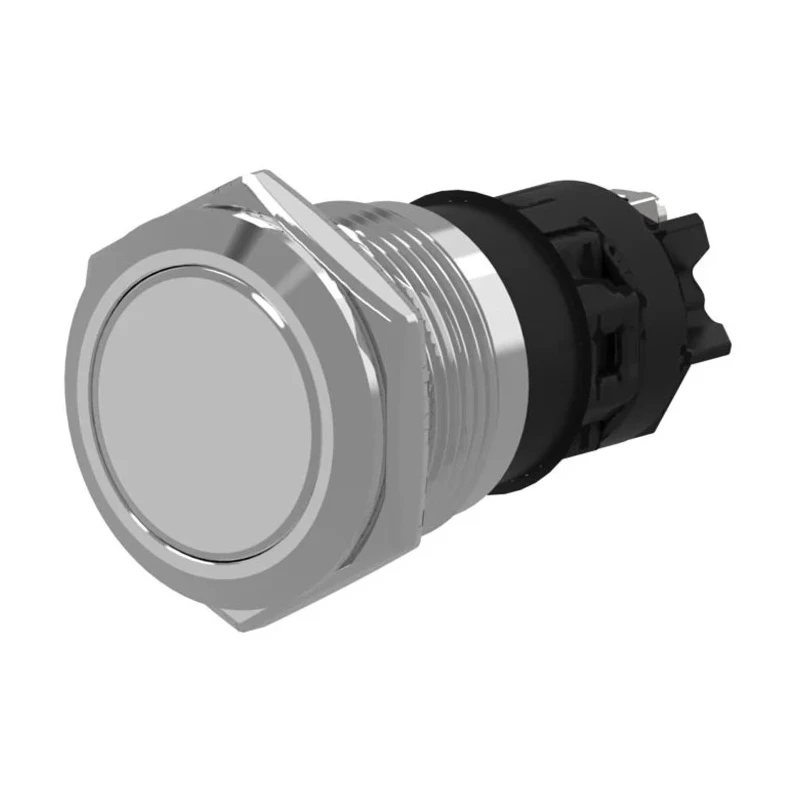

EAO 82-5152.1000 is a momentary push button switch from the 82 series, designed for panel mounting with a 19 mm cutout diameter. This switch features a stainless steel actuator finished in silver, engineered for robust performance and vandal resistance complying with IK10 impact standards.

It supports single pole double throw (SPDT) contact configuration and is equipped with screw terminals to facilitate secure electrical connections. Rated for use at 240 V AC and DC with a maximum switching current of 3 A, it suits low voltage industrial and manufacturing equipment.

Featuring IP65 and IP67 ingress protection ratings, it is dust tight and water resistant to submersion up to 1 meter for 30 minutes, rendering it suitable for harsh environmental conditions. The operating temperature range of -30°C to +70°C further extends its applicability to demanding industrial, construction, and public infrastructure settings.

The compact size with a front diameter of 22 mm and length of 32.5 mm saves panel space, while the round actuator style with snap action ensures crisp tactile feedback. The switch’s mechanical durability is rated for over one million operations, providing reliable long-term functionality.

Typical applications include manufacturing facilities, construction machinery, medical devices, and public infrastructure machinery control panels. The product holds international certifications including CB, CCC, cUL, and UL, assuring compliance to industrial safety norms.

Momentary switch operation with snap action. SPDT contact configuration with screw terminals. IP65 and IP67 rated for dust and waterproof protection. Operating temperature range from -30°C to 70°C. Stainless steel actuator for corrosion and impact resistance.

Compact design with 19 mm panel cutout. Switch contact current rated at 3 A for AC/DC voltages. Mechanical lifespan exceeding one million cycles. Compliance with CB, CCC, cUL, and UL certifications. Lightweight at 18 grams to reduce strain on panels.
