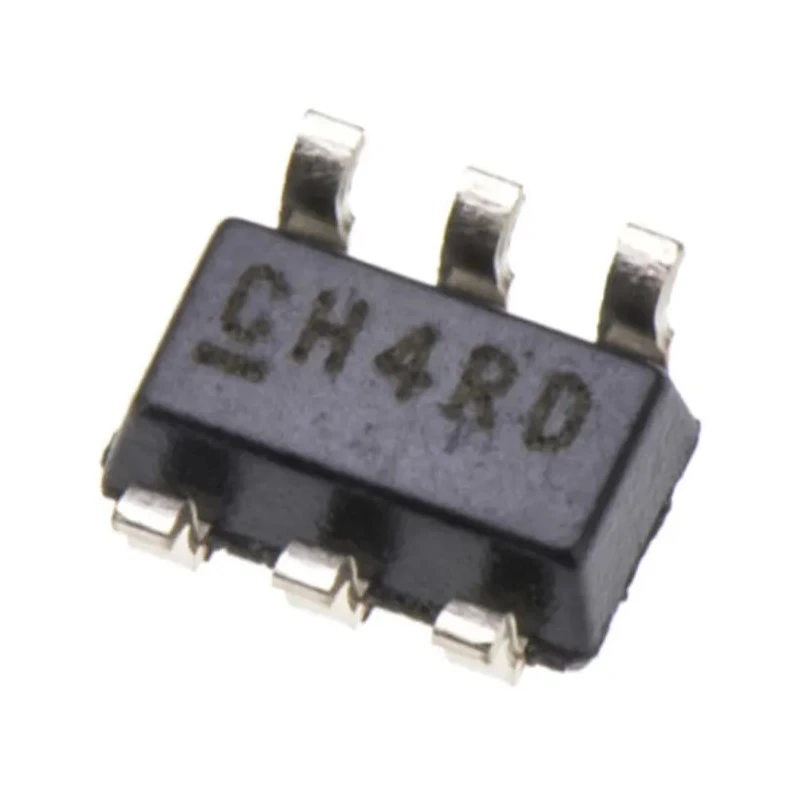

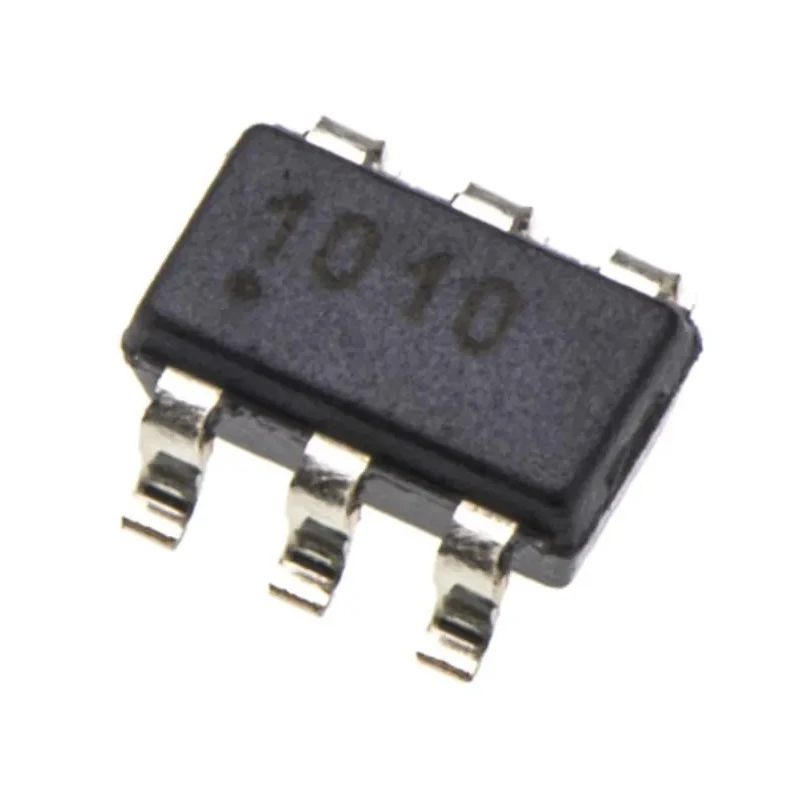

Renesas Electronics ISL43210AIHZ-T7A Analogue Switch 1 CMOS Single SPDT 6-Pin SOT-23
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Height | 1.15mm |
| Length | 2.9mm |
| Model | ISL43210AIHZ-T7A |
| Width | 1.6mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | ISL43210A |
| Configuration | Single SPDT |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 6 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 15V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 2.7V |
| Maximum On State Resistance | 25Ω |
Key Features
- Operates within a supply voltage range of 2.7V to 15V.
- Compact SOT-23 package with dimensions 2.9mm length, 1.6mm width, and 1.15mm height.
- Features a maximum on-state resistance of 25 ohms for reliable signal conduction.
- Wide operating temperature range from -40°C to 85°C suitable for various environments.
- Single element per chip configured in single SPDT layout for precise switching.
- Designed using CMOS logic family with CMOS/TTL output compatibility.
- Surface mount mount type allows easy PCB integration.
- RoHS compliant ensuring environmental standards are met.
Product Description
Renesas Electronics ISL43210AIHZ-T7A analogue switch is a CMOS logic family device, featuring a single CMOS SPDT (single-pole double-throw) element housed in a 6-pin SOT-23 surface mount package. It operates from a voltage supply range of 2.7V minimum to 15V maximum and is designed for robust analogue signal switching with a maximum on-state resistance of 25 Ω. This device operates reliably across a wide temperature span from -40°C to +85°C, making it suitable for diverse industrial, electronic, and commercial applications requiring precise analogue signal routing.
This compact component measures 2.9mm in length, 1.6mm in width, and 1.15mm in height, facilitating integration into space-constrained PCB designs. The ISL43210AIHZ-T7A is RoHS compliant, ensuring it meets environmental and safety standards.
The single SPDT configuration provides efficient signal selection applications, widely used in multiplexers, demultiplexers, and analogue switching circuits. Being CMOS/TTL output compatible, it adapts easily to mixed-logic environments.
Typical use cases include industrial automation controls, signal processing systems, communication devices, and other electronic circuitry requiring analogue multiplexing functions. Its surface mount design supports high-volume manufacturing and automated PCB assembly processes.
Operates at supply voltages between 2.7V and 15V. Maximum on-state resistance of 25 ohms minimizes signal loss. Compact 6-pin SOT-23 package with small footprint dimensions. Wide operating temperature -40°C to 85°C for reliability.
Single element per chip, single SPDT configuration. CMOS logic family with CMOS/TTL output compatibility. RoHS compliance affirms environmental safety. Surface mount type for easy PCB integration. Part of the ISL43210A series, specialized for analogue switch and multiplexer applications.
Explore more semiconductor products like this analogue switch within our Electronics & Electricals category at EnvMart for industrial and commercial electronic projects.
Explore more products in our Multiplexer & Demultiplexer ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of 2.7V to 15V.
The maximum on-state resistance is 25 ohms, which helps minimize signal loss during operation.
The SOT-23 package measures 2.9mm in length, 1.6mm in width, and 1.15mm in height.
It operates reliably across a wide temperature range from -40°C to +85°C.
It features CMOS/TTL output compatibility, making it suitable for mixed-logic environments.
There is a single element per chip configured in a single SPDT layout.
It utilizes a surface mount type, allowing for easy integration into PCBs.
This model is RoHS compliant, ensuring it meets environmental safety standards.
It is configured as a single SPDT (single-pole double-throw) switch for efficient signal routing.
It is part of the ISL43210A series, which is specialized for analogue switch and multiplexer applications.
Typical applications include industrial automation controls, signal processing systems, and communication devices.
This model has a pin count of 6.
