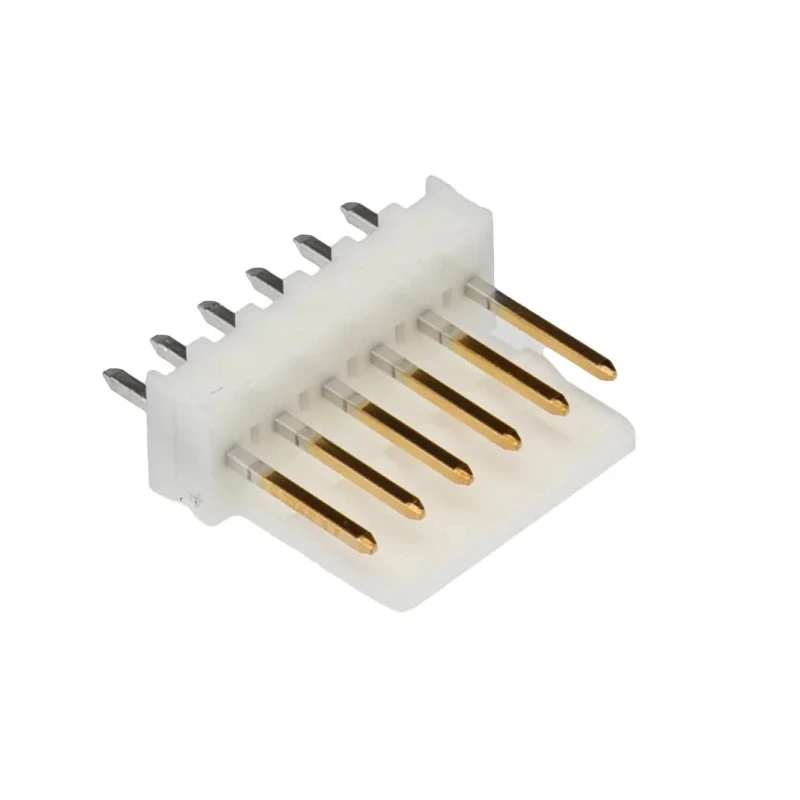

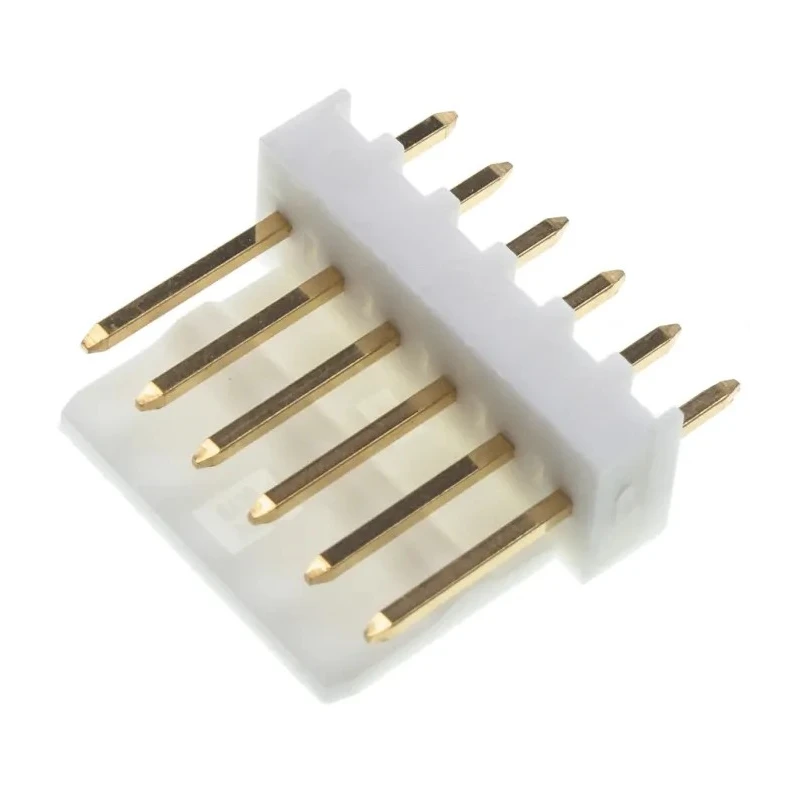

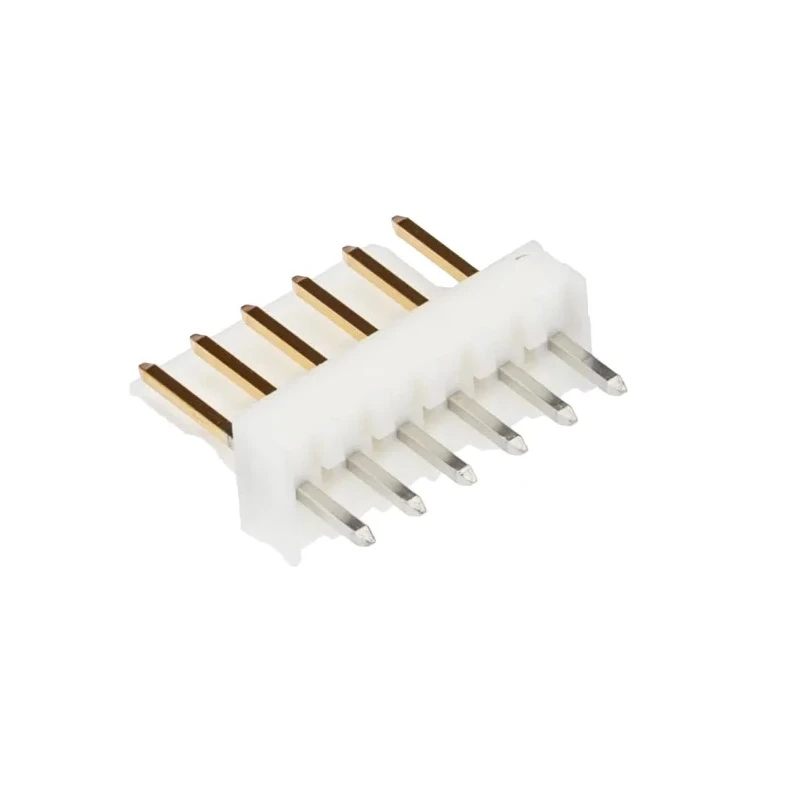

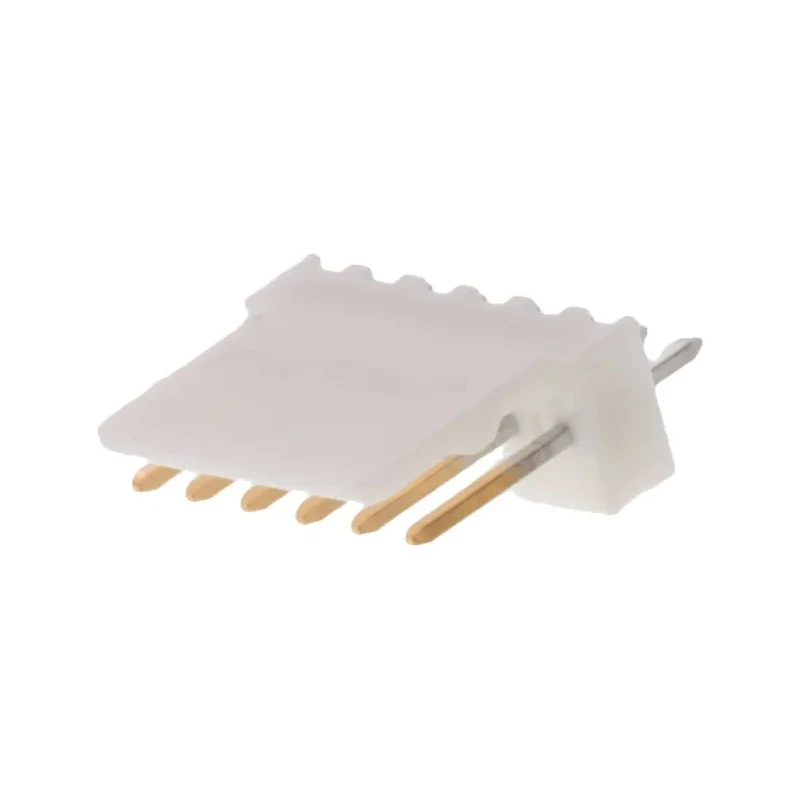

Molex KK 254 Series 6 Contact Straight Through Hole Pin Header 2.54 mm Pitch 1 Row Unshrouded 22-29-2061

Name: Molex KK 254 Series 6 Contact Straight Through Hole Pin Header 2.54 mm Pitch 1 Row Unshrouded 22-29-2061
Brand: Molex
SKU: 206372
Price: 1.42 USD
Availability: InStock



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Molex
Orientation	Straight
Current	4A
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	KK 254
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	6
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Wire-to-Board
Tail Pin Length	3.56mm
Mating Pin Length	2.54mm

Key Features

Pin header designed for through-hole mounting on PCBs.
Contacts made of gold-plated brass for excellent conductivity and corrosion resistance.
Single-row layout with 6 male contacts and 2.54 mm pitch spacing.
Robust nylon housing provides reliable electrical insulation.
Suitable for wire-to-board connections in industrial and electronic applications.
Operates within -40°C to 105°C temperature range.
Termination type is solder for secure mounting.

Product Description

Molex 22-29-2061 KK 254 Series Straight Through Hole Pin Header offers a reliable 6-contact solution with a 2.54 mm pitch in a single row, unshrouded pin header configuration. It is designed for through-hole mounting on printed circuit boards, ensuring stable and long-lasting connectivity.

This pin header features gold-plated brass male contacts that deliver excellent electrical conductivity while resisting corrosion, maintaining signal integrity and power flow without interruption. The nylon housing provides dependable electrical insulation and mechanical stability under diverse operational conditions.

Operating within a temperature range of -40°C to 105°C and rated for 4A current and 250V voltage, this connector is suitable for demanding electronic and industrial environments such as industrial networks, single-board computing, and logistics equipment.

The termination uses soldering, providing a robust and secure mechanical and electrical connection to the PCB. The 2.54 mm pitch and 1-row layout make it compatible with various other Molex housings, enabling flexible wire-to-board solutions with ease of installation in compact spaces.

Pin header designed for through-hole PCB mounting. Gold-plated brass contacts ensure superior conductivity and corrosion resistance. Single-row, 6-contact layout with standard 2.54 mm pitch spacing. Durable nylon housing provides electrical insulation and mechanical strength.

Supports current rating of 4A at 250V voltage level. Operates reliably between -40°C and 105°C. Designed for wire-to-board connector system. Solder termination type for secure connection.

This product is an ideal choice for electronics manufacturers and engineers requiring robust and precise PCB connectors. It is widely applicable in industrial networking, automation, control systems, and embedded computing devices.
