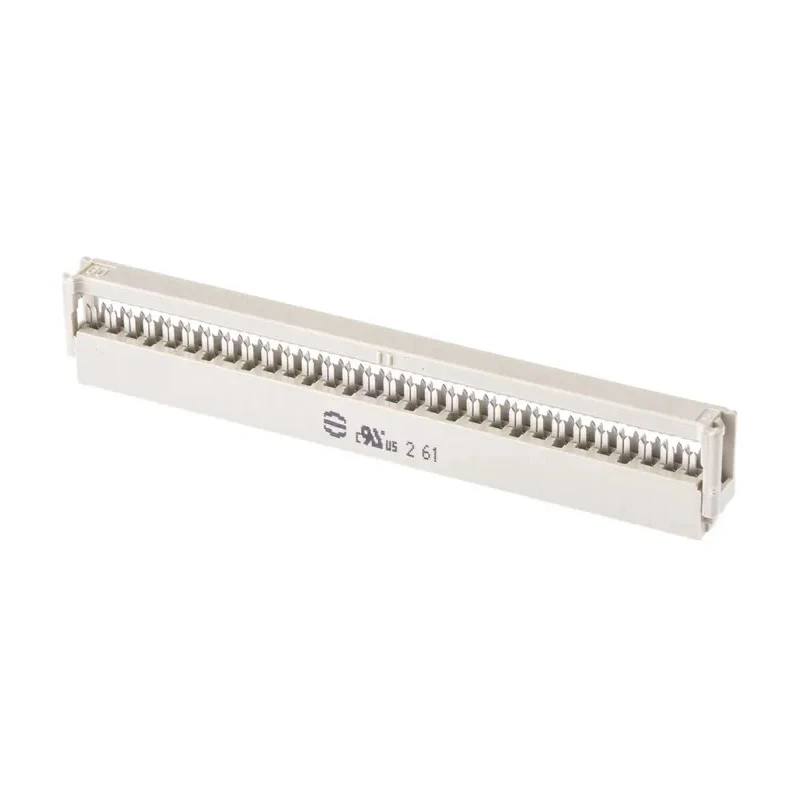

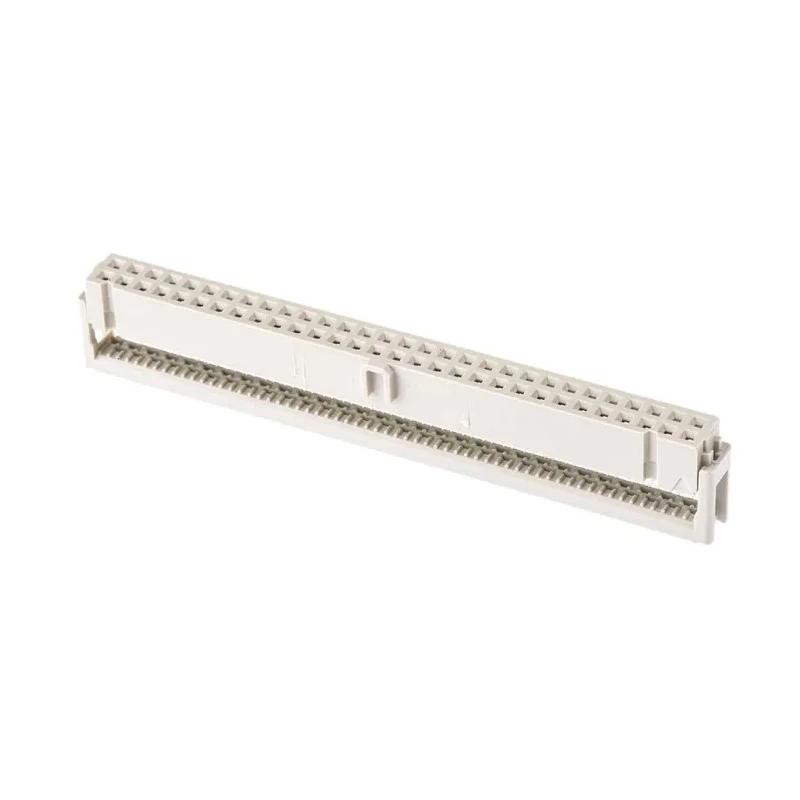

HARTING 60-Way IDC Connector Female for Cable, 2 Row, 2.5A, 320V AC, Gold Plated Contacts 09185606803

Free Delivery in India | Lowest Global Shipping Charges

HARTING 60-Way IDC Connector Female for Cable, 2 Row, 2.5A, 320V AC, Gold Plated Contacts 09185606803

Name: HARTING 60-Way IDC Connector Female for Cable, 2 Row, 2.5A, 320V AC, Gold Plated Contacts 09185606803
Brand: HARTING
SKU: 213171
Price: 6.92 USD
Availability: InStock



Category IDC Connector Brand HARTING Condition New

Specifications

Country of Origin	Switzerland
Voltage	320V ac
Brand	HARTING
Orientation	Right Angle
Current	2.5A
Mount Type	Cable
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	SEK 18
Termination Type	IDC
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	60
Contact Gender	Female
Connector Gender	Female
Shrouded/Unshrouded	Shrouded

Key Features

Features 60 contacts arranged in 2 rows for high-density connection.
Gold plating on contacts ensures reliable conductivity and corrosion resistance.
Copper alloy contacts housed in durable polybutylene terephthalate casing.
Designed for cable mounting with IDC termination type.
Operates reliably within temperature range from -55°C to 125°C.
Right angle orientation facilitates compact and secure cabling setups.
Complies with multiple UL, CSA, IEC, DIN, MIL, and NFC standards for quality and safety.
Manufactured in Switzerland to high quality standards.

Product Description

HARTING 09185606803 60-Way IDC Connector Female for Cable, 2 Row is a high-quality, shrouded IDC Connector designed for efficient and reliable cable connections in industrial and electronic applications. The connector features 60 gold-plated copper alloy contacts arranged in 2 rows with a 2.54mm pitch for high contact density.

With a current rating of 2.5A and voltage rating of 320V AC, this connector is suitable for a wide variety of power and signal transmission uses. The housing, made of polybutylene terephthalate, provides strength and thermal stability, supporting operation temperatures from -55°C up to 125°C.

The right-angle orientation and IDC termination type enable easy cable assembly and secure mechanical connection, enhancing production efficiency in automated and manual insertion processes. Gold plating on the contacts ensures excellent conductivity and durability over time.

Engineered and manufactured in Switzerland, this connector adheres to international standards including UL, CSA, IEC, DIN, MIL, and NFC, ensuring robust performance in demanding industrial, manufacturing, telecommunications, and automation environments.

60 contacts arranged in 2 rows with 2.54mm pitch. Gold-plated copper alloy contacts for superior conductivity. Polybutylene terephthalate housing for durability and thermal resistance. Right angle design for space-efficient cable routing.

Operational temperature range from -55°C to 125°C. Electrical ratings: 2.5A current, 320V AC voltage. IDC termination type facilitates fast and reliable cable assembly. Meets multiple stringent international quality and safety standards.

Manufactured in Switzerland ensuring quality assurance.

This connector is ideal for electronic component assembly, power and signal wiring in industrial equipment, automation devices, and telecommunications hardware. Its compatibility with automated production lines contributes to enhanced manufacturing throughput.
