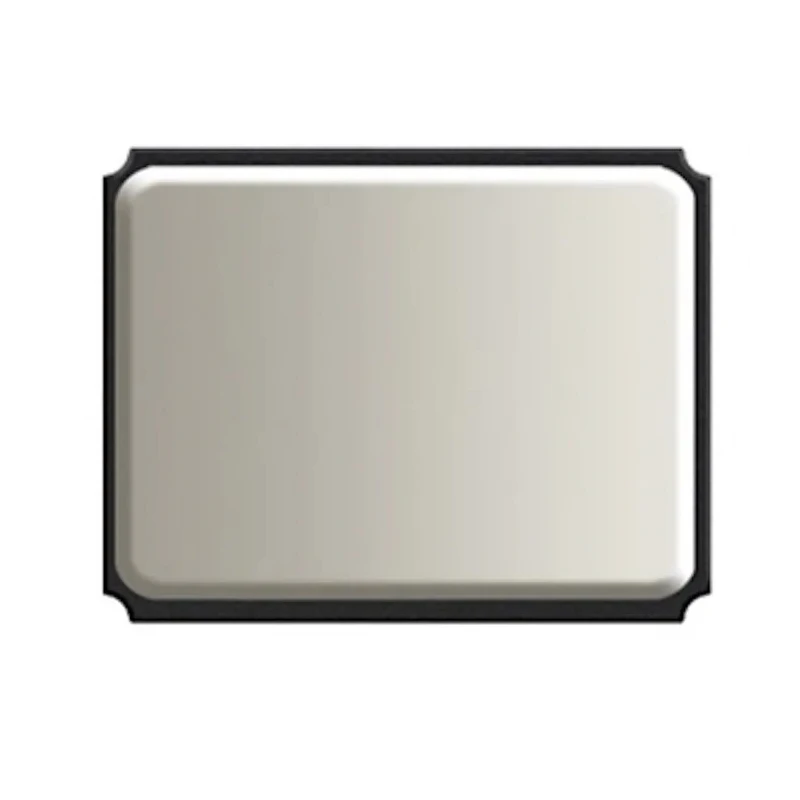

Abracon 16 MHz Crystal ±30 ppm Surface Mount Package 2.5mm x 2mm x 0.6mm ABM10AIG-16.000MHZ-4Z-T3

Abracon ABM10AIG-16.000MHZ-4Z-T3 is an advanced 16 MHz crystal unit designed for electronics requiring highly accurate frequencies with tight tolerance of ±30 ppm. Its compact surface mount package dimensions of 2.5 mm length, 2 mm width, and 0.6 mm height make it ideal for space-constrained PCB layouts. This crystal is suitable for a broad range of industrial and automotive applications including navigation systems, car entertainment, comfort control, test equipment, instrument panels, and medical electronics.

Constructed with a hermetically sealed ceramic base, the ABM10AIG series ensures excellent thermal stability and humidity resistance, meeting industrial-grade reliability standards. The unit supports load capacitance of 10 pF and exhibits a low series resistance of 80 Ω, optimizing oscillator performance and reducing signal distortion.

The device operates reliably across a wide temperature range from -40°C to 125°C, making it suitable for harsh environments. It complies with RoHS and REACH directives promoting eco-friendly manufacturing. Furthermore, packaging in tape and reel format facilitates efficient automated assembly processes.

Standard Frequency of 16 MHz ensures precise and stable oscillations. Surface Mount Device (SMD) package for easy PCB mounting and space saving. Load capacitance of 10 pF is ideal for oscillator circuits in various electronic designs.

Wide operating temperature range from -40°C to 125°C supports use in industrial settings. Low series resistance of 80 Ω minimizes signal loss and ensures performance. RoHS and REACH compliant, meeting environmental and safety standards.

Hermetically sealed ceramic package offers durability and precision in critical applications. Tape & reel packaging supports high-volume production assembly lines.

This crystal unit is manufactured in Taiwan under stringent quality controls. It is well-suited for Industrial, Automotive, Medical, Military, and Commercial electronics demanding precise timing components. Engineers and product designers will find the ABM10AIG-16.000MHZ-4Z-T3 a reliable choice for achieving stable frequency reference in compact form factors.
