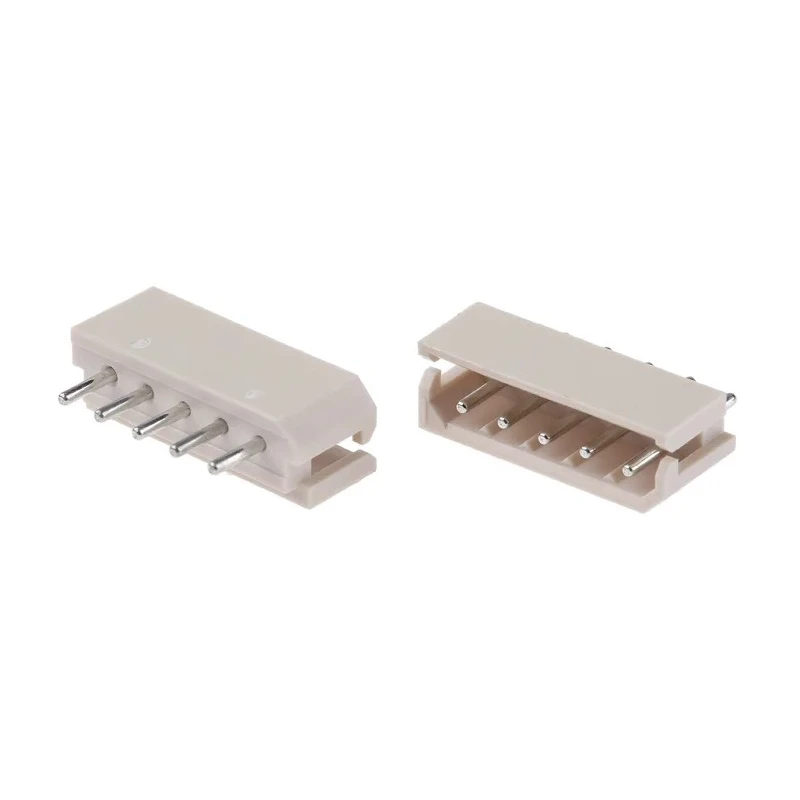

Molex SPOX Series Straight Through Hole Shrouded PCB Header, 5 Contacts, 2.5 mm Pitch, 1 Row, Nylon Housing 22-03-5055

Free Delivery in India | Lowest Global Shipping Charges

Molex SPOX Series Straight Through Hole Shrouded PCB Header, 5 Contacts, 2.5 mm Pitch, 1 Row, Nylon Housing 22-03-5055

Name: Molex SPOX Series Straight Through Hole Shrouded PCB Header, 5 Contacts, 2.5 mm Pitch, 1 Row, Nylon Housing 22-03-5055
Brand: Molex
SKU: 212095
Price: 0.31 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Molex
Orientation	Straight
Current	3A
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	SPOX
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.5mm
Contact Plating	Tin
Number of Contacts	5
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.5mm

Key Features

Features a shrouded design to ensure secure connections.
Housings made from durable nylon material for reliability.
Employs brass contacts plated with tin for effective conductivity.
Operates within a temperature range of -40°C to 105°C.
Designed for through hole mounting with solder termination type.
Offers 3A current rating and 250V voltage rating for robust performance.
Single row with 5 male contacts and a 3.5 mm tail pin length.
Polarized to prevent mismating and includes friction lock for secure connection.

Product Description

Molex 22-03-5055 SPOX Series Straight Through Hole Shrouded PCB Header is a high-quality wire-to-board connector designed for reliable and secure electronic connections. Featuring a 2.5 mm pitch and 5 male brass contacts plated with tin, this 1-row PCB header ensures efficient electrical performance and durability with its nylon housing.

Designed to operate safely from -40°C to 105°C, it supports currents up to 3A and voltages up to 250V, making it suitable for a variety of industrial, automotive, medical, networking, and consumer electronics applications. The shrouded design combined with polarization features prevents mismating, while the friction lock mechanism secures the mating connection.

This PCB header mounts through-hole and terminates via soldering, with a 3.5 mm tail pin length, ensuring robust mechanical and electrical connection to the PCB. Versions with swaged tails provide enhanced PCB retention. It mates with the Molex SPOX series 5264 crimp housings, supporting versatile wire-to-board configurations.

Its compact, low-profile design facilitates space-saving layouts on printed circuit boards, enabling efficient product assembly and maintenance in demanding environments. Shrouded design prevents contact damage and ensures polarity.

Nylon housing offers high durability and insulation. Brass contacts plated with tin deliver reliable conductivity. Suitable for high temperature and diverse electrical loads. Polarization and friction lock mechanisms enhance assembly reliability.

Through-hole mount type supports secure PCB integration. Male contact gender with solder termination ensures firm electrical connectivity. Used across a wide range of industrial, automotive, and consumer electronics sectors.

Compatible with Molex crimp housings for wire-to-board applications.

This Molex PCB Header is ideal for engineers and technicians seeking dependable connectors for complex electronics assemblies. Browse EnvMart's full range of Molex connectors and PCB accessories to find complementary components for your project requirements.
