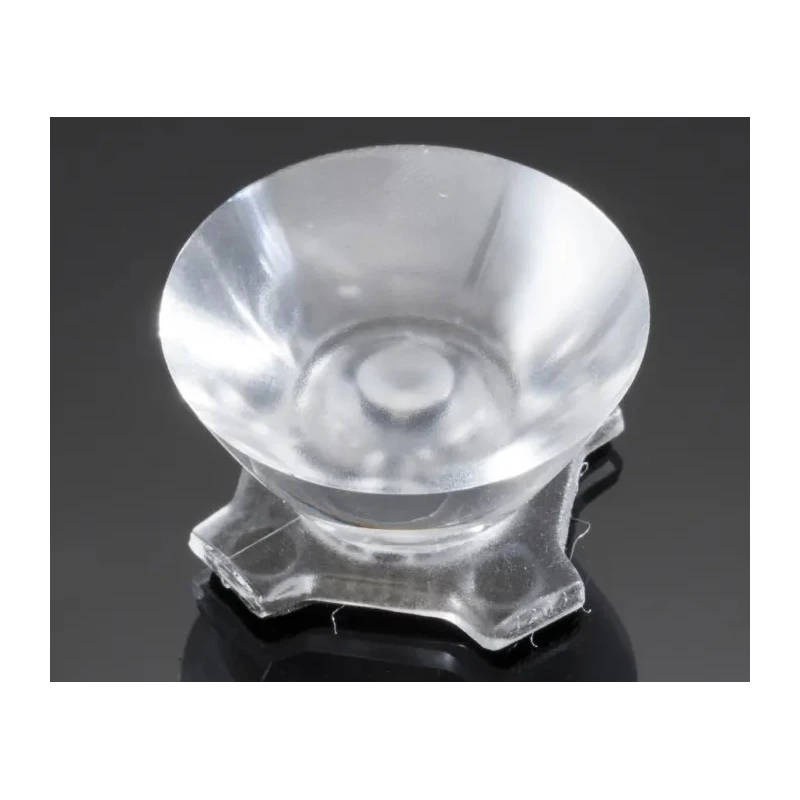

Ledil Heidi Series 1-Way LED Lens 7 to 14° Spot Beam Polymethyl Methacrylate Diffused Round Lens 21.6 mm CA11264_HEIDI-D

Ledil CA11264_HEIDI-D is a Heidi Series 1-Way LED Lens designed to provide a spot beam emission pattern with a tight viewing angle of 7 to 14 degrees. This optic component is made from optical grade polymethyl methacrylate (PMMA), which ensures high UV stability and excellent thermal resistance.

The lens is round with a diameter of 21.6 mm and a height of 11.7 mm, featuring a diffused style that helps produce uniform light output. It is engineered to be used with a single LED, making it ideal for precision lighting applications where focused light is required.

For installation, the lens is fastened to a heat sink using a PU foam adhesive tape of automotive grade, offering secure attachment and efficient thermal management. The product is optimized for compatibility with a wide array of LED chips including Cree XB-D, Lumileds LUXEON TX, Samsung LH351Z, Nichia NCSxx19A, OSRAM OSLON SSL, and Sharp Double Dome LEDs, among others.

The viewing angle can vary based on LED chip size, color, and position to achieve the desired lighting effect. The lens material is high-quality polymethyl methacrylate suitable for demanding applications. Its diffused lens style ensures uniform light distribution for spot beam use.

The 21.6 mm diameter and 11.7 mm height make it compact and versatile. Compatible with multiple LED manufacturers for broad application scope. Fastening is done using automotive grade PU foam adhesive for a secure fit.

This LED lens is well-suited for industrial and commercial lighting, electronics manufacturing, and specialized illumination in sectors such as automotive and architectural lighting.

EnvMart offers this precise LED lens under the Ledil brand, model CA11264_HEIDI-D, ideal for engineers and designers requiring reliable optical performance.
