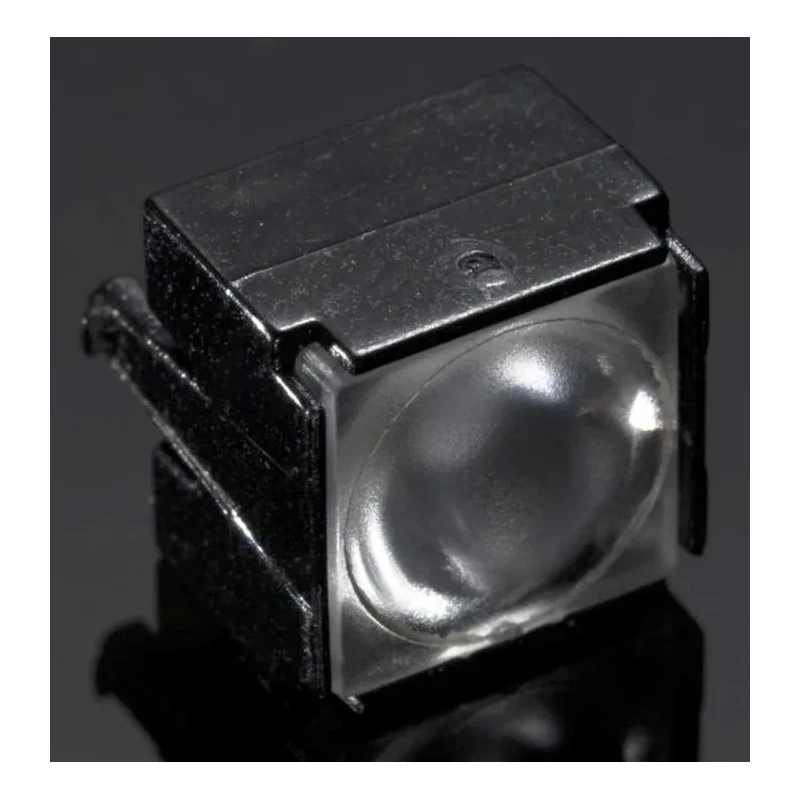

Ledil Larisa Series 1-Way LED Lens 50 to 70° Square Beam CP12947_LARISA-WW-CLIP16

Ledil CP12947_LARISA-WW-CLIP16 is a high-quality Larisa Series 1-Way LED Lens designed to deliver a 50 to 70° square beam emission pattern. Made from premium optical grade polymethyl methacrylate (PMMA), this lens offers excellent UV and temperature resistance ensuring durability in demanding lighting environments.

The LARISA series lenses have a precise 10 x 10 mm square footprint and the lens style is diffused to provide uniform light output. Designed for single LED use, the lens is black in color and clips on easily using the integrated clip-on fixing method, which simplifies installation and ensures secure mounting.

This lens is compatible with a variety of popular LEDs including Cree XB-D, Nichia NVSxx19A, Lumileds LUXEON Rebel ES, Nichia NCSxx19A, Lumileds LUXEON Rebel, OSRAM OSLON SSL 80, Lumileds LUXEON A, and OSRAM DURIS S5. Its compact dimensions of 7.5 mm height, 9.9 mm length, and 9.9 mm width make it ideal for precise beam shaping applications in industrial, electronic component manufacturing, and LED lighting systems.

The lens directs light efficiently to create a controlled and consistent square beam emission angle ranging from 50 to 70 degrees. Its robust construction from PMMA material enables it to maintain performance under UV exposure and elevated temperatures, making it suitable for use in various environments including commercial, manufacturing, and laboratory settings.

With its clip-on fixing style, the CP12947_LARISA-WW-CLIP16 avoids the need for adhesives or complex mounting hardware, thereby enhancing maintenance and replacement efficiency. This lens is part of Ledil's comprehensive LARISA series, known for quality and versatility in LED optical components.

The lens is made from optical grade polymethyl methacrylate for excellent UV and temperature resistance. Designed with a 10 x 10 mm square footprint and a diffused lens style for uniform light distribution. Clip-on fixing method allows easy installation and secure attachment.

Compatible with a range of LEDs including Cree XB-D, Nichia NVSxx19A, Lumileds LUXEON Rebel ES, and OSRAM OSLON SSL 80. The lens is black in color and supports a single LED per lens. Compact dimensions with height 7.5 mm, length 9.9 mm, and width 9.9 mm suit diverse applications.

Optimised for industrial, electronic, and LED lighting uses requiring precise beam shaping.

This Ledil LED lens is well suited for industrial, electronics manufacturing, electronic components production, and commercial lighting applications where controlled beam shaping and high durability are critical. It ensures consistent light quality and easy adaptability to various LED chips, supporting innovation and quality in LED lighting solutions.

EnvMart offers this Ledil LARISA series lens as a reliable solution for professional LED lighting projects, providing excellent performance backed by precise design and quality materials. Browse and discover more LED lenses and accessories for your application at EnvMart.
