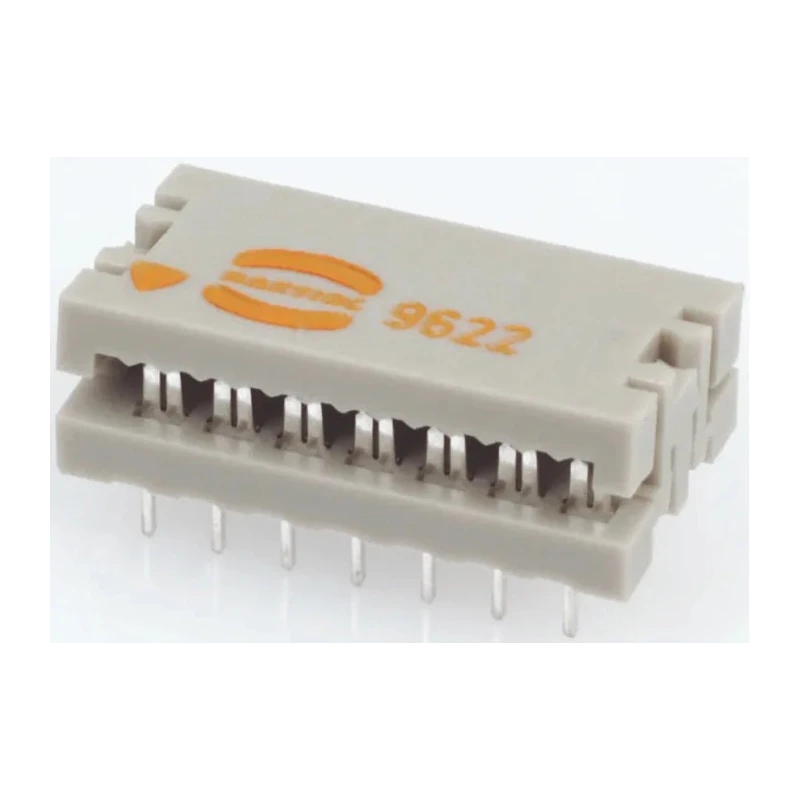

HARTING 14-Way 2-Row Shrouded IDC Connector Male for Cable, 500V SEK-17 Series 09170149622

HARTING 09170149622 14-Way 2-Row Shrouded IDC Connector Male for Cable is a robust electronic component designed to provide reliable connections in various industrial and electronic equipment. This connector features 14 contacts organized in two rows, designed to interface with cables using insulation displacement contact (IDC) termination for quick and secure assembly.

The connector houses nickel contacts plated with tin for corrosion resistance, placed within a durable thermoplastic resin housing that ensures mechanical strength. Operating voltage is rated at 500 volts with a current capability of 1 ampere, suitable for lower power signal and control circuits. Its maximum operating temperature reaches 125°C, making it adaptable to demanding environments ranging from -40°C through elevated temperature conditions.

The right-angle, male connector design allows convenient cable mounting and integration within space-constrained applications. The shrouded construction enhances protection, preventing accidental damage and improving safety during use. This IDC Connector is part of the SEK-17 series, recognized for quality and compliance with UL (E102079) and CSA (File 98267) standards, ensuring dependable performance and industry acceptance.

Ideal for industrial, manufacturing, automation, and electronic assembly uses, this connector supports PCB connections and wire harnesses with assurance of quality and longevity. Users can rely on HARTING’s engineering expertise with this component as a durable and versatile cable connector solution.

Features 14 contacts arranged in two rows to ensure reliable connectivity. Connector is male gender with a right angle orientation for cable mounting. Constructed with thermoplastic resin housing and nickel contacts plated with tin.

Supports current rating of 1A and voltage of 500 volts for standard applications. Termination type is insulation displacement contact (IDC) suitable for fast assembly. Operating temperature range from -40°C to 125°C for versatile environments.

Shrouded design provides protection and safeguards contacts. Suitable for industrial electronic and PCB wiring applications. Complies with UL, CSA approvals under file numbers E102079 and 98267. Explore our comprehensive selection of high-quality connectors and electronic components on EnvMart for your industrial and electronics needs.
