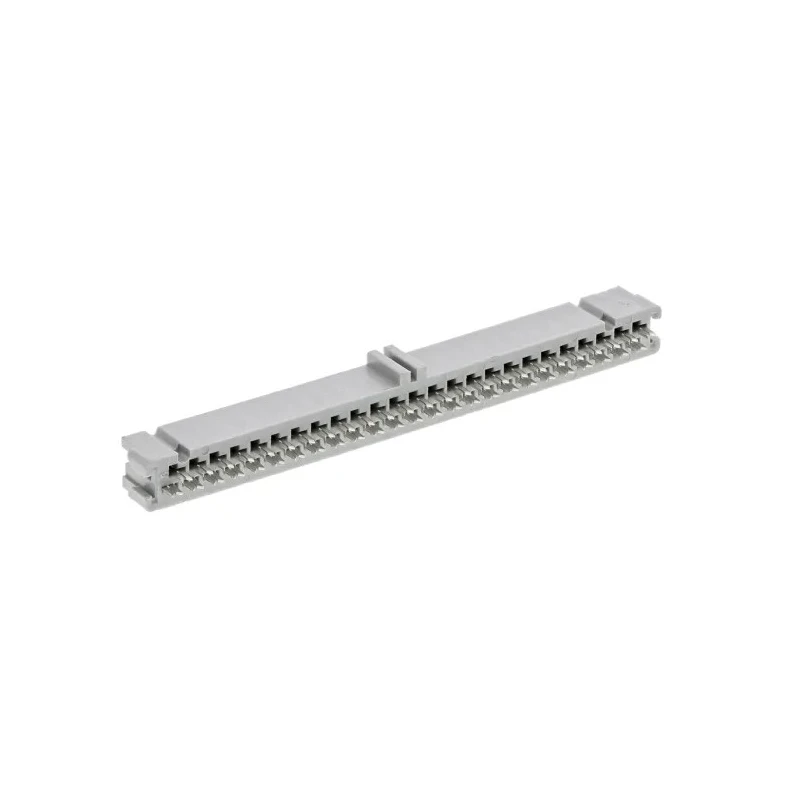

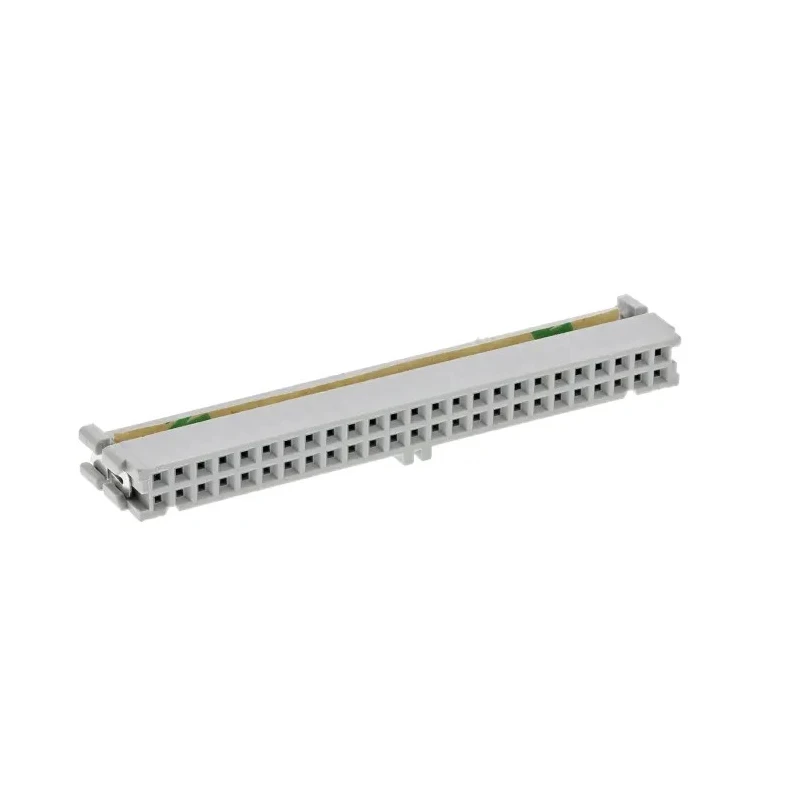

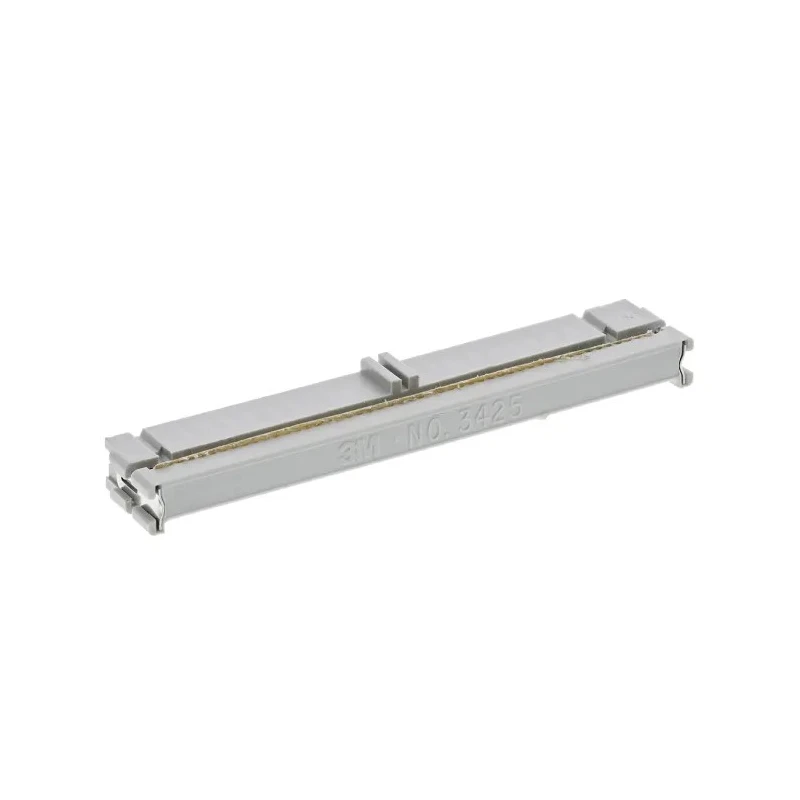

3M 50-Way IDC Connector, Female, 2 Row, Cable Mount, Right Angle, 1A, Pitch 12.7mm, Gold Plated Contacts 3425-6600

3M 3425-6600 IDC Connector Female is a high-quality cable mount connector designed for secure and reliable connections in electronic and electrical applications. Featuring 50 contacts in two rows, this connector provides robust signal and power interconnection, suitable for dense circuit integration where space economy is essential. The female design, coupled with right-angle mounting, facilitates ease of cable routing and optimal device layout.

With a current rating of 1A, the connector can handle moderate electrical loads without overheating, making it ideal for automation systems, electronic assemblies, and industrial controls. The connector employs a pitch of 12.7mm, accommodating standard IDC ribbon cables. It uses gold over nickel contact plating for enhanced conductivity and corrosion resistance, and shrouded housing for secure mating and cable retention.

Features 50 contacts arranged in two rows for robust connectivity. Female connector with IDC termination for convenient cable attachment. Supports a current rating of 1A for reliable performance. Right angle mounting optimizes use in space-constrained electronic designs.

Gold over nickel plated contacts ensure high conductivity and corrosion resistance. A pitch of 12.7mm facilitates integration with standard ribbon cables. Shrouded design enhances cable security and alignment. Operates efficiently within a wide temperature range from -55°C to 105°C.

Copper alloy contact material and PBT housing provide durability.

The device employs IDC termination, simplifying installation and minimizing assembly time while reducing the need for soldering. It is well-suited for industrial electronics, laboratory instrumentation, manufacturing control cabinets, and commercial devices requiring reliable cable interconnects.

Thanks to its construction from copper alloy contacts and polybutylene terephthalate (PBT) housing, the 3M 3425-6600 connector offers durability and stable performance even in demanding environments. Applications include automation systems, electronic device assemblies, and mechanical systems demanding secure, persistent terminations.
