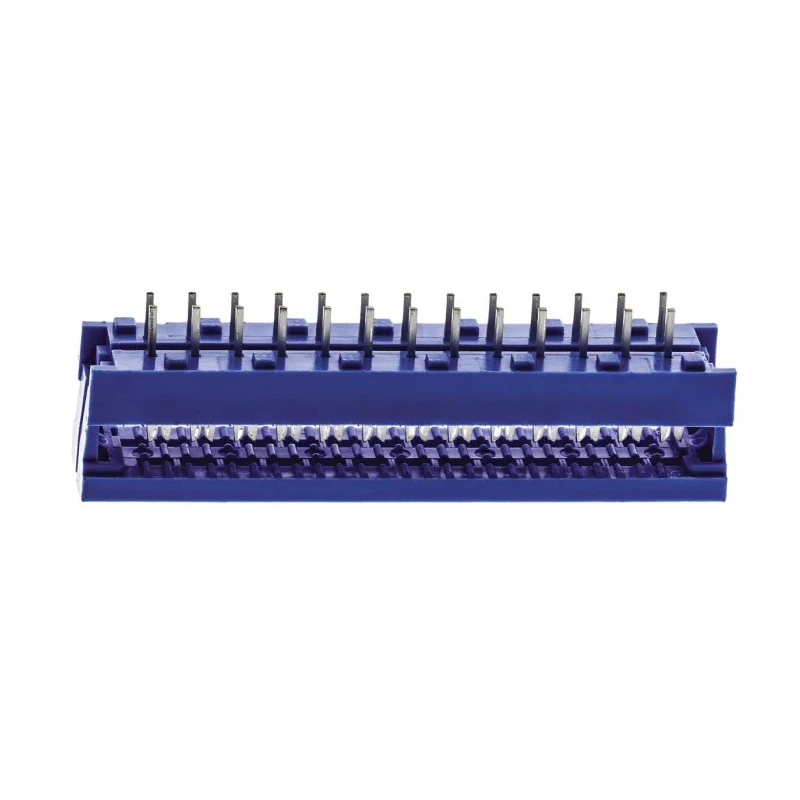

TE Connectivity 26-Way IDC Connector Male for Cable, 2 Row, Shrouded, 2.54 mm Pitch, 1A, Right Angle, Series 1658525-1

TE Connectivity 1658525-1 26-Way IDC Connector Male is a precision-engineered cable mount connector designed for robust signal and low-power interconnections. This right angle, 2-row shrouded connector is part of the trusted AMP-LATCH 622 series, widely used in electronics and industrial control systems requiring reliable flat cable connections.

It features 26 tin-plated beryllium copper alloy contacts arranged in two evenly spaced rows, with a standard 2.54 mm pitch to ensure precise alignment and smooth mating with compatible ribbon cable assemblies. Its shrouded, right angle design provides secure cable engagement and helps prevent misalignment during installation.

The connector’s housing is crafted from blue UL 94V-0 rated glass-filled thermoplastic, offering high thermal and mechanical durability. This material choice allows the device to perform reliably across a broad operating temperature range from -55°C to 125°C. The male IDC design simplifies assembly: cables can be terminated either before or after soldering the connector to a PCB, providing flexibility during manufacturing and maintenance.

Supporting a 1 A current rating and a voltage rating of 250 V, this connector is suitable for a wide range of signal and low-power supply applications. The tin-plated fork-style contacts ensure low contact resistance and excellent signal transmission, even in demanding environments. The AMP-LATCH 622 series is compatible with 26 to 28 AWG solid or stranded PVC insulated ribbon cables, making it a popular choice for internal wiring of electronic devices, industrial automation panels, and control equipment.

Installation is further simplified by its right angle orientation, making it ideal for use in applications where PCB height is restricted or side-entry cable feed is required. The connector accommodates insulation displacement connection (IDC), enabling fast, reliable termination without the need for wire stripping or soldering. This design helps automate assembly and reduces installation time in large volume productions.

Key use cases include harnessing for industrial control systems, instrumentation, telecommunication racks, and embedded computing modules. With its robust design and quality materials, the TE Connectivity 1658525-1 ensures reliable electrical connections across various professional environments.
