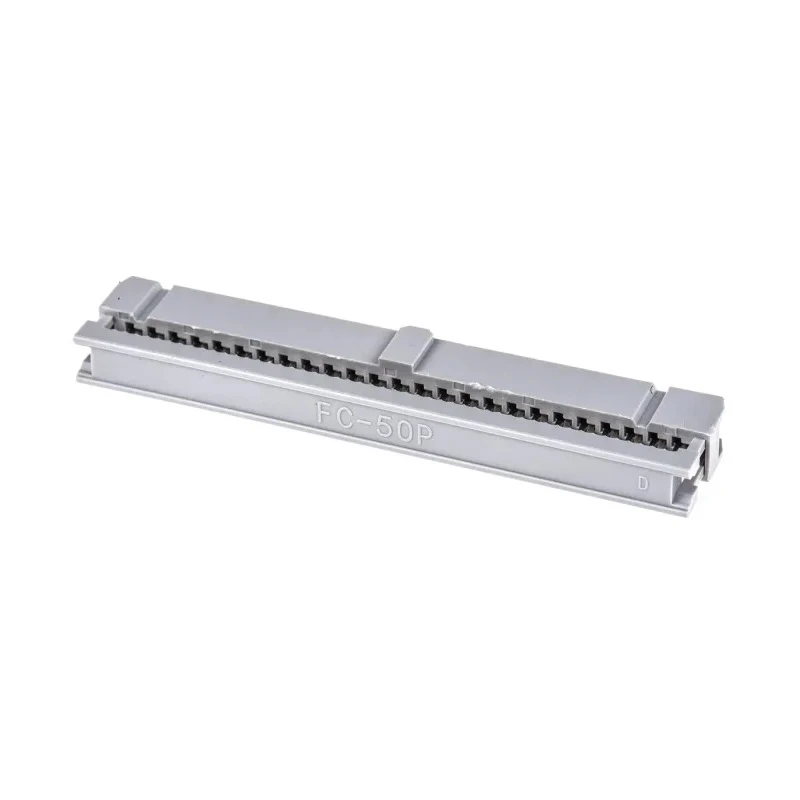

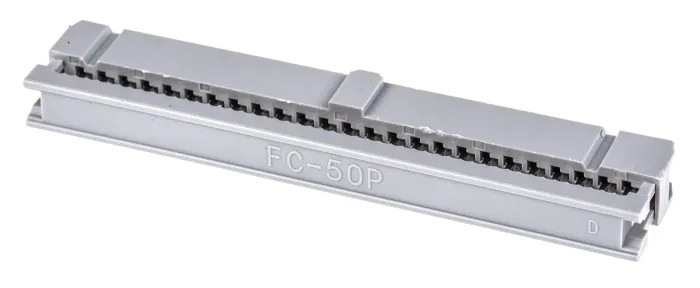

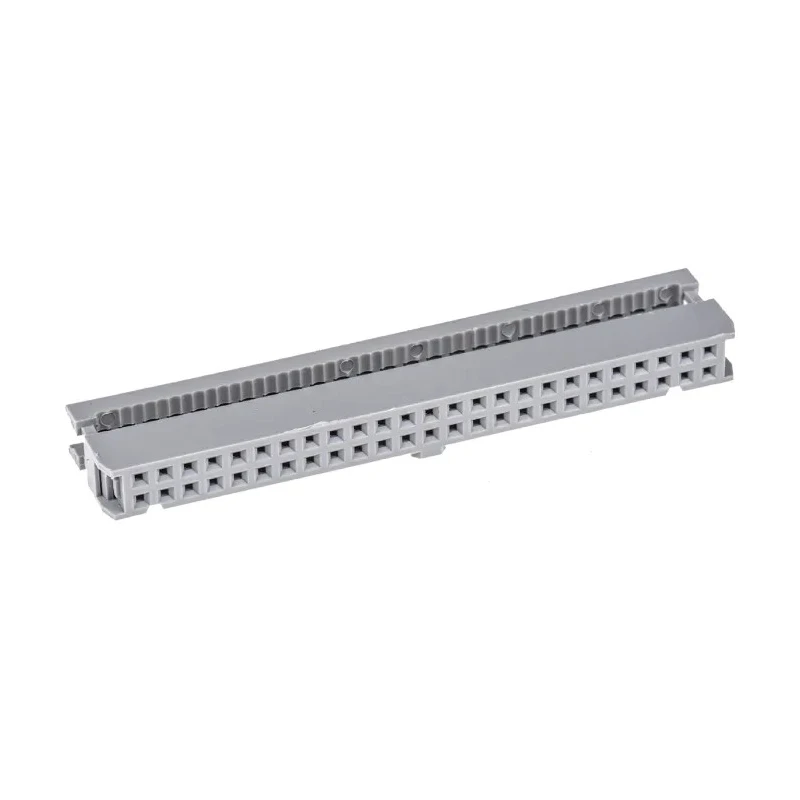

ASSMANN WSW 50-Way IDC Connector Female for Cable, 2 Row, Shrouded, 250V AC, 1A, Pitch 2.54mm, Right Angle AWP 50-7240-T

ASSMANN WSW AWP 50-7240-T is a 50-way IDC connector designed for ribbon cable applications, featuring a female shrouded configuration and a two-row contact layout. This connector supports cable mounting with a right-angle orientation, making it ideal for space-constrained electronics, PCBs, and wiring harness solutions.

Engineered for reliable performance, the connector supports up to 1A current and 250V AC operating voltage, making it suitable for a wide range of signal and power transfer requirements. Its 2.54mm pitch ensures compatibility with standard ribbon cables and enables straightforward IDC termination, reducing assembly complexity in industrial and commercial installations.

The connector is constructed with gold over nickel-plated brass contacts for robust electrical connectivity and low contact resistance, while the housing is made from high-grade polybutylene terephthalate (PBT, UL94V-0 rated) for enhanced impact and flame resistance. This ensures durability and safety in demanding environments, including industrial automation, control panels, and electronic equipment.

ASSMANN WSW AWP 50-7240-T offers secure shrouding and central polarization features, preventing incorrect mating and ensuring stable connections. It is capable of operating in a wide temperature range from -55°C to 105°C, which extends its usability across harsh industrial and laboratory conditions.

Typical applications include electronic circuit interconnects, data transfer in instrumentation systems, communication interfaces, and custom PCB assembly where multiple wire signals must be transmitted efficiently and securely. The right-angle cable mount orientation supports flexible routing and compact assembly, commonly required in automation, panel wiring, and industrial control systems.

The connector meets industry standards for flame retardancy and reliability. Its robust contact arrangement and material choices help prevent connection failures and support high-frequency use. Its shrouded configuration provides additional mechanical protection and guidance to simplify installation.

For engineers and installers, the AWP 50-7240-T brings ease of use, repeatable ribbon cable assembly, and electrical performance trusted by industrial, laboratory, and electronic manufacturing sectors.
