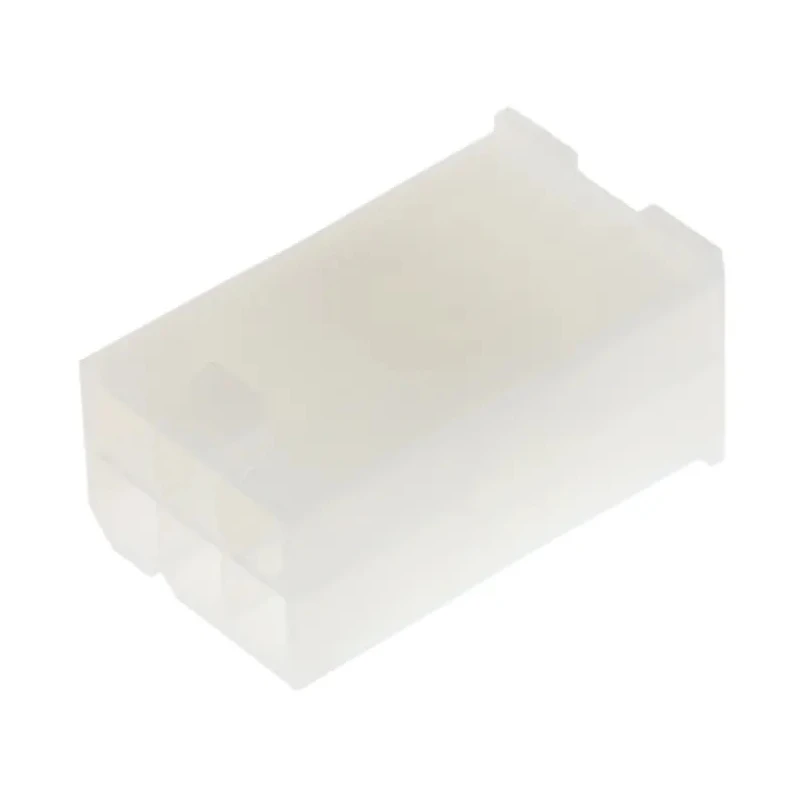

Molex 5559 Male Connector Housing 4.2 mm Pitch 6 Way 2 Row Straight Nylon Series 39-01-3063
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 13.8mm |
| Width | 9.6mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | 5559 |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| For Use With | Mini-Fit Jr. Plug |
| Number of Contacts | 6 |
| Connector Gender | Male |
Key Features
- The housing is made of durable nylon material known for insulation and fire-retardant properties.
- It supports a current rating of up to 13A suitable for high power industrial and automotive applications.
- Designed for cable mounting with an audible click for secure locking and mating confirmation.
- Operates reliably in harsh temperature conditions from -40°C to +105°C.
- Compatible with Mini-Fit Jr. plug series for flexible wire-to-wire and wire-to-board connections.
- Lightweight at approximately 1.92 grams, reducing system strain.
- Includes built-in panel mount ears for easy and secure installation.
- Meets UL94V-0/UL94V-2 flame retardancy standards ensuring safety and reliability.
Product Description
Molex 39-01-3063 male connector housing is a high-quality component designed for electrical and electronic power connector applications, featuring a 4.2 mm pitch and 6-way contact arrangement across 2 rows in a straight orientation.
Constructed from fire-retardant nylon, this connector housing provides excellent insulation and self-extinguishes in under 30 seconds to ensure safety in demanding environments. It supports a maximum voltage of 600V and a current rating of 13A, making it ideal for high power applications in automotive manufacturing, robotics, telecommunications, and industrial equipment.
The housing is designed for cable mount use and incorporates a positive locking mechanism that guarantees secure mating and prevents accidental disconnections due to shock or vibration, confirmed by an audible click during connection assembly. Built-in panel mount ears facilitate easy installation and robust mechanical support.
This component reliably operates within wide temperature ranges, from -40°C to +105°C, ensuring functionality in harsh industrial conditions. It is compatible with Mini-Fit Jr. plug series Connectors for versatile wire-to-wire and wire-to-board configurations, providing designers with flexible interconnection options.
The nylon housing provides insulation and fire-retardant properties. Low weight minimizes mechanical stress on assemblies. Reliable mechanical and electrical connection with audible mating confirmation. Suitable for high current and voltage applications.
Wide operational temperature range supports harsh environment use cases. Industry applications include automotive, robotics, telecom networks, and industrial automation. Compliant with UL94V-0 and UL94V-2 flame retardancy standards.
Easy integration via built-in mounting ears.
In summary, this Molex 5559 series connector housing provides industrial grade reliability, flexibility, and safety for a wide range of demanding electrical interconnect applications. Explore additional Molex power and PCB connector solutions in the Electronics & Electricals category at EnvMart for your specialized needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a maximum current rating of 13A, making it suitable for high power applications.
This connector housing operates reliably within a temperature range of -40°C to +105°C.
The housing is constructed from nylon, which provides insulation and fire-retardant properties.
It features a 6-way contact arrangement across 2 rows.
Yes, it is compatible with the Mini-Fit Jr. plug series for flexible wire-to-wire and wire-to-board connections.
The housing has a length of 13.8mm and a width of 9.6mm.
It is designed for cable mounting and includes built-in panel mount ears for easy installation.
The connector housing is designed in a straight orientation.
It supports a maximum voltage of 600V, suitable for various applications.
It meets UL94V-0 and UL94V-2 flame retardancy standards, ensuring safety in demanding environments.
It is suitable for applications in automotive manufacturing, robotics, telecommunications, and industrial equipment.
Yes, it incorporates a positive locking mechanism that guarantees secure mating and prevents accidental disconnections, confirmed by an audible click.
