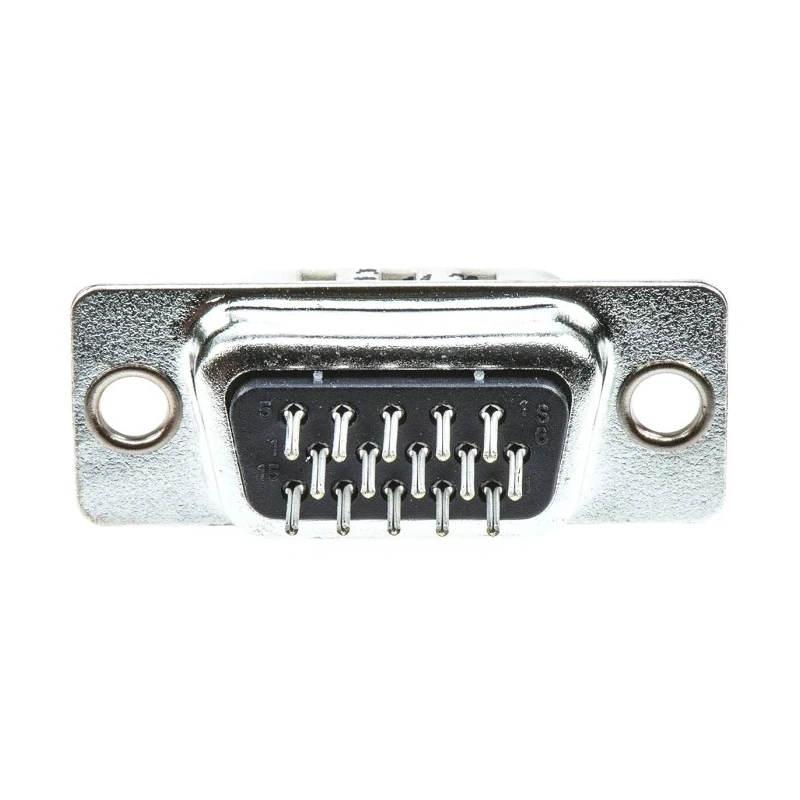

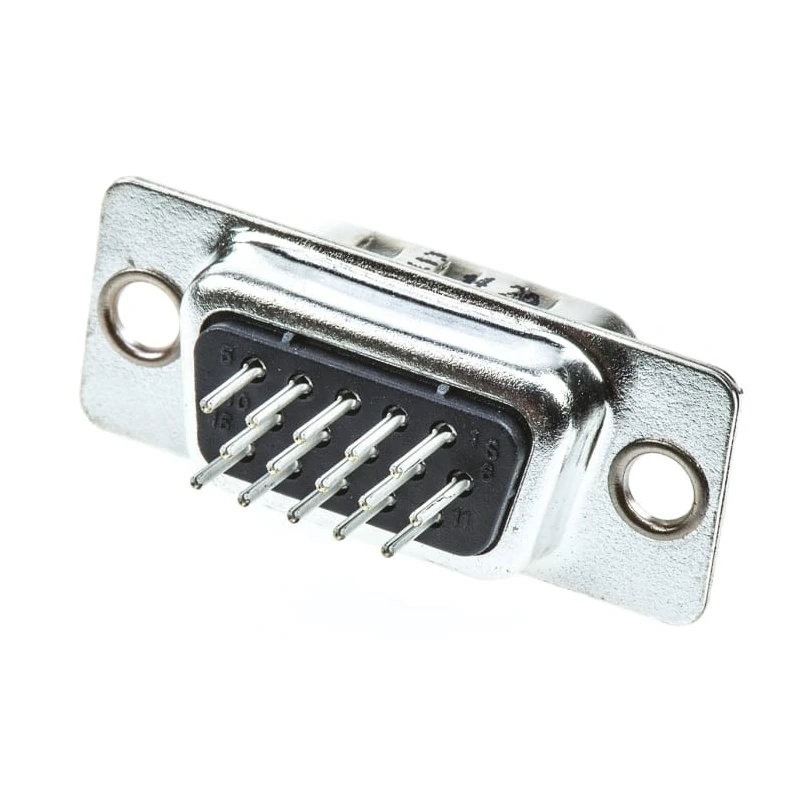

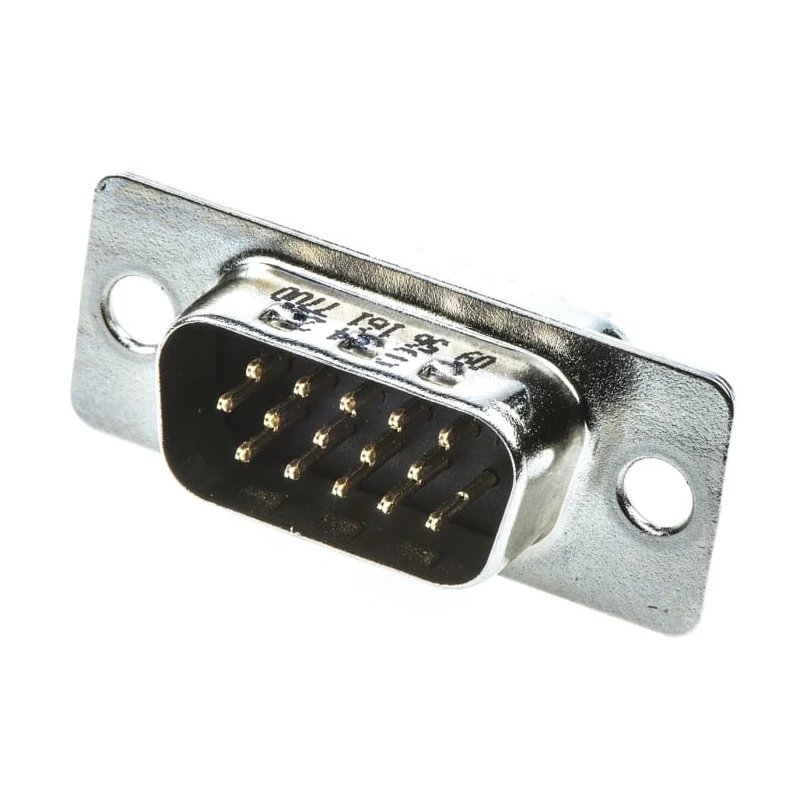

HARTING 15 Way Straight 2.29 mm Pitch Through Hole D-Sub Connector 09561617700

Free Delivery in India | Lowest Global Shipping Charges

HARTING 15 Way Straight 2.29 mm Pitch Through Hole D-Sub Connector 09561617700

Name: HARTING 15 Way Straight 2.29 mm Pitch Through Hole D-Sub Connector 09561617700
Brand: HARTING
SKU: 204273
Price: 3.49 USD
Availability: InStock



Category D-Sub Connector Brand HARTING Condition New

Specifications

Country of Origin	China
Voltage	1000V
Brand	HARTING
Orientation	Straight
Current	2A
Mount Type	Through Hole
Housing Material	Steel
Contact Material	Copper Alloy
Series	0956
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Pitch	2.29mm
Contact Plating	Gold
Number of Contacts	15
Contact Gender	Male
Connector Type D	D-Sub
D-Sub Shell Size	DS-1
HARTING 0956 15 Way Straight 2.29 mm Pitch Through Hole D-Sub ConnectorBrand	HARTING

Key Features

Features 15 contacts with a current rating of 2A each.
Constructed with a steel housing and gold-plated copper alloy contacts for corrosion resistance.
Supports voltage up to 1000V for demanding applications.
Operates reliably within a temperature range of -55°C to 105°C.
Designed with a straight orientation and solder termination type for secure mounting.
Includes a male contact gender with stamped pins and tinned metal shell.
Metal shell has dimples and two 3.05 mm mounting holes for robust assembly.
Ideal for industrial, electronic, and power connector applications requiring high contact density.

Product Description

HARTING 09561617700 is a 15 way straight D-Sub connector designed with a 2.29 mm pitch and through hole mounting for PCB assembly. The connector features a robust steel housing and gold-plated stamped male copper alloy contacts, providing excellent electrical performance and corrosion resistance.

This high density D-Sub connector exceeds the contact capacity of standard subminiature D connectors by approximately 70%, enhancing connection reliability while maintaining a compact size. The connector's tinned metal shell includes dimples and two mounting holes of 3.05 mm diameter to secure mounting in industrial environments.

Rated to carry 2 amperes of current and support voltages up to 1000 volts, the connector performs well in demanding electronic components, power and computing connectors assemblies. Its operating temperature range from -55°C to 105°C allows for dependable use in a broad variety of environmental conditions.

The straight orientation and solder termination type ensure secure electrical and mechanical connections on printed circuit boards. Male stamped pins provide stable signal transmission. Manufactured in China, this connector belongs to the Harting 0956 series known for durability and high performance.

15 contacts with copper alloy material and gold plating. Steel housing with metal shell featuring dimples and mounting holes. 2.29 mm pitch for high density pin configuration. Rated current of 2A and voltage of up to 1000V.

Operating temperature range from -55°C to 105°C. Straight orientation and solder termination for PCB mounting.

This product is well-suited for industrial electronics, power connector applications, automation systems, and complex computing hardware installations. The connector facilitates secure electrical connections, contributing to enhanced reliability and performance in electronic assemblies. Explore the full range of D-Sub Connectors on EnvMart to find compatible solutions for your technical requirements.
