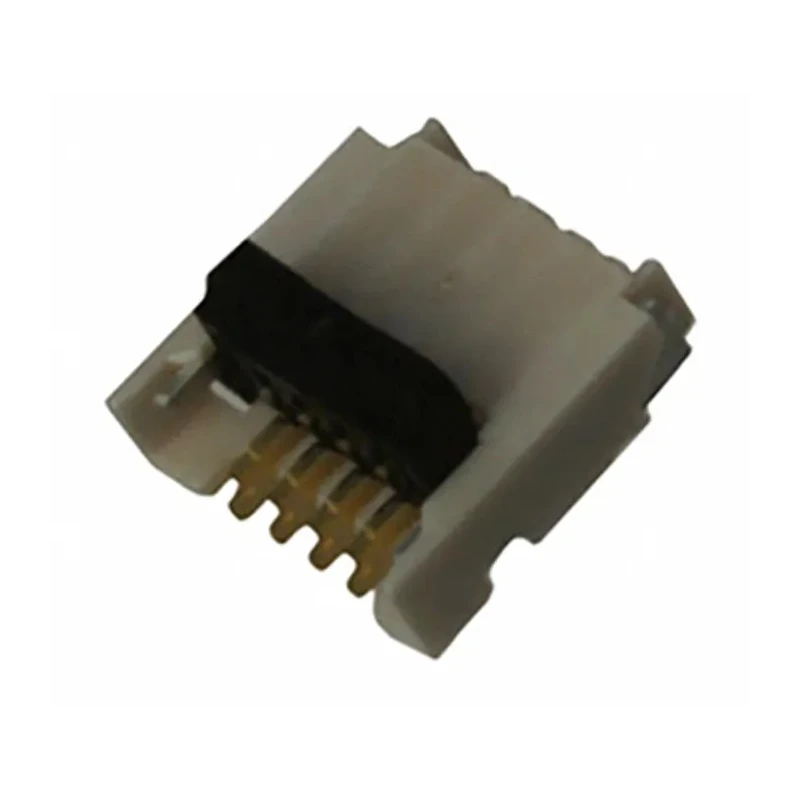

Molex 0.5 mm Pitch 4 Way Right Angle Female FPC Connector Surface Mount Solder 5034800400
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Right Angle |
| Current | 300mA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | 503480 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Connector Gender | Female |
| Contact Position | Dual |
Key Features
- Connects four contacts with phosphor bronze material ensuring durability.
- Features a 0.5 mm pitch and supports a current rating of 300mA.
- Right angle orientation with dual contact position for flexible board mounting.
- Includes a locking mechanism for secure connector engagement.
- Gold over nickel contact plating provides excellent conductivity and corrosion resistance.
- Constructed with a liquid crystal polymer housing for robust performance.
- Operates within a temperature range from -40°C to 85°C for versatile applications.
Product Description
Molex 5034800400 0.5 mm Pitch 4 Way Right Angle Female FPC Connector is a high-quality surface mount connector designed for electronic assembly requiring compact and reliable connections.
This FPC Connector features four phosphor bronze contacts with gold over nickel plating to ensure excellent conductivity and long-lasting performance. Its right angle design enables efficient routing on printed circuit boards, while dual contact positioning offers superior electrical contact reliability.
The connector is encased in a liquid crystal polymer housing, providing mechanical strength and resistance to thermal and chemical stresses. It supports a current of up to 300mA and a voltage of 50Vrms, making it suitable for low power signal applications.
The operating temperature range from -40°C to 85°C allows usage in diverse industrial, electronic manufacturing, and laboratory environments. The locking mechanism ensures secure cable retention and prevents accidental disconnection.
Ideal for use in compact electronic devices, instrumentation, industrial control systems, and communication equipment, this Molex connector supports efficient and high-density PCB designs.
Four contacts made of durable phosphor bronze material. 0.5 mm pitch spacing enabling compact circuit layouts. Right angle orientation for versatile printed circuit board configurations. Gold over nickel plating for corrosion resistance and conductivity.
Liquid crystal polymer housing for robustness. Locking mechanism for secure mating and connection integrity. Temperature range from -40°C to 85°C suitable for many industrial applications. Explore our wide range of electronic components and connectors at EnvMart for reliable industrial-grade parts to suit your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 300mA.
It features a pitch size of 0.5mm, enabling compact circuit layouts.
The maximum operating temperature is 85°C, making it suitable for various industrial applications.
The contacts are made of phosphor bronze, which ensures durability and reliable electrical performance.
This connector is designed for surface mounting, allowing for efficient PCB integration.
Yes, it includes a locking mechanism to ensure secure connector engagement and prevent accidental disconnection.
It has a right angle orientation, which facilitates flexible board mounting and routing on printed circuit boards.
The housing is constructed from liquid crystal polymer, providing mechanical strength and resistance to thermal and chemical stresses.
This model features four contacts, ensuring efficient connectivity for low power signal applications.
It operates at a voltage rating of 50Vrms, suitable for low power signal applications.
The minimum operating temperature is -40°C, allowing it to function in diverse environments.
This connector utilizes solder termination, which is standard for secure electrical connections.
