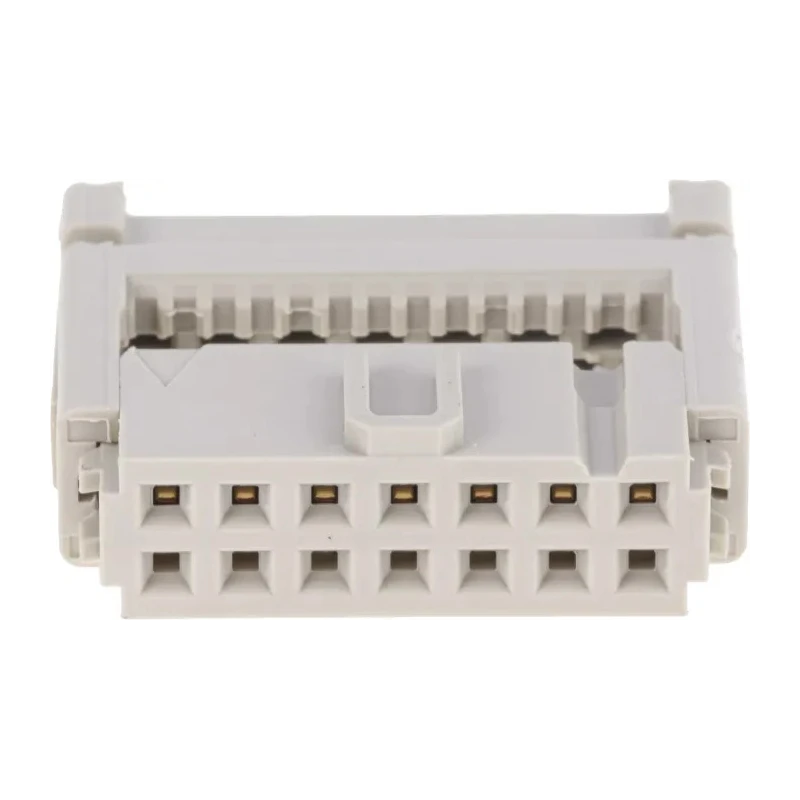

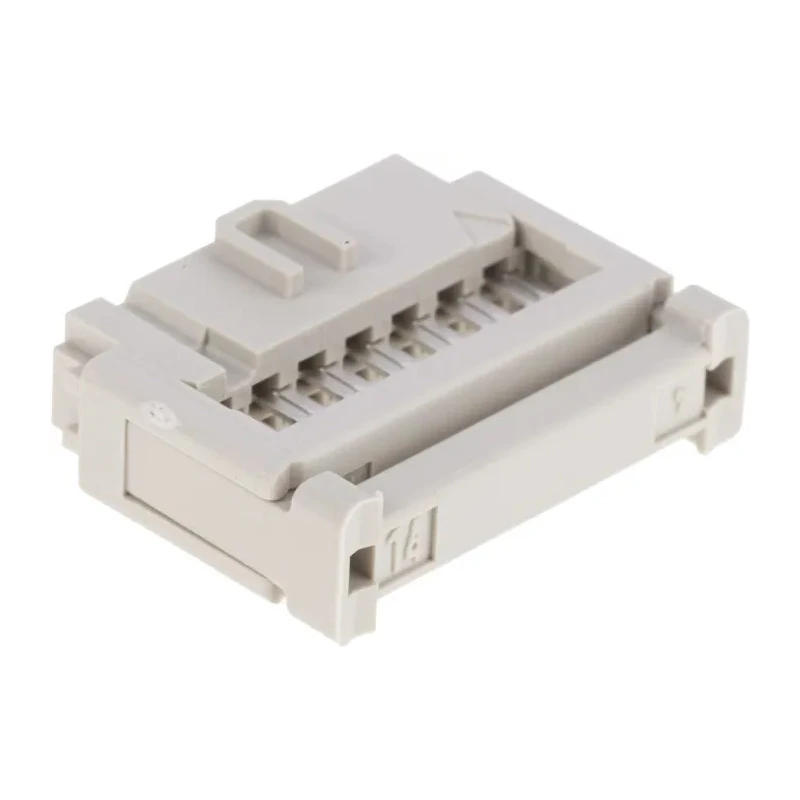

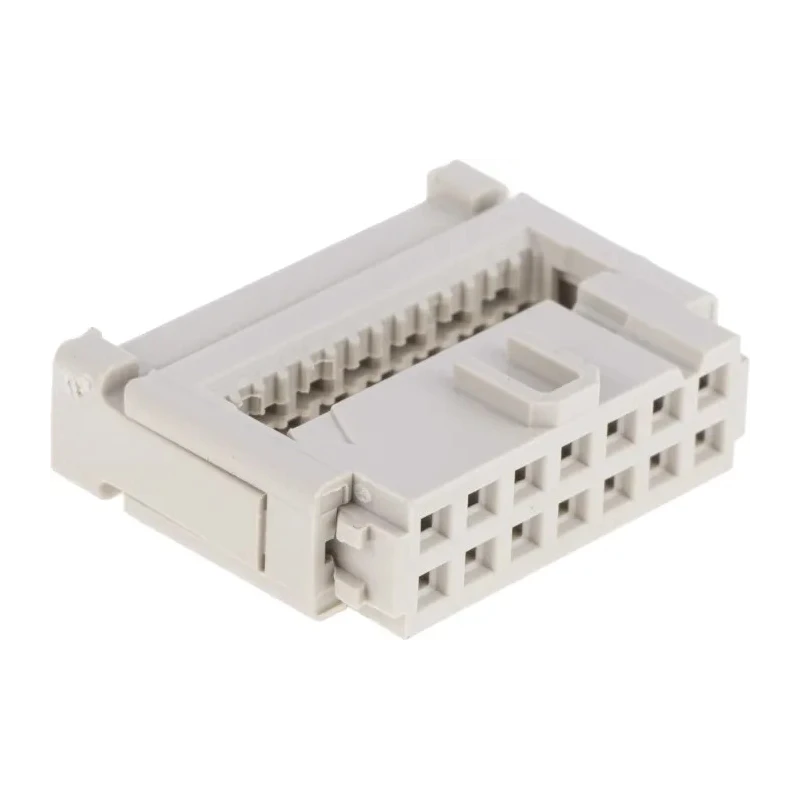

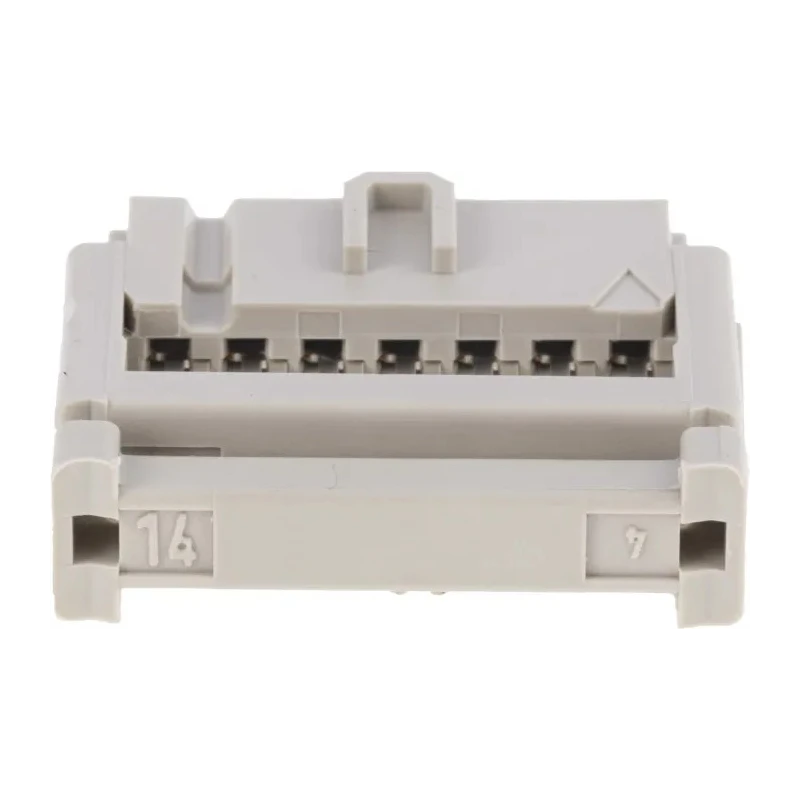

HARTING 14-Way IDC Connector Female Cable Mount, 2-Row, 320V AC, 2.5A, Gold Plated Contacts 09185146813

Free Delivery in India | Lowest Global Shipping Charges

HARTING 14-Way IDC Connector Female Cable Mount, 2-Row, 320V AC, 2.5A, Gold Plated Contacts 09185146813

Name: HARTING 14-Way IDC Connector Female Cable Mount, 2-Row, 320V AC, 2.5A, Gold Plated Contacts 09185146813
Brand: HARTING
SKU: 184000
Price: 3.03 USD
Availability: InStock



Category IDC Connector Brand HARTING Condition New

Specifications

Country of Origin	India
Voltage	320V ac
Brand	HARTING
Orientation	Right Angle
Current	2.5A
Mount Type	Cable
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	SEK 18
Termination Type	IDC
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	14
Contact Gender	Female
Connector Gender	Female
Shrouded/Unshrouded	Shrouded
3M 14-Way IDC Connector Socket for Cable Mount, 2-RowBrand	3M

Key Features

The connector supports 14 contacts arranged in 2 rows for versatile wiring solutions.
It features a shrouded, right-angle design with gold-plated copper alloy contacts for reliable conductivity.
The connector supports a current rating of 2.5A and voltage up to 320V AC.
The housing is made of durable polybutylene terephthalate ensuring mechanical stability and heat resistance.
Operating temperature range is from -55°C to 125°C for harsh environment compatibility.
Termination is by IDC (Insulation Displacement Contact) type, facilitating quick and secure cable connection.
Contact plating with gold enhances corrosion resistance and signal quality.
The product complies with multiple industrial standards including DIN41651 and MIL-C 83503.

Product Description

HARTING 09185146813 14-Way IDC Connector Female for Cable, 2-Row is an advanced connector featuring 14 contact points in a robust 2-row arrangement. Designed for cable mounting, it offers secure and efficient electrical connections in demanding industrial environments.

The connector's copper alloy contacts are gold plated, providing excellent conductivity and corrosion resistance. Its polybutylene terephthalate housing ensures durability and performance at elevated temperatures from -55°C to 125°C. Rated for 2.5A current and 320V AC voltage, this connector suits applications requiring stable power and signal transmission.

The IDC termination type facilitates fast installation with insulation displacement technology, ensuring reliable contact without soldering. The right-angle orientation and shrouded design with strain relief clamp optimize cable management and protection.

HARTING’s SEK 18 series connector meets strict international standards such as DIN41651, IEC 603-13, MIL-C 83503, and UL approvals, making it suitable for industrial, laboratory, manufacturing, and electronic component assembly sectors.

The connector supports 14 contacts arranged in 2 rows for versatile wiring solutions. Features shrouded female contacts with gold plating on copper alloy material for superior conductivity. Rated for 2.5 Amp current and 320V AC voltage with operating temperatures from -55°C to 125°C.

Housing made from polybutylene terephthalate ensures heat resistance and robustness. Includes strain relief clamp for secure cable attachment. Termination type is IDC for rapid and secure wire installation. Right-angle cable mount orientation facilitates efficient space utilization.

Conforms to multiple industry standards including MIL-C 83503 and DIN EN 60603-13. Ideal for use in industrial automation, electronics manufacturing, and laboratory equipment. Reliable and durable connector complying with international quality standards.
