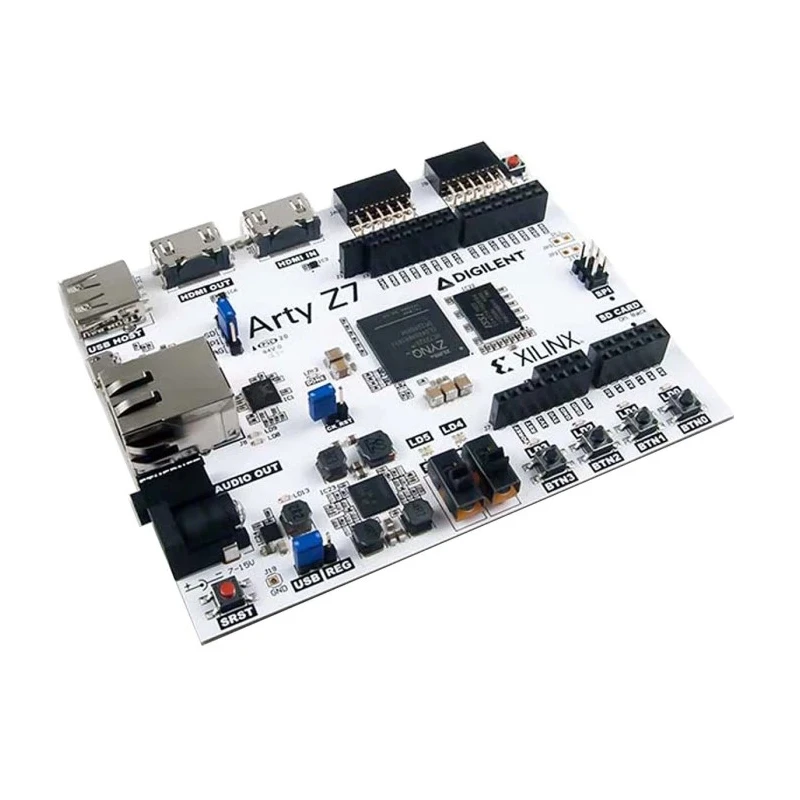

Digilent Arty Z7-20 APSoC Zynq-7000 Development Board 650MHz Dual ARM Cortex-A9 with Artix-7 FPGA 410-346-20

Name: Digilent Arty Z7-20 APSoC Zynq-7000 Development Board 650MHz Dual ARM Cortex-A9 with Artix-7 FPGA 410-346-20
Brand: Digilent
SKU: 94254
Price: 460.7 USD
Availability: InStock



Category Microcontroller Development Tool Brand Digilent Condition New

Specifications

Country of Origin	India
Brand	Digilent
Processor	650MHz dual ARM Cortex-A9 core
Interfaces	USB or +7V to +15Vdc via barrel jack
Standards/Approvals	RoHS
Kit Classification	Development Board
Kit Name	Arty Z7-20 APSoC Zynq-7000
Processor Family Name	Cortex
High-bandwidth peripheral controllers	1G Ethernet, USB 2.0, SDIO
Low-bandwidth peripheral controller	SPI, UART, CAN, I²C
Look-up Tables (LUTs)	53200
Flip-flops	106400
Block RAM	630KB
Clock Management Tiles	4
Available Shield I/O	49

Key Features

Integrates Xilinx Zynq-7000 XC7Z020-1CLG400C AP SoC with dual-core ARM Cortex-A9 processor.
Offers 53200 look-up tables and 106400 flip-flops for programmable logic.
Includes 630KB block RAM and 4 clock management tiles for advanced designs.
Provides 49 available shield I/O pins and supports multiple peripheral controllers.
Equipped with 512MB DDR3 SDRAM and 16MB Quad-SPI Flash memory onboard.
Supports programming via JTAG, Quad-SPI Flash, or microSD card interfaces.
Features 10/100/1000 Ethernet, USB 2.0, SDIO, SPI, UART, CAN, and I²C interfaces.
Includes HDMI sink and source ports and PWM driven mono audio output.

Product Description

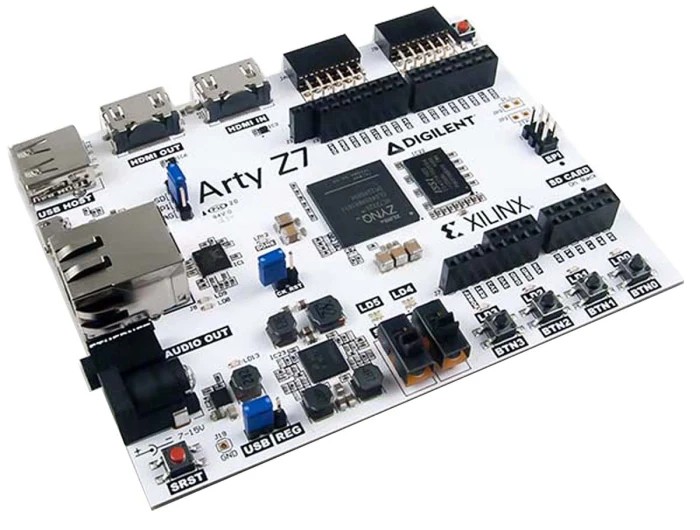

Digilent 410-346-20 Arty Z7-20 APSoC Zynq-7000 Development Board combines a high-performance 650MHz dual ARM Cortex-A9 core with Artix-7 FPGA logic, forming an efficient platform for embedded system development and programmable logic applications.

The board includes a large programmable fabric with 53200 look-up tables and 106400 flip-flops, along with 630KB block RAM and four clock management tiles, enabling complex hardware designs. It provides 49 shield I/O pins, supporting broad peripheral connectivity for various development needs.

Memory features include 512MB of DDR3 SDRAM with a 16-bit bus operating at 1050Mbps and 16MB of Quad-SPI Flash memory, both critical for robust embedded applications.

Multiple high-bandwidth peripheral controllers like 1 Gbps Ethernet, USB 2.0, and SDIO are onboard, complemented by low-bandwidth interfaces such as SPI, UART, CAN, and I²C, allowing versatile communication protocols.

Programming flexibility is offered through JTAG, Quad-SPI Flash, or microSD card boot options. The board includes HDMI input and output ports, PWM-driven mono audio output, various user controls including pushbuttons, slide-switches, LEDs, RGB LEDs, and expansion connectors compatible with chipKIT and Arduino R3 shields, plus dual 12-pin Pmod connectors for additional modules.

Power options include USB supply or an external barrel jack input rated from 7V to 15V DC, providing operation versatility for diverse setups.

This development board is ideal for industrial, laboratory, educational, and embedded system prototyping applications where integration of ARM processor performance with FPGA flexibility is required.

Integrates Xilinx Zynq-7000 XC7Z020 APSoC with ARM Cortex-A9 processor and Artix-7 FPGA logic. Features 512MB DDR3 SDRAM and 16MB Quad-SPI Flash memory onboard. Supports various communication interfaces including Ethernet, USB 2.0, SDIO, SPI, UART, CAN, and I²C.

Equipped with HDMI in/out ports and audio output capabilities. Provides multiple user controls and expansion connectors supporting chipKIT/Arduino and Pmod modules. Explore more in Single Board Computers at EnvMart to find compatible development tools and accessories.
