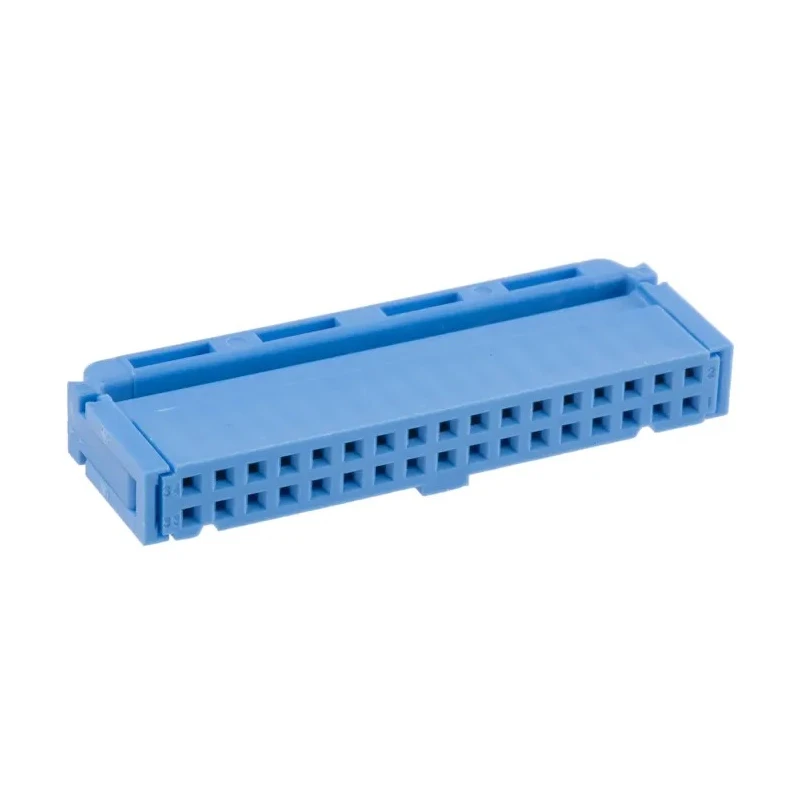

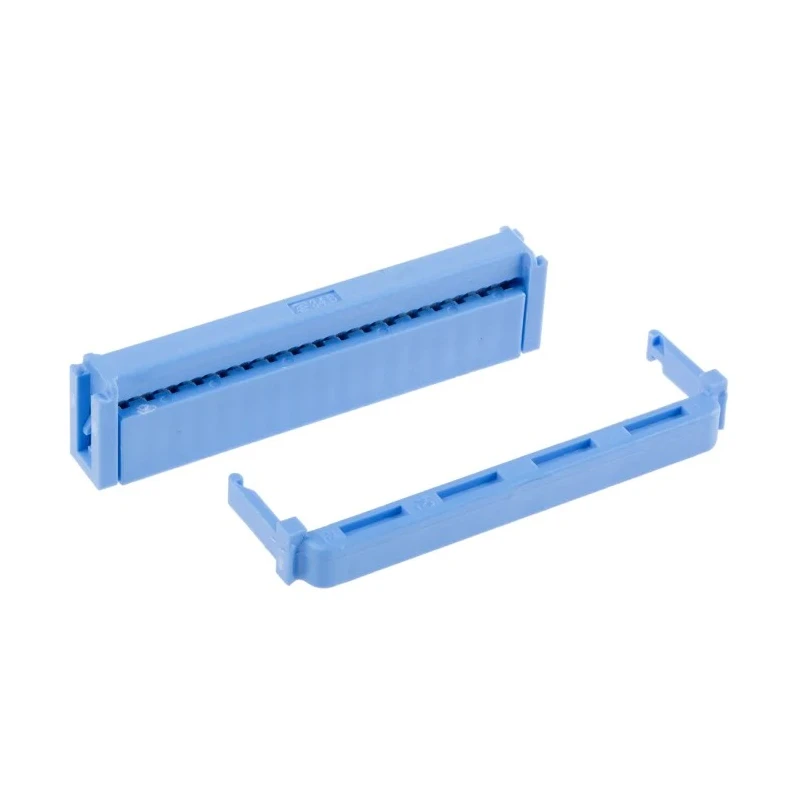

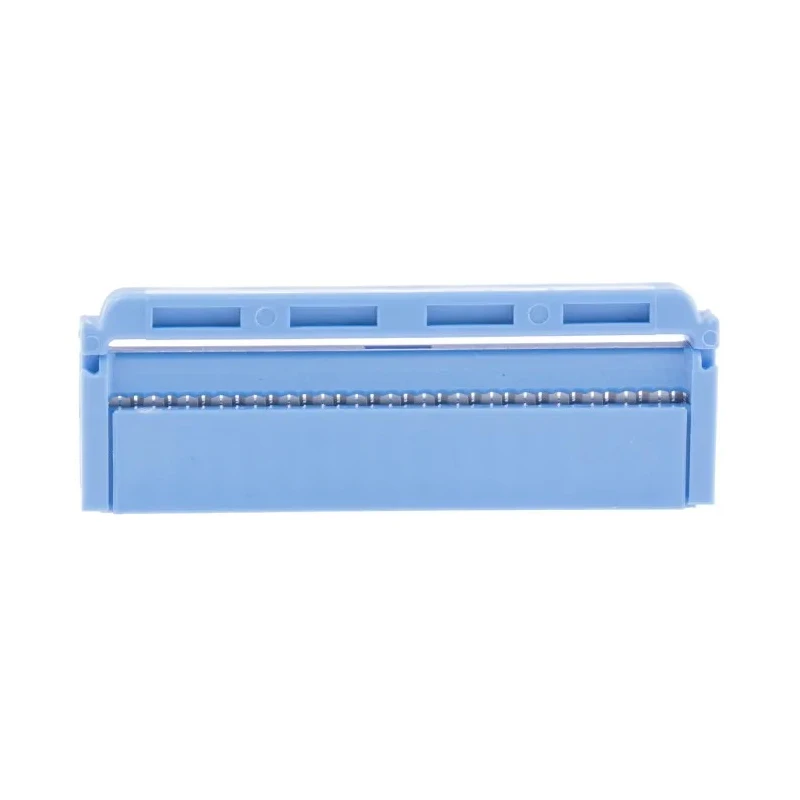

TE Connectivity 34-Way IDC Connector Female for Cable 2 Row 2-1658527-8, 250V, 1A, Right Angle, Gold over Nickel Contacts
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Standard | DIN-41651 |
| Contact Material | Beryllium Copper Alloy |
| Series | AMP-LATCH 622 |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 34 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
| RS PRO 34-Way IDC Connector Female for Cable, 2 RowBrand | RS PRO |
Key Features
- Provides secure IDC termination for 34-way ribbon cable systems.
- Rated for operation up to 250V and 1A per contact.
- Right angle female orientation designed for cable mounting.
- Gold over nickel plating ensures outstanding conductivity and corrosion resistance.
- Constructed with beryllium copper alloy contacts in glass-filled thermoplastic housing.
- Supports a 2.54mm contact pitch conforming to DIN-41651 standards.
- Shrouded housing minimizes the risk of mismating and improves cable durability.
- Operating temperature range from -65°C to 105°C, suitable for harsh environments.
Product Description
TE Connectivity model 2-1658527-8 is a high-performance 34-way IDC connector designed for terminating ribbon cables in electronic, industrial, and laboratory applications. Featuring female contacts in a two-row configuration, this connector is suitable for cable assemblies requiring reliable and robust connections.
The connector operates at a maximum voltage of 250V and current of 1A per contact, supporting typical signal and data transmission requirements. The right angle orientation and shrouded design facilitate effective cable mounting and protection against mismating and mechanical damage.
Contacts are made of beryllium copper alloy, plated with gold over nickel for enhanced electrical performance and corrosion resistance. The housing utilizes glass-filled thermoplastic (UL 94V-0 rated), ensuring mechanical strength and flame retardance.
The AMP-LATCH 622 series supports IDC termination for flat ribbon cables, especially suited for 26 - 28 AWG or stranded PVC insulated cables. The 2.54mm contact pitch meets DIN-41651 standards, ensuring compatibility with standard PCB and cable interfaces. The single slot, flat tuning fork style IDC contacts feature solder tails for secure termination.
This product offers an operating temperature range from -65°C to 105°C, making it suitable for installations subject to temperature fluctuations and intensive operation. Its shrouded/covered housing adds durability and safety during handling and installation.
Provides secure IDC termination for 34-way ribbon cable systems. Rated for operation up to 250V and 1A per contact. Right angle female orientation designed for cable mounting. Gold over nickel plating ensures outstanding conductivity and corrosion resistance.
Constructed with beryllium copper alloy contacts in glass-filled thermoplastic housing. Supports a 2.54mm contact pitch conforming to DIN-41651 standards. Shrouded housing minimizes mismating and improves cable durability.
Wide operating temperature range from -65°C to 105°C, for harsh environments.
Ideal for industrial electronics, laboratory instruments, control panels, manufacturing equipment, and commercial cable assemblies. Fully compatible with standard IDC ribbon cable systems.
For more cable and connector solutions, browse EnvMart’s Electronics Components, IDC Connector, and TE Connectivity ranges.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This IDC connector is rated for operation up to 250V.
The current rating for each contact is 1A.
It utilizes IDC (Insulation Displacement Connector) termination.
The contact pitch is 2.54mm, conforming to DIN-41651 standards.
The contacts are made of beryllium copper alloy and the housing is constructed from glass-filled thermoplastic.
The operating temperature range is from -65°C to 105°C.
This model features 34 contacts.
The connector has a right angle orientation designed for cable mounting.
This connector is shrouded, which helps minimize the risk of mismating.
It is suitable for industrial electronics, laboratory instruments, control panels, manufacturing equipment, and commercial cable assemblies.
This connector belongs to the AMP-LATCH 622 series.
The country of origin for this connector is India.
