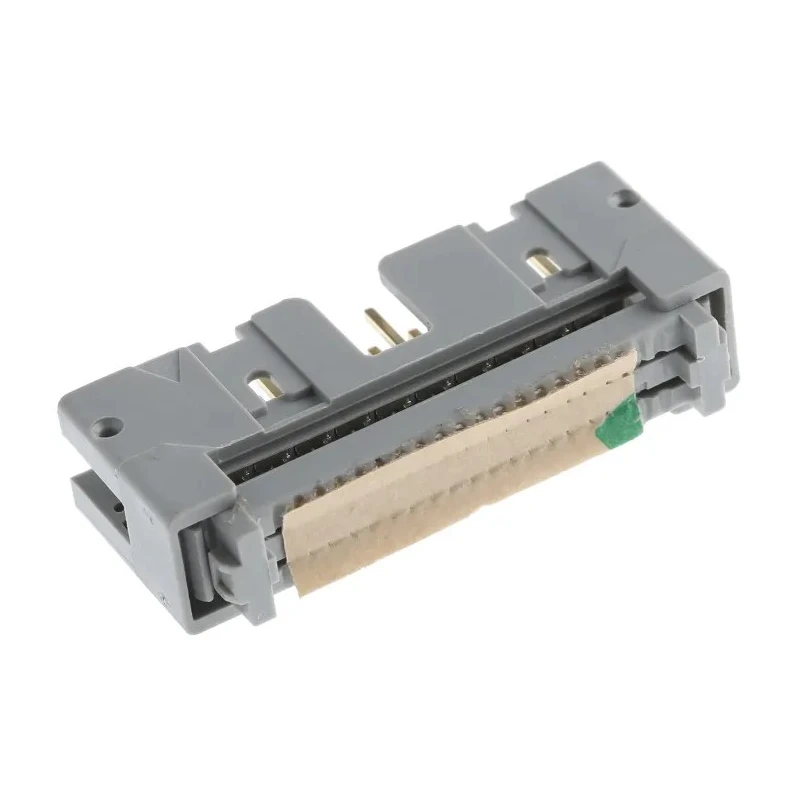

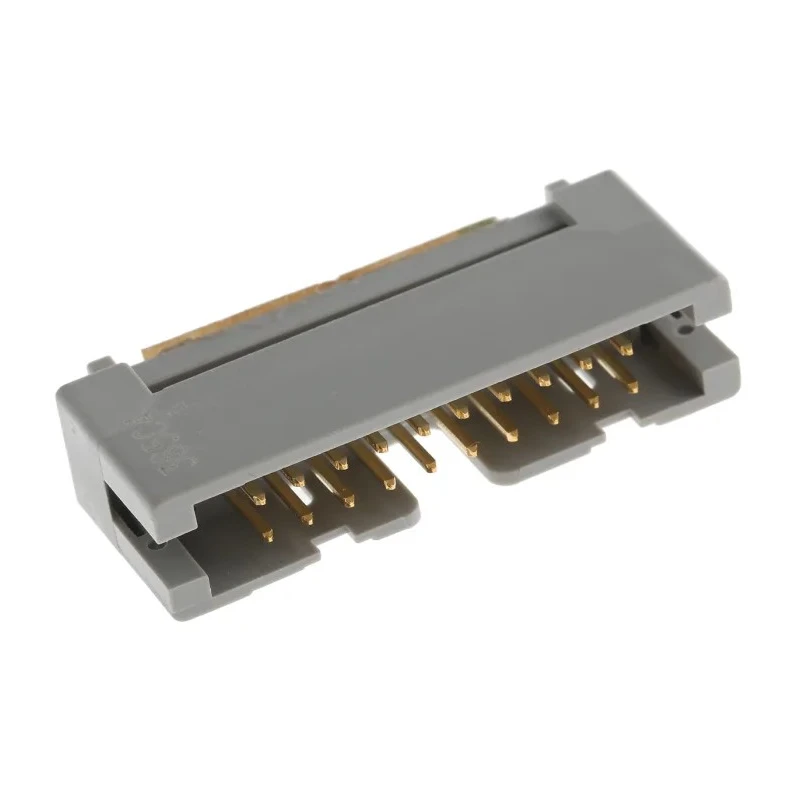

3M 20-Way IDC Connector Male for Cable, 2 Row, Shrouded, 2.54mm Pitch, Right Angle, 125V, 1A, 4620-6001
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 125V |
| Brand | 3M |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper |
| Series | 4600 |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Connector Gender | Male |
| Shrouded/Unshrouded | Shrouded |
Key Features
- Features 20 contacts arranged in 2 rows for versatile connection.
- Supports 1A current and 125V maximum voltage for reliable operation.
- Shrouded design ensures pin protection against physical and chemical damage.
- Right angle orientation saves space in compact installations.
- Gold-plated copper contacts provide excellent conductivity and durability.
- Glass-filled polybutylene terephthalate housing for mechanical strength and dielectric performance.
- Wide temperature range of -55°C to +105°C suitable for extreme environments.
- Designed for insulation-displacement contact termination with flat ribbon cable or discrete wire (26/28 AWG).
Product Description
3M 4620-6001 20-Way IDC Connector Male for Cable, 2 Row is engineered for efficient cable connections in demanding industrial and electronics applications. This connector belongs to the robust 4600 Series, featuring a shrouded design that protects the pins from physical and chemical damage, ensuring longevity and reliability.
Utilizing insulation-displacement contact (IDC) technology, the connector simplifies installations by eliminating the need to strip wires, offering fast and secure terminations to flat ribbon cables or discrete wire. The product supports AWG sizes 26 and 28 (solid or stranded), enabling compatibility with a variety of cable types. Its open end covers facilitate daisy-chaining and bussing in complex systems.
The right angle orientation makes it suitable for compact setups, while the gold-plated copper contacts ensure excellent conductivity and corrosion resistance. The housing is made of glass-filled polybutylene terephthalate (PBT), combining outstanding dielectric properties with strong mechanical performance.
20 contacts in a 2-row configuration to allow multiplexed connections. Rated for up to 1A current and 125V voltage, meeting industrial and electronics standards. Pitch of 2.54mm for compatibility with standard ribbon cables.
Operating temperature range from -55°C to +105°C, suitable for both low- and high-temperature environments. UL 94V-0 flammability rating for safety. Male connector gender with right angle mount type for flexible PCB and system integration.
IDC termination simplifies the connection process, especially in large-scale wiring. Shrouded, with optional metal strain relief and ejector latches available for cable longevity and easy handling.
This connector is ideal for computer systems, telecommunications equipment, and solid state drives, and is widely used in manufacturing, automation, laboratory instrumentation, and electronic product development. Its rugged design and ease of installation make it a solid choice for OEMs and system integrators.
For more ribbon cable and dedicated tooling options, refer to the 3M IDC range. Browse more IDC Connectors and accessories in the EnvMart electronics portfolio for tailored cable solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this connector is 125V.
This model supports a current rating of 1A.
The pitch of the contacts is 2.54mm, making it compatible with standard ribbon cables.
The connector features 20 contacts arranged in 2 rows.
The housing is made of glass-filled polybutylene terephthalate (PBT), and the contacts are made of copper with gold plating.
The operating temperature range is from -55°C to +105°C.
This model utilizes insulation-displacement contact (IDC) termination, allowing for quick and secure connections without wire stripping.
The connector has a right angle orientation, which is beneficial for compact installations.
Yes, this connector features a shrouded design that protects the pins from physical and chemical damage.
It is suitable for use in computer systems, telecommunications equipment, and solid state drives, among other industrial and electronics applications.
The connector is a male type, designed for cable mounting.
The country of origin for this connector is the United States.
