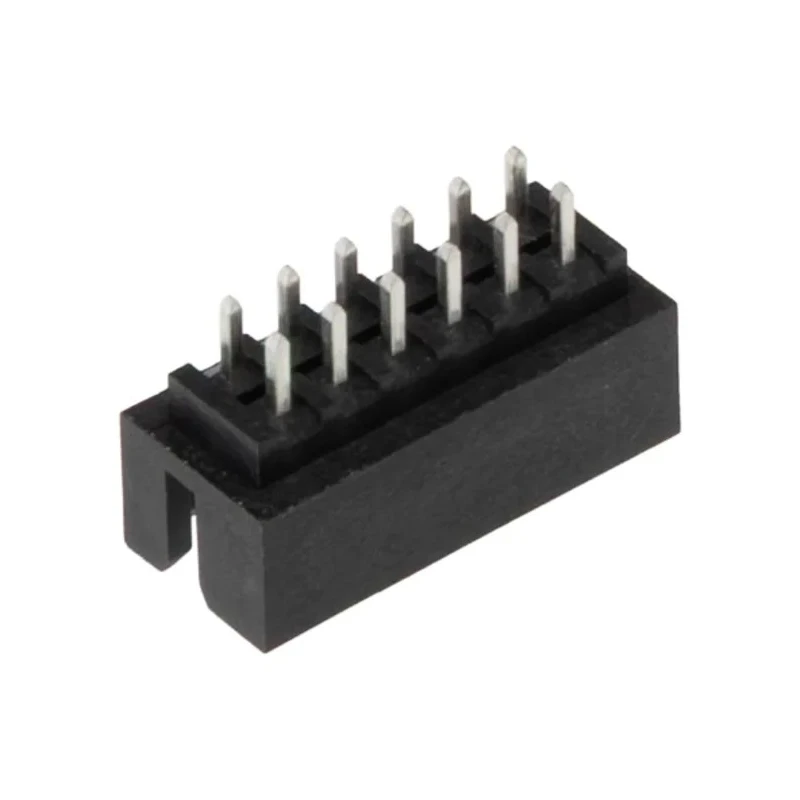

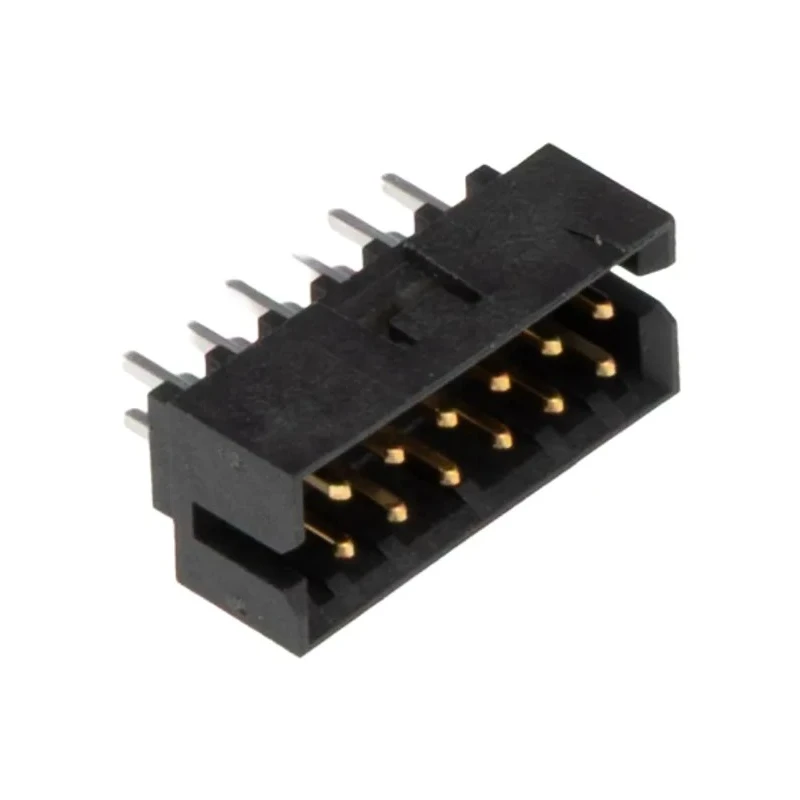

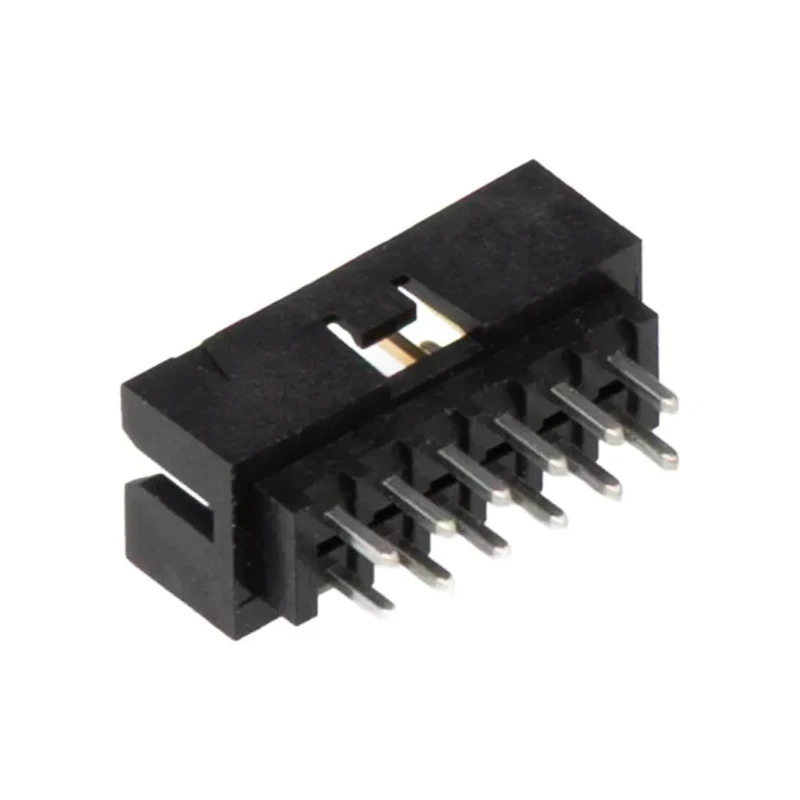

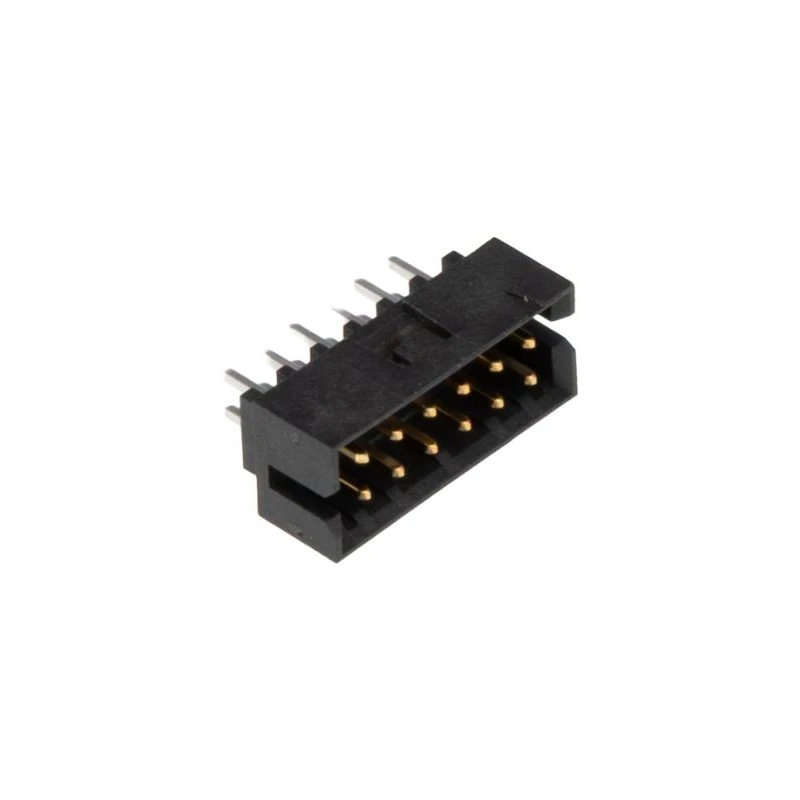

Molex Milli-Grid Series Shrouded Straight Through Hole PCB Header, 12 Contacts, 2 mm Pitch, 2 Row, Brass 87831-1241

The Molex 87831-1241 Milli-Grid Series Shrouded Straight Through Hole PCB Header is engineered for reliable wire-to-board connection in various electronic and industrial applications. Featuring a 2 mm pitch and 12 contacts arranged in 2 rows, this PCB connector ensures compact and efficient circuit design.

Its brass contacts with gold plating provide consistent electrical performance and resist corrosion over time. The shrouded, straight orientation with through-hole mount type simplifies PCB integration and protects contacts from mechanical damage or misalignment.

Rated for a continuous current of 2A and voltage up to 125V, this header operates under a wide temperature range from -55°C to 105°C, making it suitable for challenging environments in industrial automation equipment and consumer electronics. The male contact gender and solder termination type offer dependable mating and secure electrical connections.

This connector includes a locking window feature for additional connection security and supports up to 100 mating cycles, ensuring durability in repeated use scenarios. Ideal for applications requiring a combination of electrical reliability and mechanical robustness.

Features 12 brass contacts with gold plating for enhanced corrosion resistance. Configured with 2 rows at a 2 mm pitch for dense packing on PCBs. Supports a maximum current rating of 2A and operating voltage of 125V. Designed for through-hole mounting with a tail pin length of 2.5 mm.

Operates reliably between -55°C and 105°C for industrial and electronic environments. Shrouded design improves protection against misalignment during mating. Contact gender is male with a mating pin length of 3.6 mm. Terminated via solder for stable electrical connections.

Suitable for industrial automation, consumer electronics, and general electronic circuits. Recommended PCB thickness is 1.60 mm for proper mounting stability.

It is a preferred choice in industrial automation equipment, automation control systems, and consumer electronic devices, where secure and reliable wire-to-board connections are paramount. Its durability and performance standards make it ideal for demanding operational conditions.
