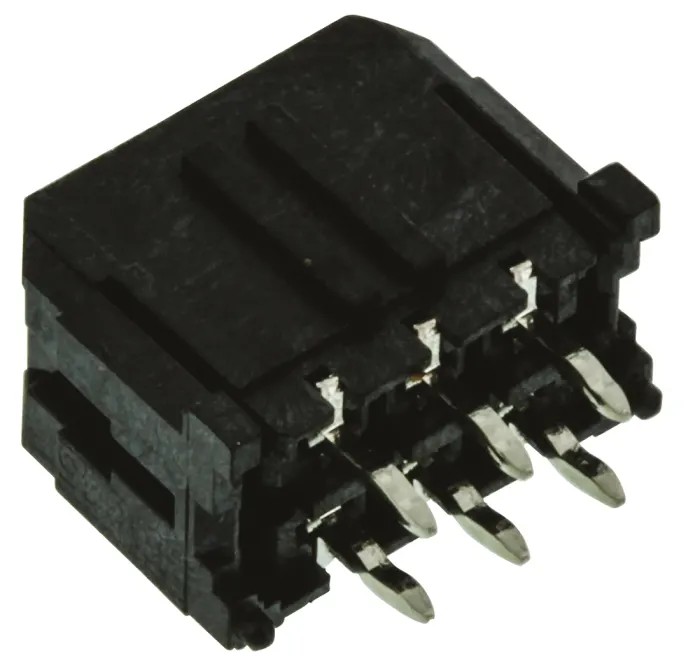

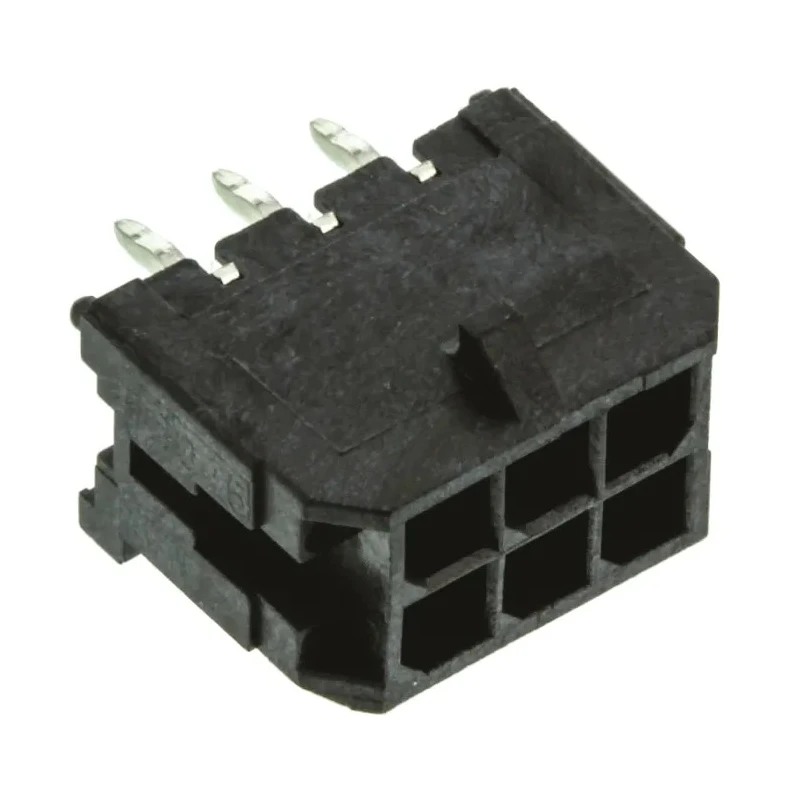

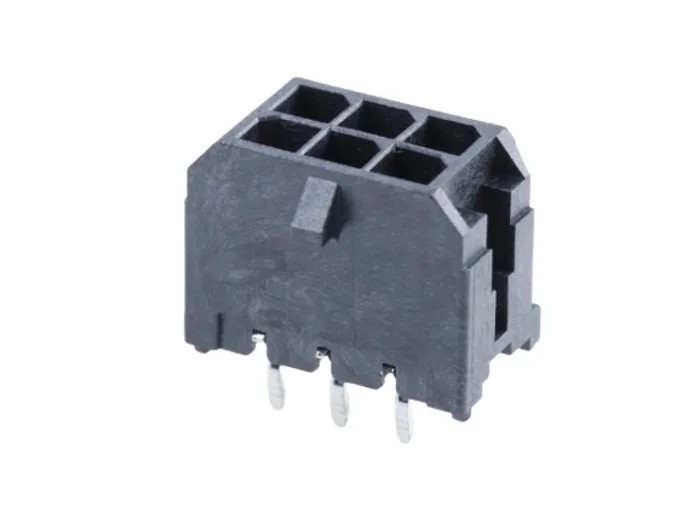

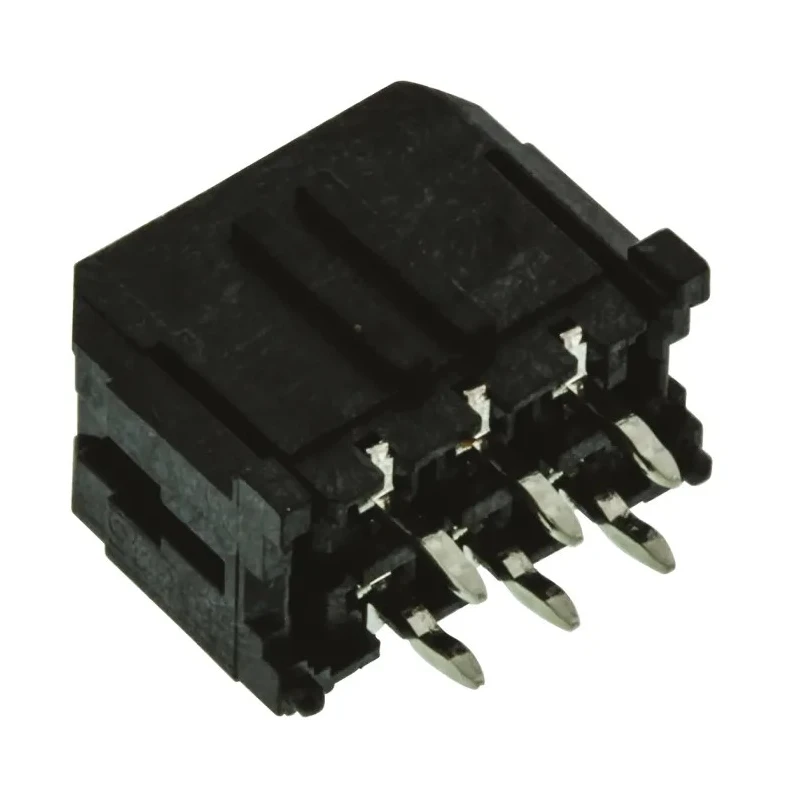

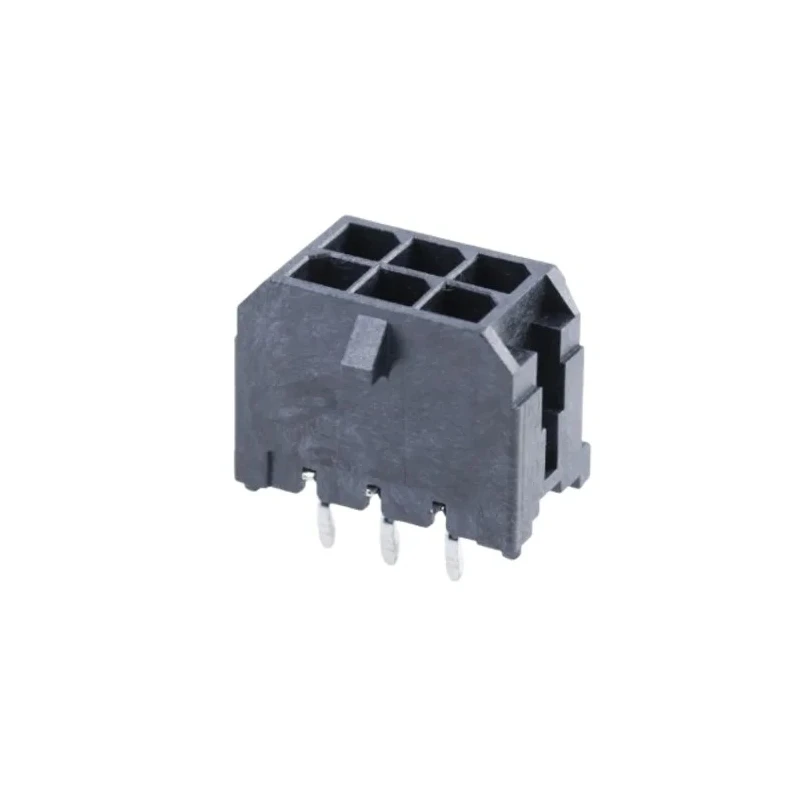

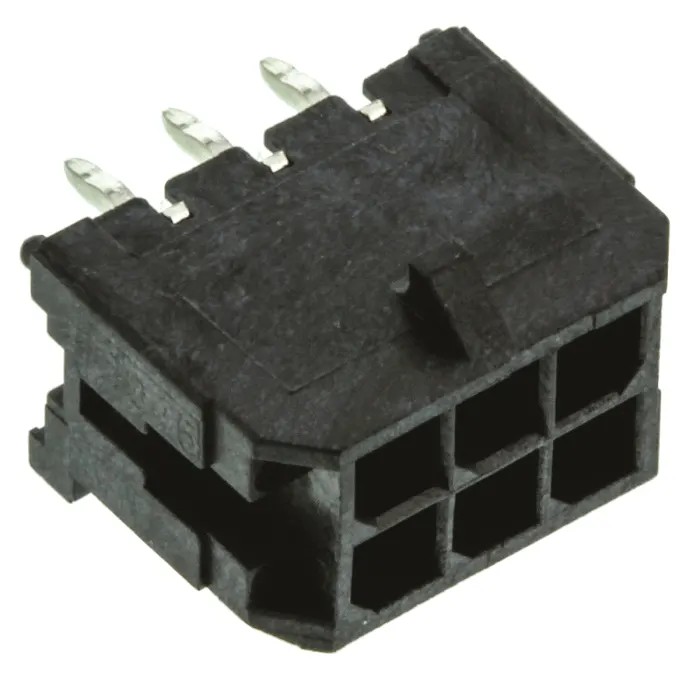

Molex Micro-Fit 3.0 Series Vertical Through Hole PCB Header, 6 Contacts, 3 mm Pitch, 2 Row, Shrouded 43045-0614
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Vertical |
| Current | 8.5A |
| Mount Type | Through Hole |
| Housing Material | High Temperature Thermoplastic |
| Contact Material | Brass |
| Series | Micro-Fit 3.0 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 3mm |
Key Features
- Supports a maximum current of 8.5A for robust power transfer.
- Constructed with high temperature thermoplastic housing for durability.
- Brass contacts plated with gold ensure excellent conductivity and corrosion resistance.
- Suitable for through-hole mounting with vertical orientation.
- Operates reliably between -40°C and 125°C, ideal for harsh environments.
- Shrouded design protects contacts and enhances safety.
- Compact 3 mm pitch with dual row configuration saves PCB space.
- Rated for up to 30 mating cycles to ensure longevity.
Product Description
Molex 43045-0614 Micro-Fit 3.0 Series Vertical Through Hole PCB Header is engineered for dependable wire-to-board connections in modern electronic systems. This connector features a robust 6-contact, 2-row configuration with a 3 mm pitch, providing efficient power transfer and compact design.
The housing is made from high temperature thermoplastic material suitable for operation in temperatures ranging from -40°C to 125°C, making it ideal for industrial, automation, electrical equipment, mechanical devices, and other applications requiring durable connectors.
Brass contacts with gold plating ensure excellent electrical performance and resistance to corrosion. The shrouded design protects the contacts from damage and enhances overall connector safety.
Designed for through-hole mounting in a vertical orientation, this PCB header supports a maximum current rating of 8.5A and voltage rating up to 600V. It is compatible with Micro-Fit 3.0 receptacle housings in the same series, providing consistent mating and secure connections with a rated lifecycle of 30 mating cycles.
Applications include automation systems requiring reliable power connections, electrical wiring in machinery, and space-saving wire-to-board routing solutions in compact devices. The connector complies with industry safety standards to ensure performance in demanding environments.
Supports a maximum current of 8.5A for robust power transfer. High temperature thermoplastic housing for durability. Brass contacts with gold plating for conductivity and corrosion resistance. Through-hole mount and vertical orientation.
Operating temperature range from -40°C to 125°C. 600V voltage rating for safety in high voltage applications. Shrouded contact design for protection. Compact dual row, 3 mm pitch configuration saves PCB space. Rated for 30 mating cycles for longevity.
Manufactured in Mexico with high quality control.
This Molex PCB header is ideal for use in industrial, automation, HVAC, manufacturing, and electronic applications where reliable connections and compact form factors are critical. Explore more connectors and electronic components on EnvMart to complete your projects with trusted brands like Molex.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a maximum current rating of 8.5A, ensuring robust power transfer for various applications.
It has a voltage rating of up to 600V, making it suitable for high voltage applications.
The operating temperature range is from -40°C to 125°C, allowing it to function reliably in harsh environments.
The housing is constructed from high temperature thermoplastic, providing durability and resistance to heat.
This connector features 6 contacts arranged in a 2-row configuration.
It utilizes a solder termination type, ensuring secure connections to the PCB.
Yes, it is designed for through-hole mounting in a vertical orientation.
The connector has a compact pitch size of 3 mm, which helps save PCB space.
The contacts are plated with gold, which ensures excellent conductivity and corrosion resistance.
It is rated for up to 30 mating cycles, ensuring longevity in use.
This model is manufactured in Mexico, adhering to high quality control standards.
It is suitable for applications in industrial, automation, HVAC, manufacturing, and electronic systems that require reliable connections.
