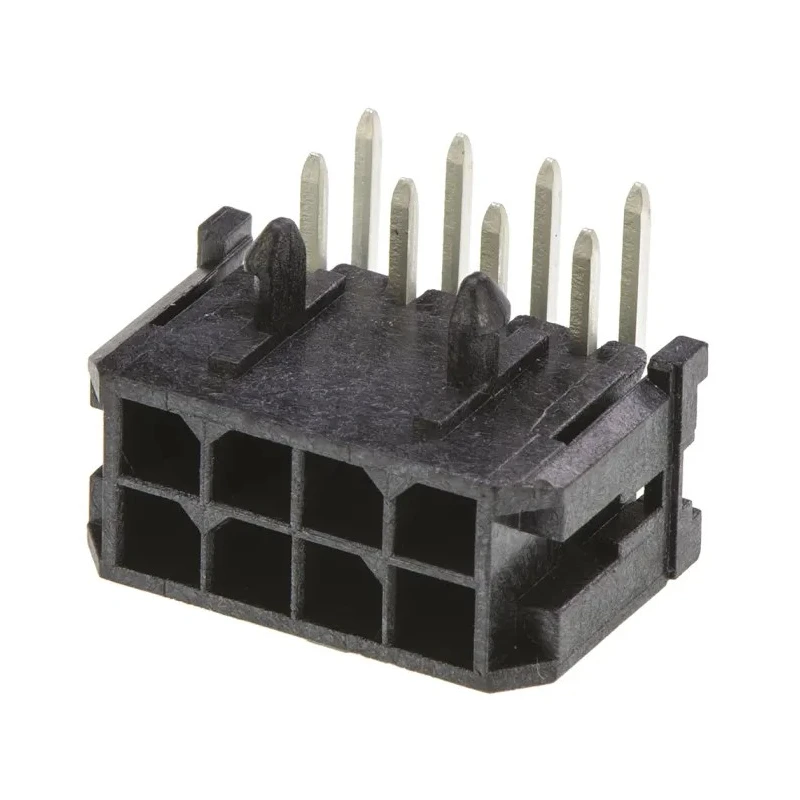

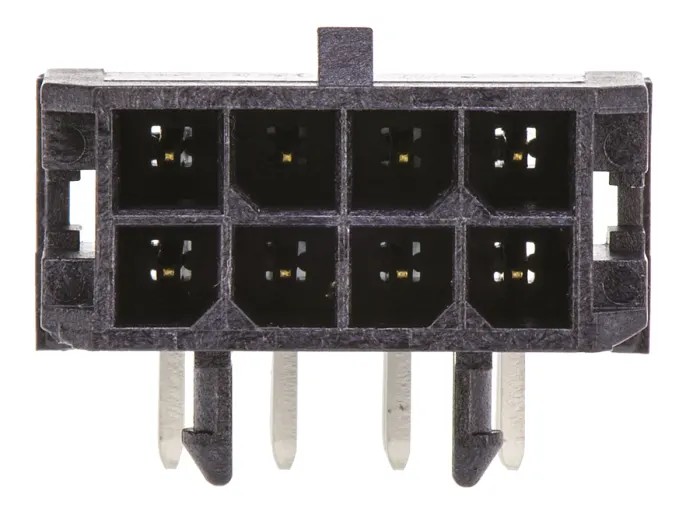

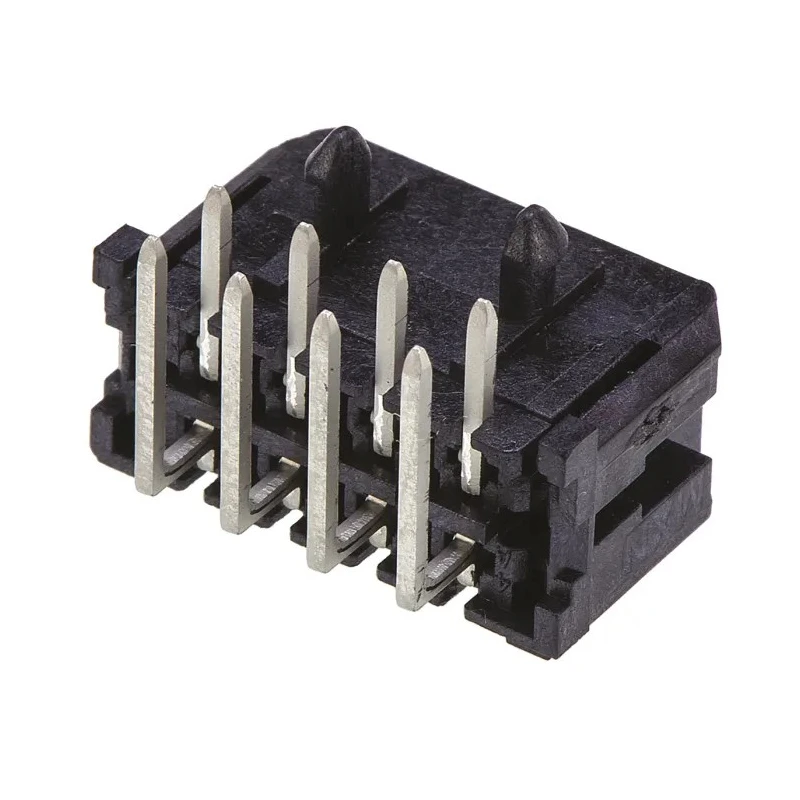

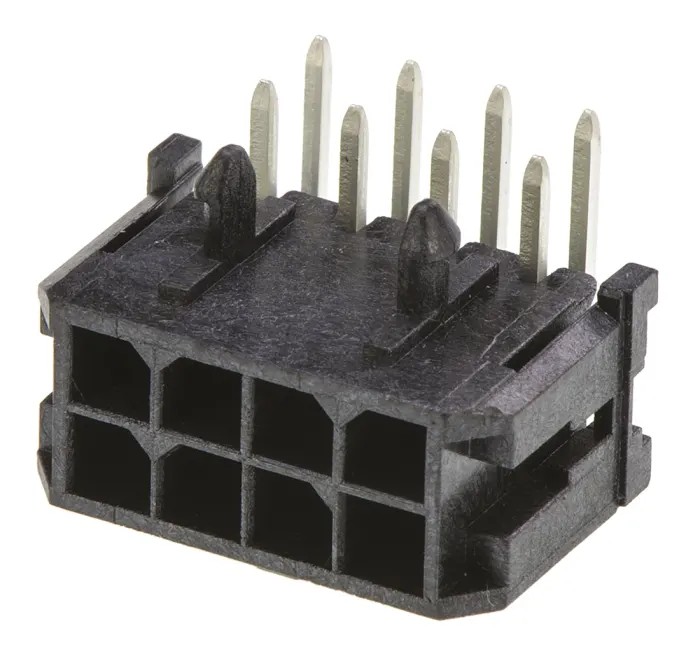

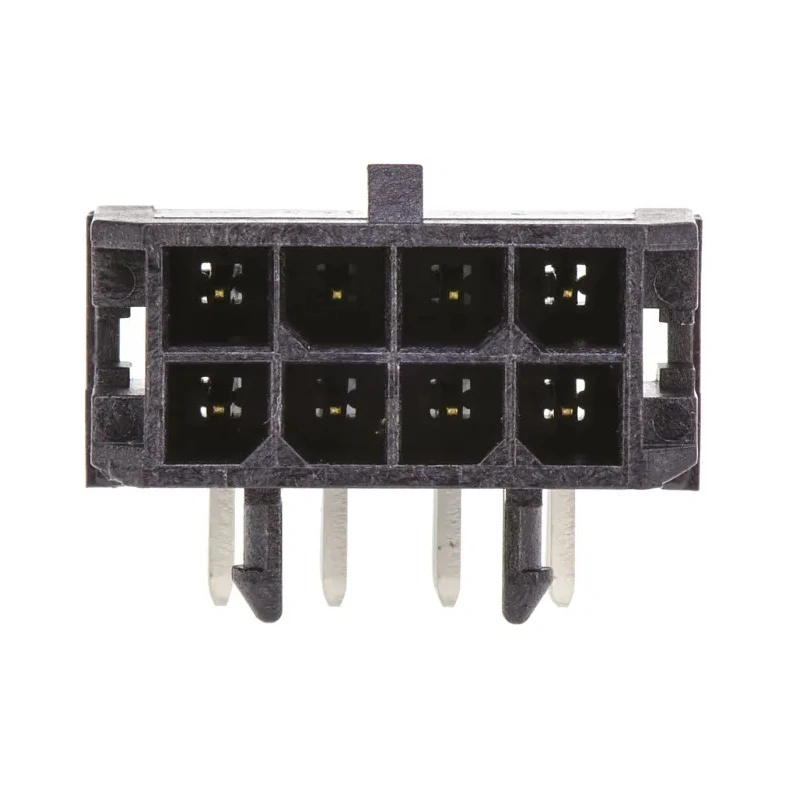

Molex Micro-Fit 3.0 Series Right Angle Through Hole PCB Header, 8 Contact, 3 mm Pitch, 2 Row, Shrouded 43045-0802
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 5A |
| Mount Type | Through Hole |
| Contact Material | Brass |
| Series | Micro-Fit 3.0 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 3mm |
Key Features
- Designed to carry up to 5A current in a compact footprint.
- Constructed with brass contacts plated in gold for enhanced conductivity and corrosion resistance.
- High-temperature UL 94V-0 Liquid Crystal Polymer housing withstands IR reflow soldering up to 265°C.
- Right angle orientation with solder termination and through-hole mount type for PCB integration.
- Positive latching mechanism prevents accidental disconnection during use.
- Snap-in plastic peg PCB locks ensure secure attachment to the PCB board.
- Wide operating temperature range from -40°C to 125°C.
- Suitable for various low to mid power applications including consumer electronics, telecommunications, and medical devices.
Product Description
Molex 43045-0802 Micro-Fit 3.0 Series Right Angle Through Hole PCB Header offers a robust and compact power distribution solution with 8 gold-plated brass contacts arranged in two rows at a 3 mm pitch. Its shrouded design and positive latching secure reliable connections in electronic assemblies.
The housing is engineered from high-temperature UL 94V-0 Liquid Crystal Polymer, allowing the connector to endure IR reflow soldering processes up to 265°C, enhancing durability and reliability in assembly environments. Through-hole mounting with solder termination type ensures stable PCB attachment, and the right angle orientation facilitates optimal wiring configurations.
This connector supports currents up to 5A and voltages up to 250V, making it suitable for low to mid power applications. Snap-in plastic peg PCB locks provide additional mechanical stability, minimizing the risk of accidental disconnections. The fully isolated dual beam terminals reduce electrical arcing, increasing operational reliability.
Operating temperature spans from -40°C to 125°C, accommodating challenging environments. Applications include military Commercial Off-The-Shelf (COTS) systems, solar power setups, consumer products like dryers and refrigerators, telecommunications equipment, medical devices, data communication hardware, and gaming terminals.
High current carrying capacity in a compact footprint. High temperature resistant housing for IR reflow soldering. Through-hole mounting compatible with SMT processes. Positive latching for secure connections. Snap-in plastic peg locks for PCB stability.
Fully isolated dual beam terminals reduce electrical arcing. Gold plating ensures excellent conductivity and corrosion resistance. Wide operating temperature range supports diverse environments.
This Molex Micro-Fit 3.0 Series connector is manufactured in Mexico under stringent quality standards to meet the demanding needs of industrial, commercial, and electronic manufacturing sectors. Browse the Electronics & Electricals > Connectors > PCB Headers category at EnvMart to find compatible connectors and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can carry a maximum current of 5A.
It supports a maximum voltage of 250V.
The contacts are arranged at a pitch of 3 mm.
This model features a total of 8 contacts arranged in two rows.
It utilizes a through-hole mounting type for PCB integration.
The contacts are made of brass and are plated in gold for enhanced conductivity and corrosion resistance.
It operates within a temperature range of -40°C to 125°C.
Yes, it includes a positive latching mechanism to prevent accidental disconnection during use.
The housing is constructed from high-temperature UL 94V-0 Liquid Crystal Polymer, allowing it to withstand IR reflow soldering up to 265°C.
It uses a solder termination type for secure connections.
This model is manufactured in Mexico under stringent quality standards.
It is suitable for various low to mid power applications including consumer electronics, telecommunications, and medical devices.
