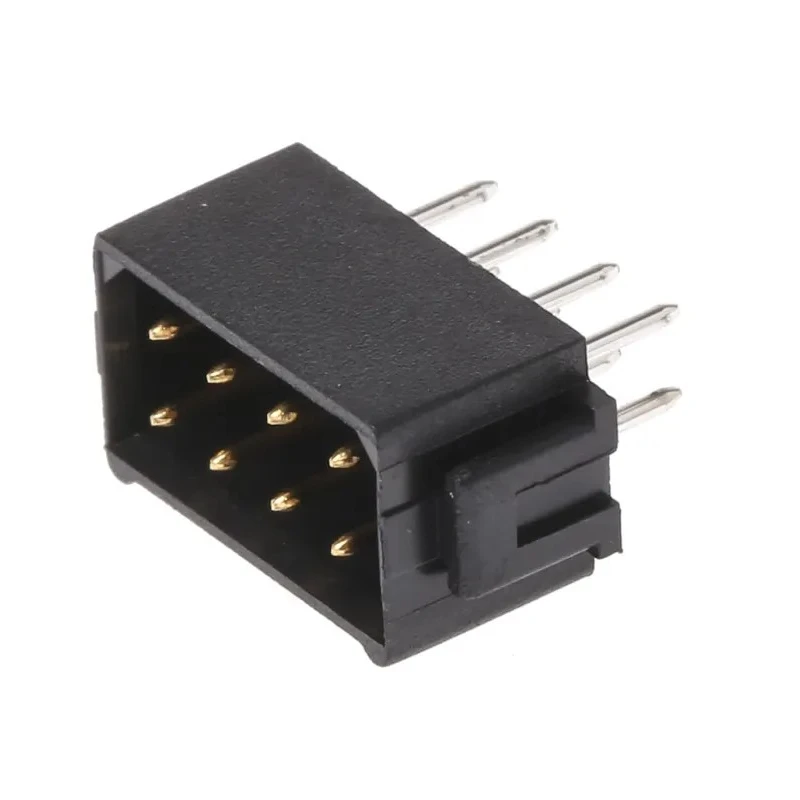

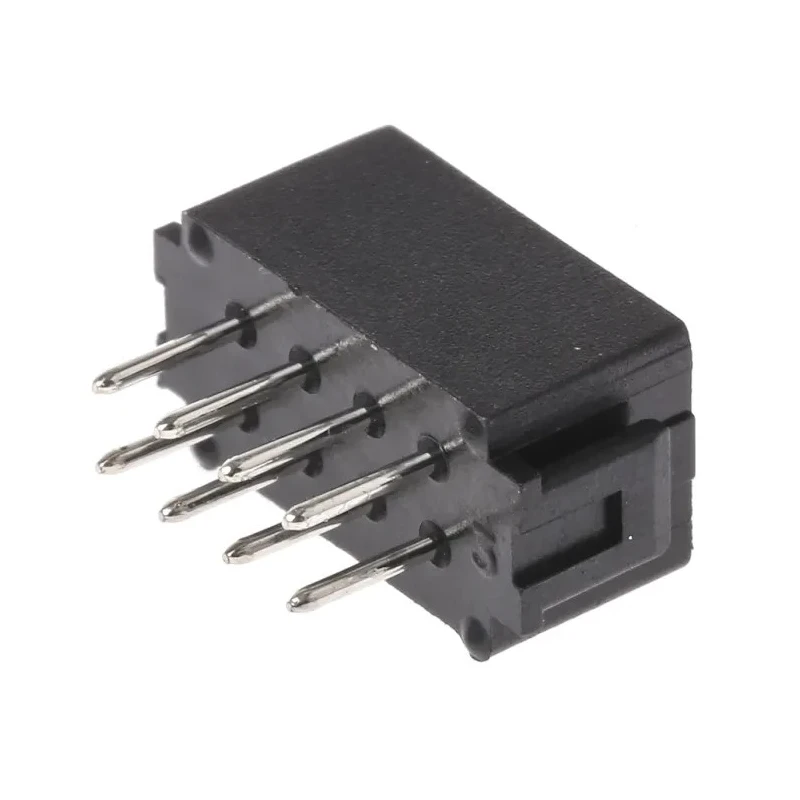

HARWIN Datamate L-Tek Series Straight Through Hole PCB Header 8 Contacts 2 mm Pitch 2 Row Shrouded M80-8540842

The HARWIN M80-8540842 Datamate L-Tek Series Straight Through Hole PCB Header is engineered to provide a high reliability connector solution for industrial and harsh environment electronic applications. Developed under the trusted Datamate series, this connector utilizes high-performance materials and precision design.

This product features 8 male contacts arranged in 2 rows with a compact 2 mm pitch, offering secure and vibration-resistant connections on PCBs. The polyphenylene sulphide housing is shrouded, enhancing durability and protecting contacts from dust and damage. The phosphor bronze contact material with gold plating ensures excellent electrical conductivity and corrosion resistance, crucial for long-term performance.

Intended for through-hole mounting, the PCB header has a 3 mm tail pin length and supports 3A current at 120V, making it suitable for both board-to-board and wire-to-board connections. The connector withstands extreme temperatures ranging between -55°C and 125°C, ensuring reliable operation in challenging industrial, manufacturing, and aerospace environments.

The Datamate L-Tek series connectors are designed with a high reliability four-finger beryllium copper contact system to maintain connection integrity under shock and vibration. They comply with industry standards including BS9525-F0033, MIL C 55302, and CEC 75101-008, making them ideal for safety-critical and rugged applications.

This variant is unlatched and polarized for secure mating with compatible connectors, widely used in commercial off-the-shelf (COTS) and custom electronics assemblies. The Harwin reputation and stringent manufacturing ensure consistent quality and performance.

Features 8 male contacts with a 2 mm pitch in 2 rows to fit compact PCB designs. Polyphenylene sulphide housing material for high temperature and chemical resistance. Gold-plated phosphor bronze contacts provide durability and excellent conductivity.

Shrouded design to protect contacts and prevent misalignment. Supports through-hole mounting with 3 mm tail pins for secure soldering. Rated for 3A current and operating voltage up to 120V. Wide operating temperature range from -55°C to 125°C for harsh environments.

Complies with relevant electrical connector standards for industrial use.

This HARWIN Datamate L-Tek PCB header is suitable for a range of industrial, electronic manufacturing, aerospace, and automotive applications requiring robust and reliable interconnects. Explore the Electronics Components and Connectors category on EnvMart for more high-quality PCBs and connector products.
