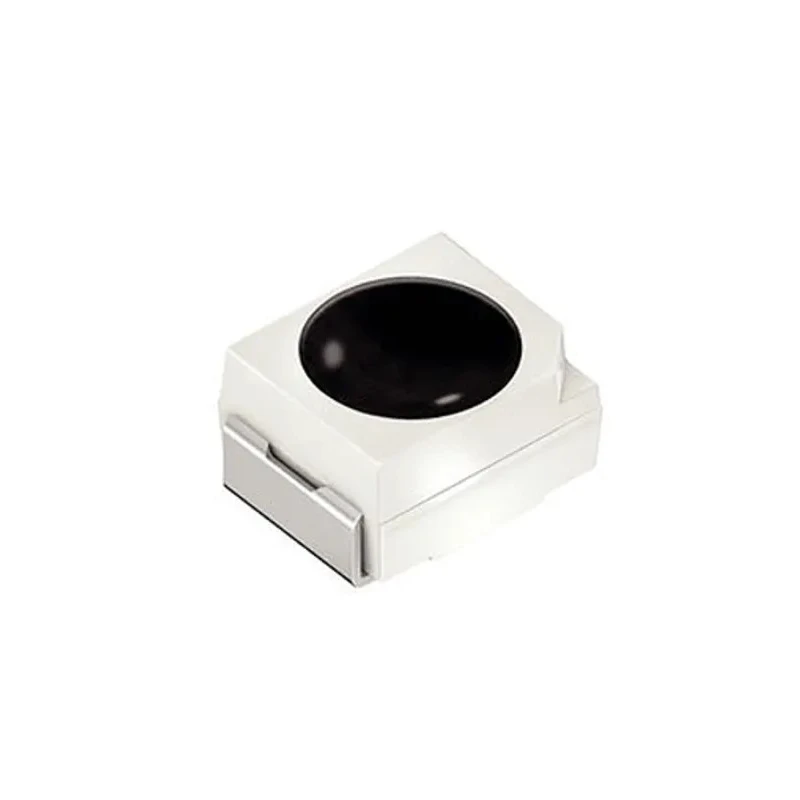

ams OSRAM Infrared Phototransistor, Surface Mount 2-Pin PLCC Package SFH 320 FA-4
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 0.45mm |
| Brand | ams OSRAM |
| Height | 2mm |
| Length | 3.4mm |
| Model | SFH 320 FA-4 |
| Packaging | Tape & Reel |
| Width | 3mm |
| Mount Type | Surface |
| Series | TOPLED |
| Maximum Operating Temperature | 100°C |
| Package Type | PLCC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS Compliant |
| Number of Pins | 2 |
| Typical Fall Time | 7μs |
| Peak Wavelength | 980nm |
| Spectrums Detected | Infrared |
| Angle of Half Sensitivity | 120 ° |
| Collector Current | 15mA |
| Maximum Light Current | 1000μA |
| Maximum Dark Current | 50nA |
| Collector Emitter Voltage | 35V |
| Half angle | 60° |
Key Features
- Detects infrared spectrum with high linearity and sensitivity.
- Features a 120° angle of half sensitivity ensuring wide detection range.
- Has a typical rise and fall time of 7 microseconds suitable for fast switching applications.
- Maximum collector current of 15mA and peak wavelength of 980nm.
- Operates within a temperature range from -40°C to 100°C for diverse environments.
- Compact dimensions of 3.4mm length, 3mm width, and 2mm height in a PLCC-2 package.
- RoHS compliant ensuring environmental safety.
- Mount type is surface mount compatible with industry-standard soldering methods.
Product Description
ams OSRAM SFH 320 FA-4 is an infrared phototransistor featuring a high linearity characteristic, housed in a compact surface mount 2-pin PLCC-2 package. This component is engineered to detect infrared light efficiently and is widely used in electronic, optoelectronic, and sensor applications.
The device exhibits a peak wavelength of 980nm and a wide 120° half angle sensitivity providing broad-area detection capability. It supports fast switching operations with typical rise and fall times of 7μs each, making it suitable for high-speed optical sensing tasks.
Designed to operate in extreme ambient conditions, it supports a temperature range from -40°C up to 100°C. The maximum collector current rating is 15mA with a maximum collector-emitter voltage of 35V, while maintaining a low dark current of 50nA for reduced noise and improved signal clarity.
The SFH 320 FA-4 comes in a surface mount PLCC package with dimensions allowing easy integration into modern compact electronic assemblies. It is RoHS compliant, aligning with environmental regulations and ensuring safety.
This phototransistor is suitable for industrial, commercial, and laboratory optoelectronic systems, including automation, detection, and communication devices requiring reliable IR light sensing.
Detects infrared spectrum with high linearity and sensitivity. Wide 120° angle of half sensitivity for extended detection area. Fast typical rise and fall times of 7μs for quick response. Operating temperature range from -40°C to 100°C for versatile applications.
Compact PLCC-2 surface mount package for easy PCB integration. Low dark current of 50nA ensures low signal noise. Maximum collector current of 15mA and collector-emitter voltage 35V. RoHS compliant for environmental safety standards.
Ideal for IR detection in electronics and optoelectronics. Explore comparable products in the Phototransistor category at EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak wavelength of this phototransistor is 980nm, allowing it to effectively detect infrared light.
The maximum collector current rating for the SFH 320 FA-4 is 15mA.
This phototransistor operates within a temperature range from -40°C to 100°C, making it suitable for diverse environments.
The dimensions of this model are 3.4mm in length, 3mm in width, and 2mm in height.
The SFH 320 FA-4 features a 120° angle of half sensitivity, providing a wide detection range.
This model has a typical rise and fall time of 7 microseconds, suitable for fast switching applications.
The phototransistor is housed in a compact surface mount PLCC-2 package.
The maximum collector-emitter voltage for the SFH 320 FA-4 is 35V.
The maximum dark current for this phototransistor is 50nA, which helps in reducing noise and improving signal clarity.
Yes, the SFH 320 FA-4 is RoHS compliant, ensuring it meets environmental safety standards.
This phototransistor is suitable for industrial, commercial, and laboratory optoelectronic systems, including automation and detection devices.
The mounting type for this model is surface mount, compatible with industry-standard soldering methods.
