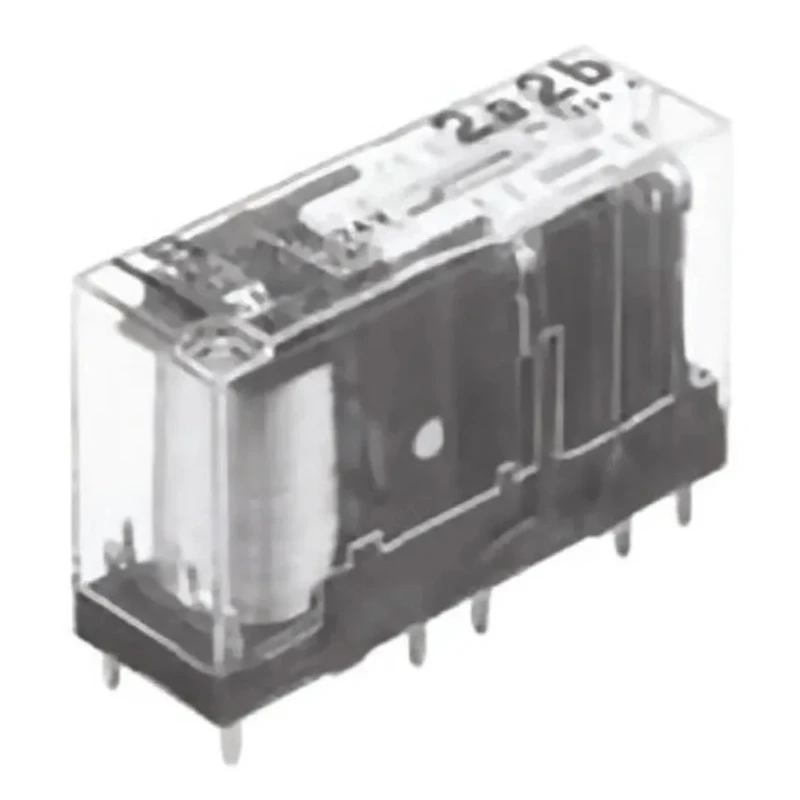

Panasonic PCB Force Guided Relay 24V dc Coil Voltage 4-Pole 3PST SFS3-DC24V

Panasonic SFS3-DC24V is a high-quality PCB Force Guided Relay designed for industrial and automation applications requiring high safety and dependability. This relay operates at a coil voltage of 24V dc and features a 4-pole, 3PST contact configuration with forcibly guided silver alloy contacts. The compact and slim profile makes it ideal for applications with limited space on printed circuit boards.

The relay's nominal coil power is 360mW, which allows energy-efficient control. Its electrical isolation of 4kVrms between coil and contacts ensures robust insulation, while the operating temperature range of -40°C to 85°C supports use in diverse environments. With a high shock resistance rating of minimum 200m/s², the relay is built to withstand mechanical stresses typical in industrial machinery.

Applications of this relay include machine tools, robotics equipment, safety PLCs, and circuits demanding stringent safety standards such as motor vehicle production lines. The through hole terminal type facilitates secure mounting on PCBs, and the product's dimensions (40mm x 24mm x 13mm) support easy integration into complex control panels.

This relay is part of Panasonic's SF series, which offers fast response time of 8 ms or less and nominal switching capacity up to 6A at 250Vac, with a maximum switching power of 180W. Its reliable forcibly guided contact mechanism assures safe operation under fault conditions.

Panasonic manufactures this relay in Japan, ensuring premium quality and adherence to global safety approvals including TUV certification. This robust relay solution is suited for electrical, automation, manufacturing, and safety-critical industrial environments.

This relay features a slim, compact PCB mount design suitable for space-constrained installations. Forcibly guided silver alloy contacts ensure stringent safety compliance and high switching performance. Coil power consumption is low at 360mW, enabling efficient operation.

Suitable for use in machine tools, robots, safety PLCs, and motor vehicle production equipment. High shock resistance with functional rating of minimum 200m/s² ensures durability in harsh environments. Operating temperature range from -40°C up to 85°C allows for a wide variety of industrial settings.

Isolation voltage of 4kVrms between coil and contacts offers strong electrical insulation and safety. Through hole terminal type provides reliable mounting on PCBs. Dimensions are compact at 40mm length, 24mm height, and 13mm depth for easy integration.
