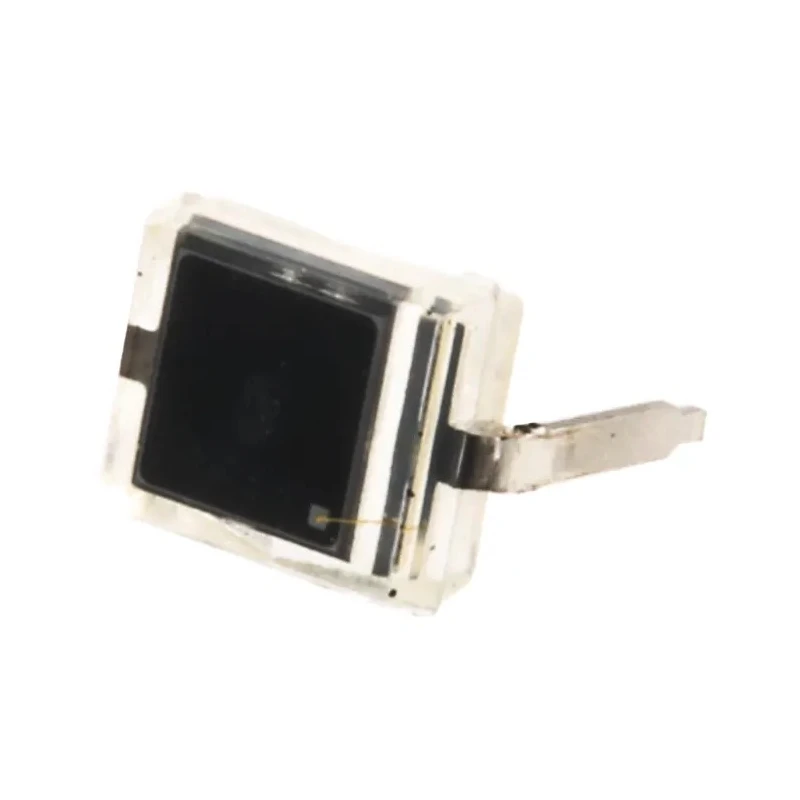

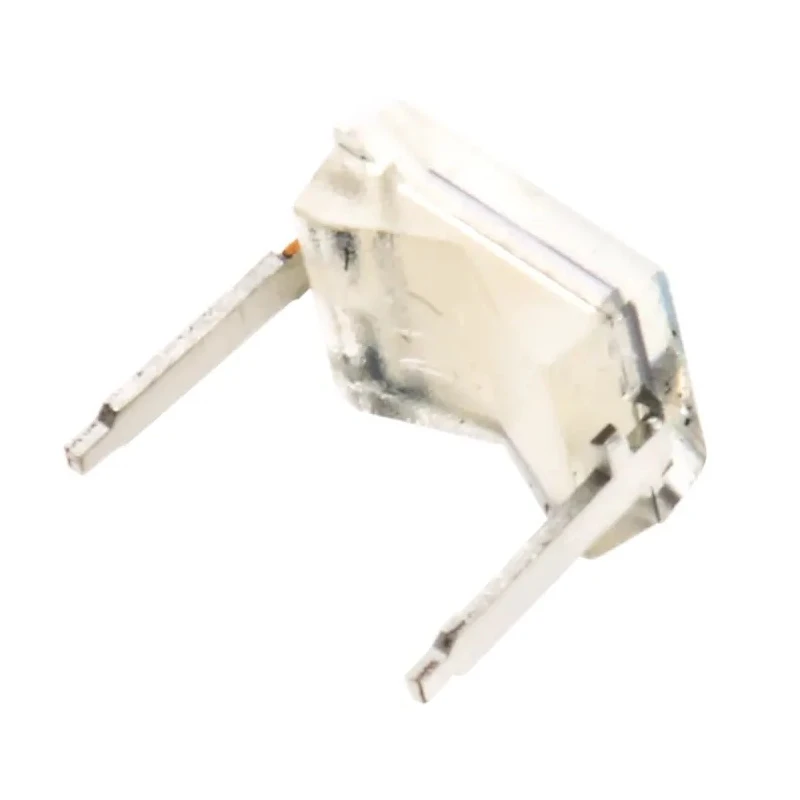

ams OSRAM Infrared Visible Light Photodiode, 60 Degree Angular Sensitivity, Through Hole DIP Package BPW 34
Specifications
| Country of Origin | India |
|---|---|
| Brand | ams OSRAM |
| Height | 2.2mm |
| Length | 4.5mm |
| Model | BPW 34 |
| Packaging | Tape & Reel |
| Width | 4mm |
| Mount Type | Through Hole |
| Short Circuit Current | 25μA |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Polarity | Reverse |
| Dark Current | 2nA |
| Open Circuit Voltage | 330mV |
| Standards/Approvals | RoHS |
| Number of Pins | 2 |
| Typical Fall Time | 20ns |
| Wavelength of Peak Sensitivity | 850nm |
| Spectrums Detected | Infrared, Visible Light |
| Breakdown Voltage | 16V |
| Minimum Wavelength Detected | 400nm |
| Maximum Wavelength Detected | 1100nm |
| Angle of Half Sensitivity | 60 ° |
Key Features
- Detects infrared and visible light spectrums effectively.
- Peak sensitivity wavelength at 850 nm for accurate detection.
- Two-pin through hole DIP package supports easy mounting.
- Compact dimensions of approximately 4.5 mm length and 4 mm width.
- Operates reliably within temperature range -40°C to 100°C.
- Exhibits typical rise and fall times of 20 nanoseconds for fast response.
- Reverse polarity polarity photodiode with 16 V breakdown voltage.
- Low dark current of 2 nA ensures minimal noise interference.
Product Description
ams OSRAM BPW 34 is a high-performance photodiode designed for detecting infrared and visible light spectrums, featuring a 60 degree angle of half sensitivity. It is housed in a durable through hole DIP (dual inline package), facilitating easy mounting in diverse electronic assemblies.
This photodiode exhibits a peak sensitivity wavelength of 850 nm, covering a broad detection range from 400 nm to 1100 nm, making it suitable for applications such as photointerrupters, infrared remote controls, automotive sensors, and headset devices.
With a compact form factor measuring approximately 4.5 mm in length, 4 mm in width, and a height of 2.2 mm, the BPW 34 is ideal for space-constrained applications requiring precise light detection. It operates efficiently across a temperature range spanning from -40°C to 100°C.
Technical performance highlights include a typical rise and fall time of 20 nanoseconds each, reverse polarity operation, low dark current of 2 nA, short circuit current of 25 μA, and a breakdown voltage rating of 16 V, ensuring reliable operation in demanding environments.
The photodiode is supplied in tape and reel packaging, enabling automated insertion processes to improve production efficiency. It complies with RoHS standards, ensuring compliance with environmental directives.
This component is widely applicable in industrial, automotive, manufacturing, and consumer electronics sectors where reliable infrared and visible light detection is required. Detects infrared and visible light spectrums effectively.
Peak sensitivity wavelength at 850 nm for accurate detection. Two-pin through hole DIP package supports easy mounting. Compact dimensions of approximately 4.5 mm length and 4 mm width. Operates reliably within temperature range -40°C to 100°C.
Exhibits typical rise and fall times of 20 nanoseconds for fast response. Reverse polarity polarity photodiode with 16 V breakdown voltage. Low dark current of 2 nA ensures minimal noise interference. Supplied in tape and reel packaging for efficient automated assembly.
RoHS compliant confirming environmental safety standards. Explore more about ams OSRAM Photodiodes and related optoelectronic solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak sensitivity wavelength of the BPW 34 photodiode is 850 nm, allowing for accurate detection of light.
This model operates reliably within a temperature range of -40°C to 100°C.
The dimensions of the BPW 34 are approximately 4.5 mm in length, 4 mm in width, and 2.2 mm in height.
It comes in a two-pin through hole DIP package, which supports easy mounting in various electronic assemblies.
The BPW 34 has a low dark current rating of 2 nA, which helps minimize noise interference.
The typical rise and fall times for the BPW 34 are both 20 nanoseconds, ensuring a fast response.
This photodiode can detect wavelengths ranging from 400 nm to 1100 nm, covering both infrared and visible light spectrums.
The short circuit current for this model is rated at 25 μA.
Yes, the BPW 34 is RoHS compliant, ensuring it meets environmental safety standards.
The BPW 34 is supplied in tape and reel packaging, which facilitates efficient automated assembly processes.
