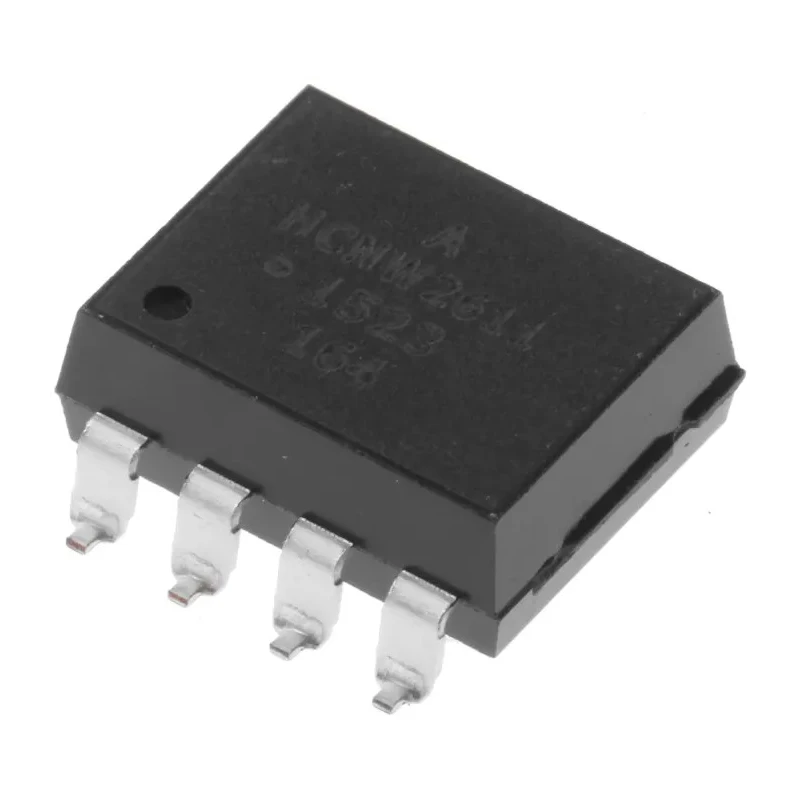

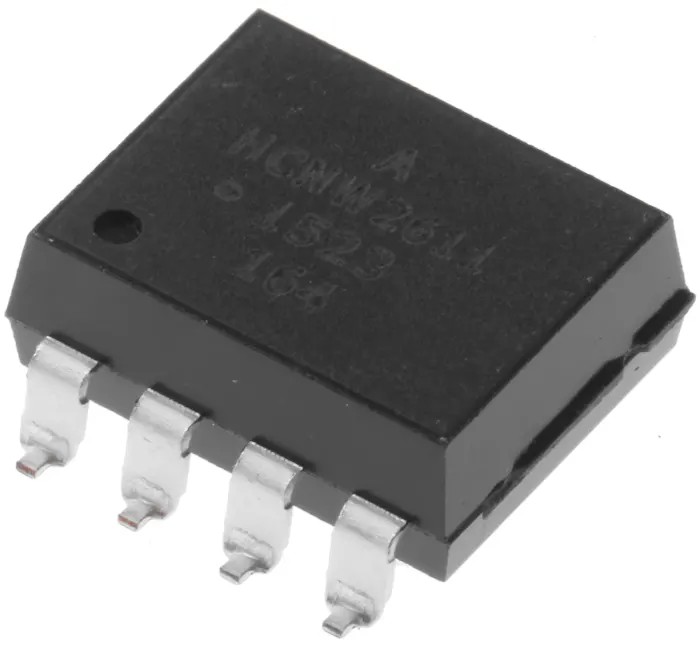

Broadcom DC Input Optocoupler Surface Mount DIP 8-Pin, Logic Output, 1.75V, 1 Channel HCNW2611-300E

The Broadcom HCNW2611-300E DC Input Optocoupler is an advanced electronic component engineered to provide reliable logic output and high voltage isolation in a variety of industrial and automotive electronic systems. Featuring a surface mount, 8-pin DIP package, this optocoupler is optimized for seamless PCB integration alongside other electronic modules.

With a maximum forward voltage rating of 1.75V and a DC input current up to 20mA, the HCNW2611-300E enables efficient signal transfer while minimizing energy loss. The device is characterized by rapid switching performance, offering a typical rise time of 24ns and fall time of 10ns, making it ideal for applications requiring swift digital responses.

Safety and reliability are enhanced by the optocoupler's high isolation voltage of 3.75 kVrms, ensuring electrical separation between the input and output circuits. This is particularly important in control systems, motor drives, and automation equipment where isolation is critical for system integrity.

Its surface mount design streamlines installation and production processes, allowing for machine insertion and high throughput during assembly. The 8-pin DIP form factor guarantees compatibility with industry-standard layouts and facilitates robust mechanical and electrical connections.

Engineered to operate within wide temperature ranges, from -40°C to 85°C, the HCNW2611-300E withstands challenging environments typical of industrial and automotive settings. Compliance with automotive standard AEC-Q100 further demonstrates its suitability for demanding and mission-critical applications.

Logic output capability broadens the scope of integration with microcontrollers, programmable logic devices, and other digital systems. The optocoupler’s IEC, EN, UL, and CSA approvals confirm its adherence to rigorous international standards for quality and safety.

The Broadcom HCNW2611-300E is supplied in a tube packaging, optimized for automated production and insertion processes. This ensures consistent availability and ease of use in manufacturing operations.

Applications include industrial automation, process control, automotive electronics, digital signal isolation, and safety monitoring systems. The device is favored for its reliability, speed, and ease of installation.
