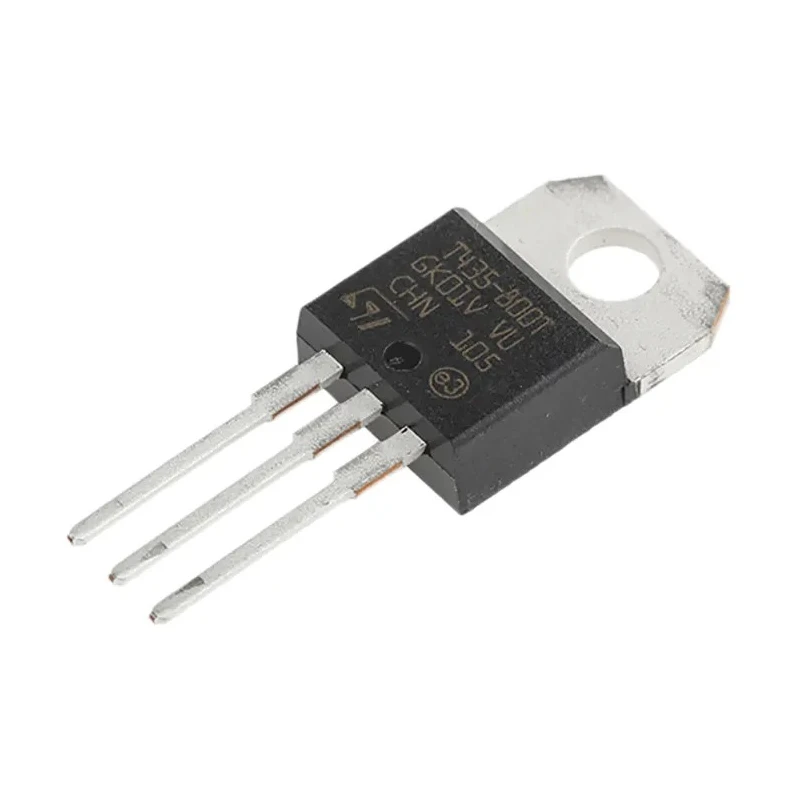

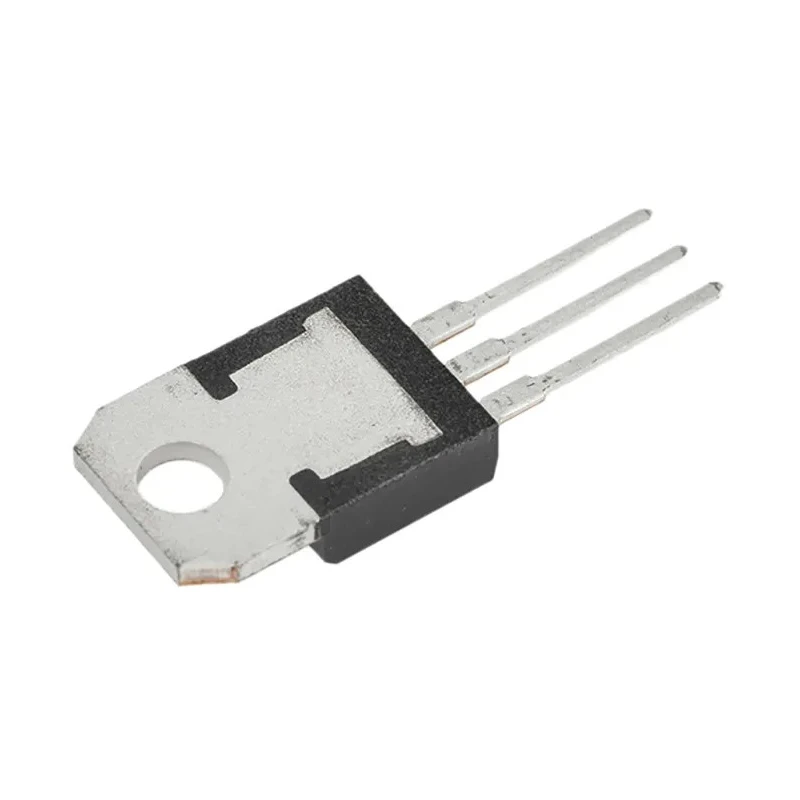

STMicroelectronics Through Hole 3-Pin TRIAC, 800 V Repetitive Peak Reverse Voltage, Gate Trigger 1.3 V T435-800T
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 9.15mm |
| Length | 10.4mm |
| Model | T435-800T |
| Mount Type | Through Hole |
| Configuration | Single |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 4A |
| Repetitive Peak Reverse Voltage VDRM | 800V |
| Surge Current Rating | 31A |
| Maximum Gate Trigger Current Igt | 35mA |
| Maximum Holding Current Ih | 35mA |
| Maximum Gate Trigger Voltage Vgt | 1.3V |
| Peak On-State Voltage | 1.56V |
| Repetitive Peak Off-State Current | 5μA |
| Peak Gate Power Dissipation | 1W |
Key Features
- Rated average on-state current of 4 A ensures reliable operation under load.
- Through hole mount type with TO-220 package suitable for PCB insertion.
- Maximum gate trigger current is 35 mA for effective triggering.
- Peak on-state voltage is 1.56 V to maintain efficiency.
- Operates between -40°C and 125°C temperature range for industrial use.
- Surge current rating up to 31 A allows handling transient loads.
- Compact dimensions with height of 9.15 mm and length of 10.4 mm optimize board space.
- Single configuration TRIAC provides switching for AC applications.
Product Description
STMicroelectronics T435-800T is a high-performance through hole mounted TRIAC with 3 pins designed for efficient AC switching applications. It features a high repetitive peak reverse voltage of 800 V and a low gate trigger voltage of 1.3 V for sensitive triggering performance.
This TRIAC supports a rated average on-state current (Irms) of 4 A, enabling reliable current control in power management and switching circuits. Its TO-220 package with through hole mount type provides robustness and ease of assembly in industrial and commercial electrical systems.
Designed to operate in temperature ranges from -40°C to 125°C, the T435-800T ensures durable operation in demanding environments. The device's surge current rating of 31 A allows it to withstand transient surges commonly encountered in industrial power circuits.
With a maximum gate trigger current of 35 mA, the TRIAC offers efficient triggering with minimal power loss. Peak on-state voltage of 1.56 V enhances overall circuit efficiency. The compact size, measuring 9.15 mm in height and 10.4 mm in length, makes it suitable for space-constrained PCB designs.
The single configuration TRIAC provides stable switching for AC current, with low repetitive peak off-state current of 5 μA minimizing leakage. This makes it ideal for use in industrial automation, power control, lighting controls, and other AC power switching applications.
The T435-800T TRIAC offers excellent electrical characteristics to support industrial, commercial, and laboratory equipment requiring controlled AC power. Rated average on-state current of 4 A for reliable switching. Through hole mount type in durable TO-220 package.
Maximum gate trigger current of 35 mA for low power activation. Surge current rating up to 31 A for transient protection. Wide operating temperature range from -40°C to 125°C. Compact dimensions optimize pcb space usage.
Single configuration for AC current switching. Low repetitive peak off-state current reduces power losses. Explore more semiconductor components and TRIACs at EnvMart for your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated average on-state current (Irms) for the T435-800T is 4 A, ensuring reliable operation under load.
The maximum repetitive peak reverse voltage (VDRM) of this TRIAC is 800 V, suitable for various AC applications.
The maximum gate trigger voltage (Vgt) for the T435-800T is 1.3 V, allowing for sensitive triggering performance.
The surge current rating of the T435-800T is up to 31 A, enabling it to handle transient loads effectively.
This TRIAC has a height of 9.15 mm and a length of 10.4 mm, making it compact for PCB designs.
The operating temperature range for this model is from -40°C to 125°C, suitable for industrial environments.
The T435-800T features a through hole mount type with a TO-220 package, facilitating easy assembly.
The peak on-state voltage for the T435-800T is 1.56 V, which helps maintain circuit efficiency.
The maximum gate trigger current (Igt) for the T435-800T is 35 mA, allowing for effective triggering with minimal power loss.
The T435-800T is a single configuration TRIAC, designed for stable switching of AC current.
The repetitive peak off-state current for the T435-800T is 5 μA, which minimizes leakage in the circuit.
This TRIAC is suitable for industrial automation, power control, and lighting controls, among other AC power switching applications.
