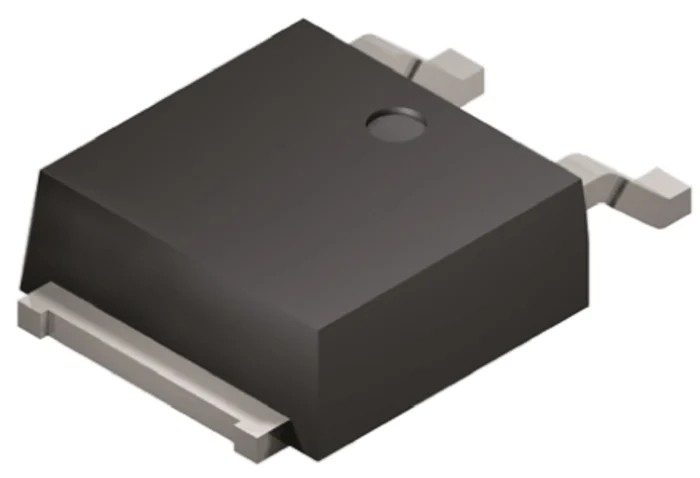

Vishay 40 V 7 A Schottky Diode Surface Mount TO-252 Package 3-Pin DPAK VS-6CWQ04FN-M3
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 6.85mm |
| Brand | Vishay |
| Height | 2.39mm |
| Length | 6.73mm |
| Model | VS-6CWQ04FN-M3 |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | Q |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS Directive 2002/95/EC |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 7A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 500A |
| Maximum Forward Voltage Vf | 0.67V |
Key Features
- This diode supports a maximum continuous forward current of 7 amperes.
- It features a peak reverse repetitive voltage rating of 40 volts.
- The package type is TO-252 with a common cathode diode configuration.
- Peak non-repetitive forward surge current capability is 500 amps.
- The device operates reliably within a temperature range from -40°C to 150°C.
- Its maximum forward voltage is 0.67 volts, ensuring low power losses.
- Measuring 6.73mm in length, 6.22mm in width, and 2.39mm in height with a diameter of 6.85mm.
- Complies with RoHS Directive 2002/95/EC and meets AEC-Q101 automotive standards.
Product Description
Vishay VS-6CWQ04FN-M3 is a high-performance Schottky diode designed for applications demanding efficient fast switching and low power loss. It is constructed in a TO-252 (3-pin DPAK) surface mount package, allowing for compact PCB layouts and ease of assembly.
This diode supports a maximum continuous forward current of 7 A and a peak reverse repetitive voltage of 40 V. Its peak non-repetitive forward surge current is rated at 500 A, making it suitable for transient conditions in power electronics circuits.
Featuring a low maximum forward voltage drop of 0.67 V, the VS-6CWQ04FN-M3 Schottky diode minimizes conduction losses and improves energy efficiency in power rectification and switching power supplies.
The device remains fully functional and safe within an operating temperature range from -40°C to 150°C. Its compact physical dimensions of 6.73 mm length, 6.22 mm width, and 2.39 mm height with a diameter of 6.85 mm facilitate flexibility in module designs.
This diode complies with the RoHS Directive 2002/95/EC, ensuring environmentally safe manufacturing, and meets the automotive standard AEC-Q101, highlighting its reliability under automotive environmental conditions.
Schottky diodes like the VS-6CWQ04FN-M3 are ideal for industrial, automotive, power supply, and telecommunications applications, where fast switching and low voltage drops significantly enhance system performance and energy savings.
This diode supports a maximum continuous forward current of 7 amperes. It features a peak reverse repetitive voltage rating of 40 volts. The package type is TO-252 with a common cathode diode configuration. Peak non-repetitive forward surge current capability is 500 amps.
The device operates reliably within a temperature range from -40°C to 150°C. Its maximum forward voltage is 0.67 volts, ensuring low power losses. Measuring 6.73mm in length, 6.22mm in width, and 2.39mm in height with a diameter of 6.85mm.
Complies with RoHS Directive 2002/95/EC and meets AEC-Q101 automotive standards.
Explore Vishay Semiconductors for advanced diode technology and reliable power components suitable for electronic designers and manufacturers. Check EnvMart for the widest selection of Schottky diodes and other semiconductor devices.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 7 amperes.
This model has a peak reverse repetitive voltage rating of 40 volts.
The package type is TO-252, which is a surface mount configuration.
The peak non-repetitive forward surge current capability is rated at 500 amps.
It operates reliably within a temperature range from -40°C to 150°C.
The maximum forward voltage drop is 0.67 volts, which helps minimize power losses.
The dimensions are 6.73 mm in length, 6.22 mm in width, and 2.39 mm in height, with a diameter of 6.85 mm.
This diode meets the AEC-Q101 automotive standard, ensuring its reliability under automotive conditions.
Yes, it complies with the RoHS Directive 2002/95/EC, ensuring environmentally safe manufacturing.
It features a common cathode diode configuration.
This Schottky diode is suitable for industrial, automotive, power supply, and telecommunications applications.
The peak reverse current is rated at 2 mA.
