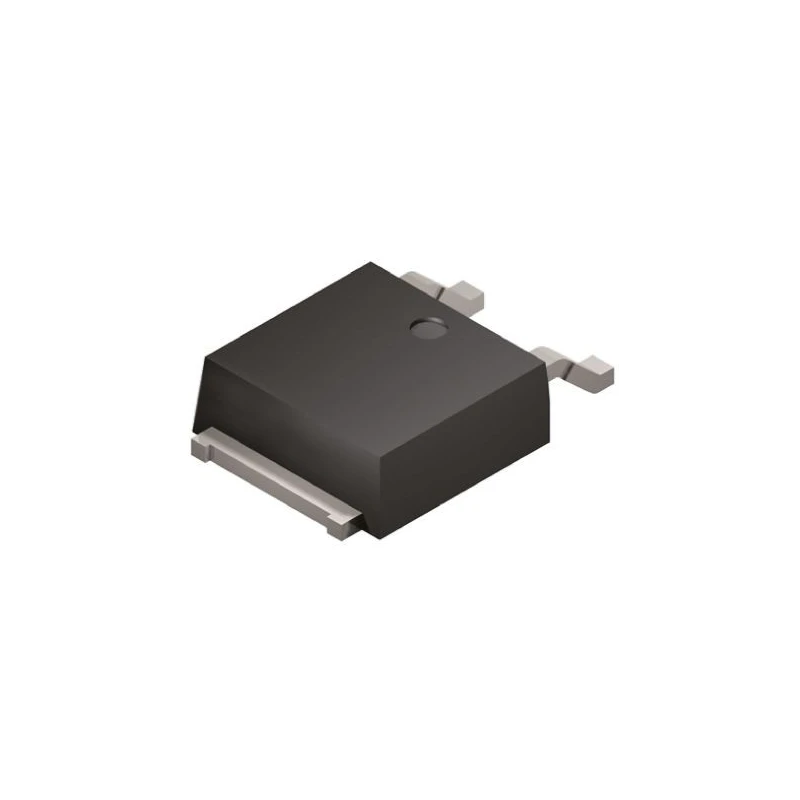

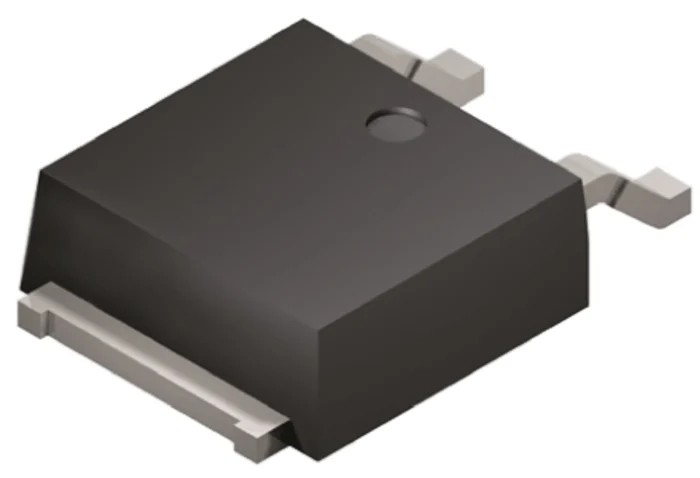

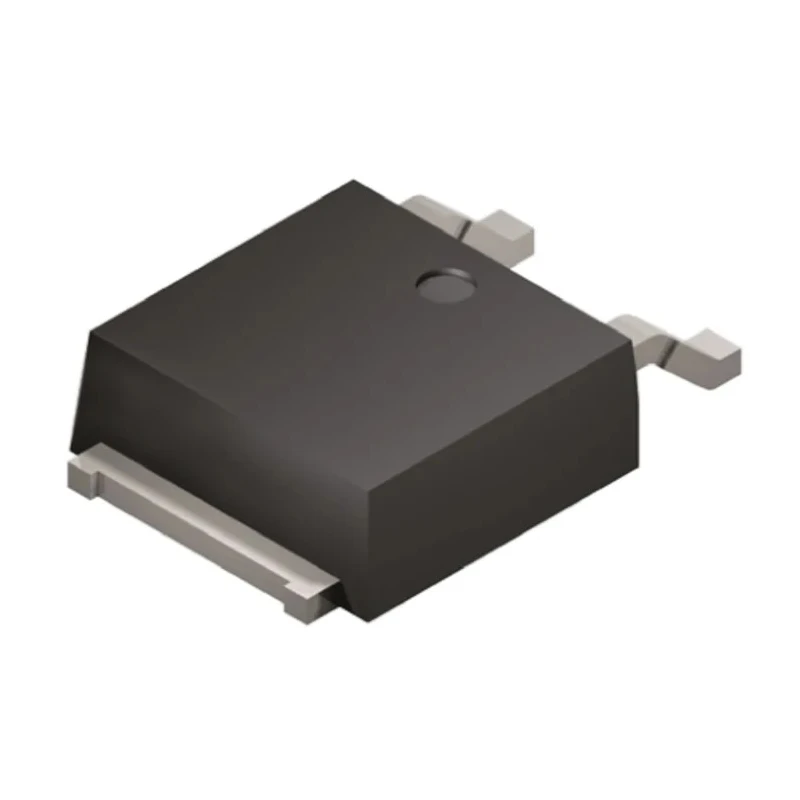

Vishay 40 V 7 A Schottky Diode Surface Mount TO-252 Package 3-Pin DPAK VS-6CWQ04FN-M3
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 6.85mm |
| Brand | Vishay |
| Height | 2.39mm |
| Length | 6.73mm |
| Model | VS-6CWQ04FN-M3 |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | Q |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS Directive 2002/95/EC |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 7A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 500A |
| Maximum Forward Voltage Vf | 0.67V |
| Vishay 40V 7A, Dual Schottky Diode, 3-Pin D-PAK VS-6CWQ04FN-M3Brand | Vishay |
Key Features
- The diode features a surface mount TO-252 package with 3 pins in DPAK style.
- It exhibits a maximum continuous forward current rating of 7 amps.
- The peak reverse repetitive voltage rating is 40 volts.
- The maximum forward voltage drop is 0.67 volts for efficient conduction.
- It operates reliably over a temperature range from -40°C to 150°C.
- Designed with a common cathode diode configuration and Schottky rectifier type for fast switching.
- Peak non-repetitive forward surge current is 500 amps, suitable for transient conditions.
- The diode conforms to RoHS Directive 2002/95/EC and meets AEC-Q101 automotive standards.
Product Description
Vishay VS-6CWQ04FN-M3 is a high-performance Schottky diode engineered for fast switching and low power loss in advanced electronic circuits. This diode is rated at 40 volts peak reverse repetitive voltage and 7 amps maximum continuous forward current, featuring a surface mount TO-252 (DPAK) package with 3 pins for efficient PCB footprint utilization.
The diode exhibits a low forward voltage drop of 0.67 volts, contributing to minimized conduction losses and enhanced energy efficiency in power rectification. It supports peak non-repetitive forward surge currents up to 500 amps, allowing it to withstand transient overloads typical in power conditioning and automotive switching applications.
Designed with a common cathode configuration, this Schottky rectifier offers extremely fast reverse recovery times and low leakage current, making it ideal for power supply designs, voltage clamping, and freewheeling diode tasks.
The device maintains reliable operation across a wide temperature range from -40°C to 150°C, ensuring durability in harsh industrial and automotive environments. It complies with RoHS Directive 2002/95/EC for environmental safety and meets automotive standard AEC-Q101 certified reliability requirements.
Mechanical dimensions include a length of 6.73 mm, width of 6.22 mm, height of 2.39 mm, and diameter approximately 6.85 mm, giving a compact footprint suitable for surface mount assembly. The diode’s package type and mounting style facilitate efficient integration on high-density circuit boards.
The diode features a surface mount TO-252 package with 3 pins in DPAK style. Maximum continuous forward current of 7 A supports substantial load currents. Peak reverse voltage rating of 40 V ensures safe operation under voltage stress.
Low forward voltage drop of 0.67 V minimizes conduction loss. Wide operating temperature range from -40°C to 150°C enhances reliability. Complies with RoHS Directive for environmental compliance. Meets AEC-Q101 automotive standards ensuring high quality and ruggedness.
Compact physical dimensions allow space-efficient PCB designs. Ideal for use in power supply, automotive, industrial, and electronic equipment.
This Vishay Schottky diode VS-6CWQ04FN-M3 provides an optimal combination of performance, efficiency, and durability for demanding electronics manufacturing requirements. It is widely used in semiconductor applications including power rectification, switching circuits, and energy regulation in industrial and automotive sectors.
Browse EnvMart’s extensive catalog under Electronics & Electricals > Semiconductor > Schottky Diodes & Rectifiers for additional Vishay components and related semiconductor devices to complete your project or production needs.
