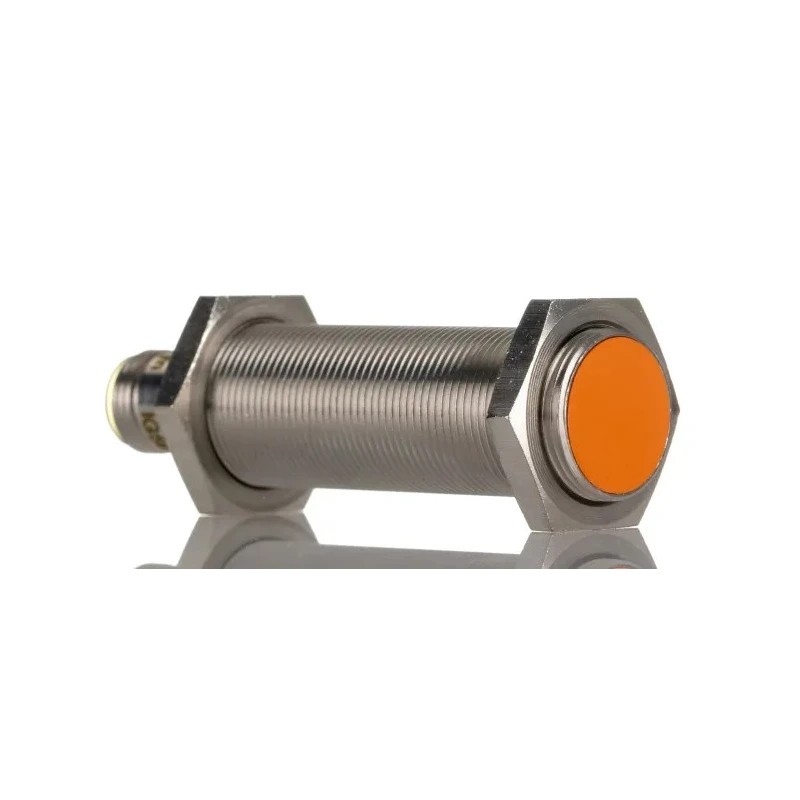

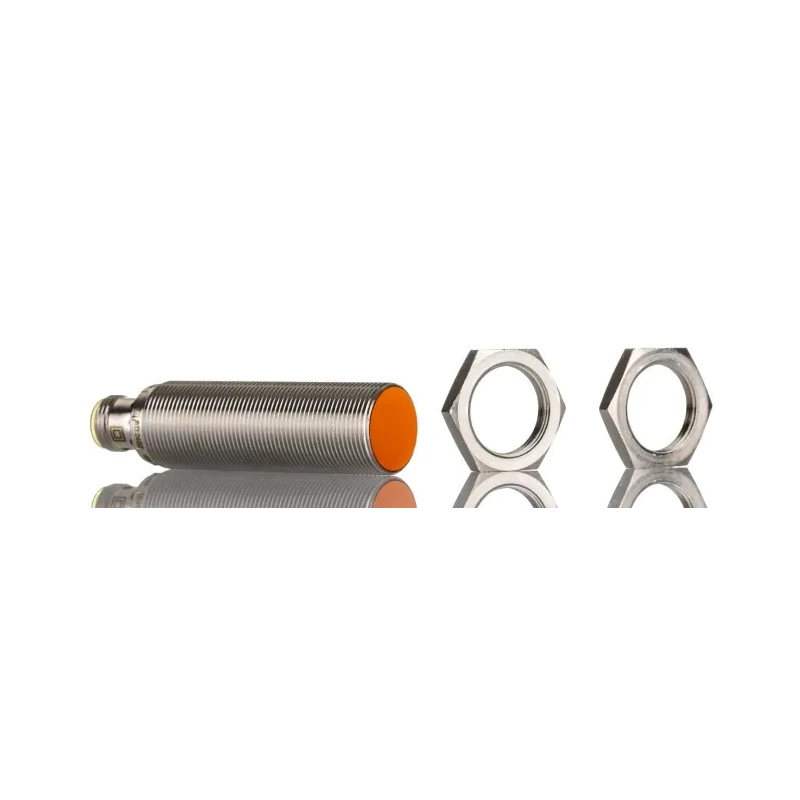

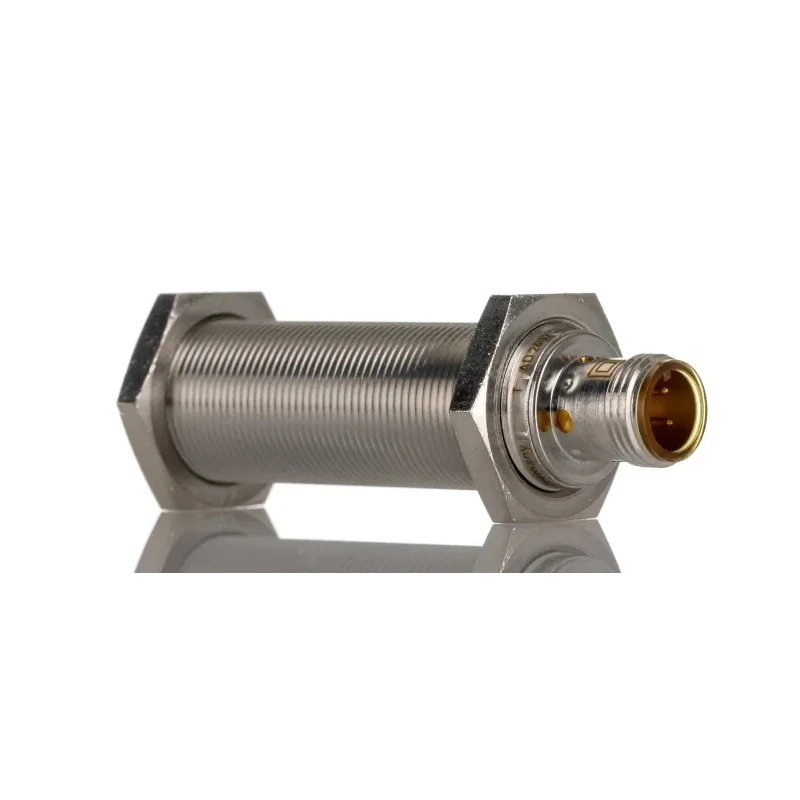

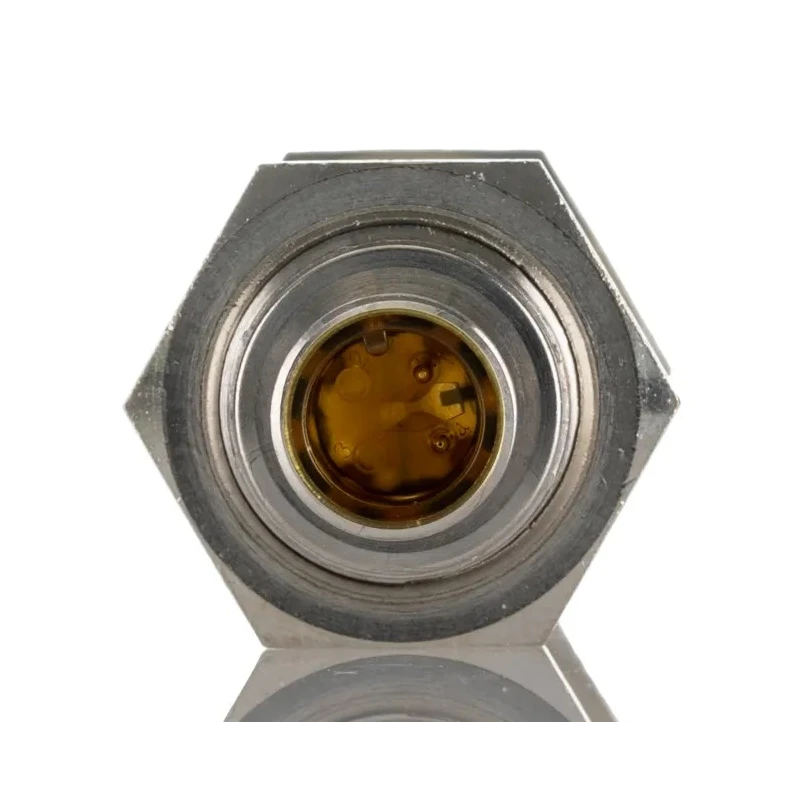

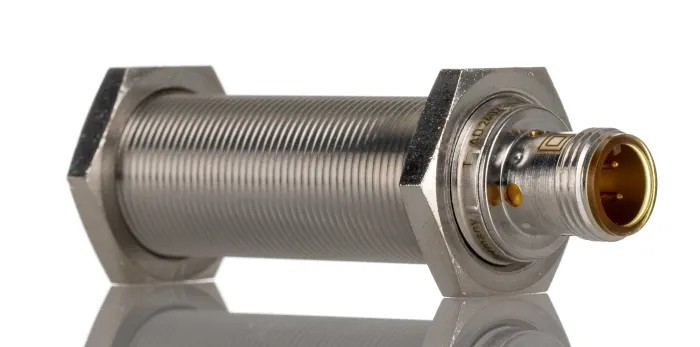

ifm electronic Threaded Barrel Inductive Proximity Sensor M18 x 1 36V DC 100mA PNP/NPN IG5953

ifm electronic IG5953 is a threaded barrel Inductive Proximity Sensor with an M18 x 1 thread size, suitable for precise metal detection in harsh industrial environments. Its compact copper zinc housing features optalloy plating, ensuring robust mechanical and chemical resistance.

The sensor offers a maximum detection range of 8 mm with shielded sensing for interference-free operation. It operates on a maximum supply voltage of 36 V DC and supports both PNP and NPN output types through a 4-pin terminal interface. This variety allows seamless integration with diverse automation systems.

Designed for flush mount installation, the IG5953 sensor maintains an IP68 rating, making it dust-tight and resistant to continuous immersion in water. It functions reliably in temperatures ranging from -25°C to 70°C, making it ideal for factory automation, manufacturing, and process control.

Additional built-in features include four switching status LEDs and a setting LED, which assists in achieving optimum sensing range during setup. With a maximum switching frequency of 400 Hz and a switching current of up to 100 mA, it supports rapid and accurate detection cycles.

Comprehensive protection features such as short circuit, overload, and reverse polarity safeguard ensure operational safety and sensor longevity. The sensor's compliance with EN 60947-5-2 standards affirms its suitability for industrial and manufacturing applications.

Country of origin is Germany, attesting to high manufacturing standards. This sensor is commonly used in industrial automation, machinery monitoring, robotics, and material handling systems.

Features an optalloy plated brass housing for enhanced durability. IP68 rated for protection against dust and water ingress. Maximum detection range of 8 mm for reliable metal sensing. Supports both PNP and NPN output configurations with 4-pin terminal.

Operating voltage up to 36 V DC with a switching current of 100 mA. Four switching status LEDs and a setting LED to indicate optimal sensing range. Operating temperature range from -25°C to 70°C for diverse environments.

Short circuit, overload, and reverse polarity protection for safe operation. Explore the ifm electronic product range and related sensors on EnvMart for comprehensive automation solutions.
