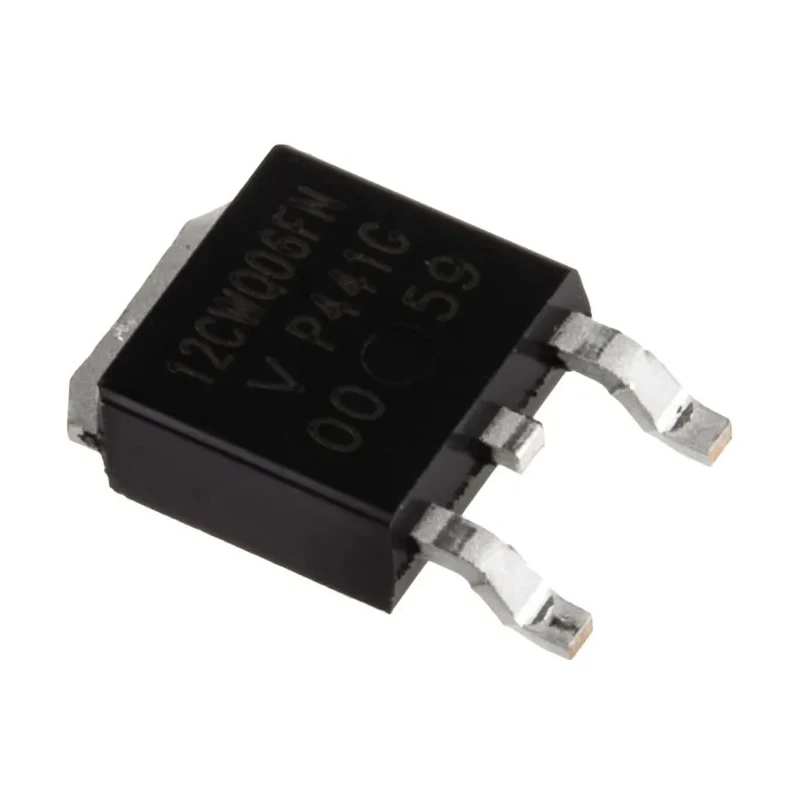

Vishay 60 V 12 A Schottky Diode 3-Pin DPAK Surface Mount TO-252 Package VS-12CWQ06FN-M3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.39mm |
| Length | 6.73mm |
| Model | VS-12CWQ06FN-M3 |
| Width | 6.22mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 12A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 3mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 320A |
| Maximum Forward Voltage Vf | 570mV |
| Vishay 60V 12A, Dual Schottky Diode, 3-Pin DPAK VS-12CWQ06FNPBFBrand | Vishay |
Key Features
- Designed for surface mount applications with TO-252 package type.
- Maximum continuous forward current rating of 12 amperes.
- Peak reverse repetitive voltage of 60 volts.
- Common cathode diode configuration optimized for fast switching.
- Low forward voltage drop of 570 millivolts for high efficiency.
- Operating temperature range from -55°C to 150°C ensuring reliability under harsh conditions.
- Peak non-repetitive forward surge current up to 320 amperes.
- Compact dimensions of 6.73 mm length, 6.22 mm width, and 2.39 mm height.
Product Description
Vishay VS-12CWQ06FN-M3 is a high-performance Schottky Diode specifically designed for fast switching and low power loss applications. This diode operates at a maximum continuous forward current of 12 A and can block voltages up to 60 V, making it suitable for demanding industrial and electronic component applications.
Surface mountable in a TO-252 3-pin DPAK package, this diode features a common cathode design and a low forward voltage drop of 570 mV, contributing to efficient power management and thermal performance. Its wide operating temperature range from -55°C to 150°C ensures reliable performance even in extreme environmental conditions.
The diode also supports a peak non-repetitive forward surge current of 320 A, accommodating transient current spikes commonly seen in power electronics. This makes it ideal for use in power rectification, switching power supplies, and other industrial electronic circuits.
With compliance to RoHS standards, the VS-12CWQ06FN-M3 supports environmentally conscious manufacturing requirements. Its compact dimensions (6.73 mm x 6.22 mm x 2.39 mm) allow for space-saving design layouts on printed circuit boards.
Designed for surface mount technology with TO-252 package. High continuous forward current and peak surge capabilities. Fast switching action reduces power loss and improves efficiency. Suitable for industrial, power supply, and electronic manufacturing applications.
Wide temperature tolerance for diverse working environments. Complies with international RoHS environmental directives. Compact footprint for optimized PCB space utilization. Reliable common cathode diode configuration ensures stable operation.
This Vishay Schottky Diode is recommended for industrial power electronics, HVAC systems, manufacturing control circuits, and laboratory electronic equipment. Explore more from Vishay's semiconductor portfolio and find compatible components with EnvMart for your next electronics project or industrial application.
