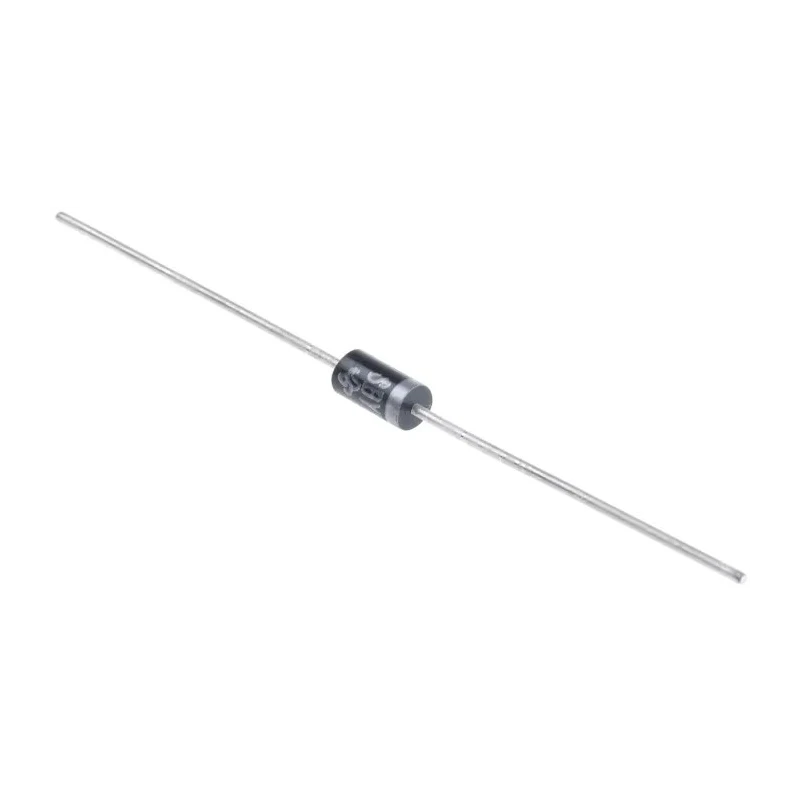

Vishay 100 V 2 A Soft Recovery Diode Through Hole DO-15 Package SBYV27-100-E3/54

Vishay SBYV27-100-E3/54 is a 2-pin, 100 V, 2 A soft recovery diode housed in a through hole DO-15 package, optimized for high efficiency and fast switching applications. Featuring a glass passivated chip junction, this diode offers excellent long-term reliability and low forward voltage drop, which minimizes conduction losses in power circuits.

The ultrafast reverse recovery time of 15 nanoseconds ensures minimal switching losses, making it ideal for use in switching mode power supplies, inverters, and high-frequency rectification tasks.

This diode can handle a peak non-repetitive forward surge current of 50 A, providing robustness under transient conditions. It reliably operates within a temperature range spanning from -55°C to 150°C, supporting various industrial and commercial environments.

Mechanically, the DO-15 case measures 7.6 mm in length with a diameter and width of 3.6 mm, facilitating straightforward integration into through hole PCB designs. The diode complies with RoHS standards and meets JESD 22-B106 and JESD 22-B102 soldering qualification tests, ensuring quality and environmental compliance.

Typical applications include freewheeling and rectification duties in consumer electronics, computing devices, telecommunications equipment, and power conversion systems. Low forward voltage drop reduces power dissipation and increases efficiency.

Ultrafast reverse recovery minimizes switching losses, supporting high-frequency operation. High surge current capability ensures durability during transient load conditions. Wide operating temperature range suits harsh industrial environments.

Lead terminals are matte tin-plated for improved solderability. JESD compliant for solder and whisker resistance standards. Cathode marking by color band enables correct polarity identification. Compact DO-15 package simplifies mounting in through hole applications.

Environmentally compliant with RoHS directives. Ideal for switching mode converters, inverters, and power supplies.

This diode is a reliable choice for engineers designing efficient, compact, and robust power circuits across multiple industries including industrial controls, telecommunications, and computing sectors. Browse the section of Schottky Diodes & Rectifiers on EnvMart for more Vishay high-performance diode components.
