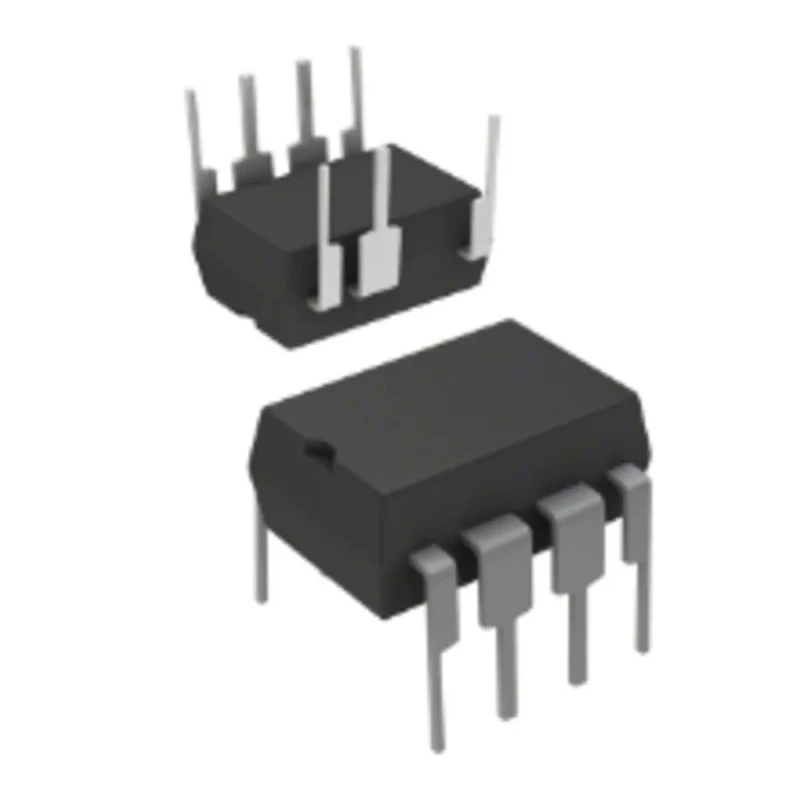

Power Integrations High Side Off Liner Power Switch IC 8-Pin DIP-B 3W, 375mA LNK564PN

Free Delivery in India | Lowest Global Shipping Charges

Power Integrations High Side Off Liner Power Switch IC 8-Pin DIP-B 3W, 375mA LNK564PN

Name: Power Integrations High Side Off Liner Power Switch IC 8-Pin DIP-B 3W, 375mA LNK564PN
Brand: Power Integrations
SKU: 213709
Price: 0.8 USD
Availability: InStock



Category Power Switch IC Brand Power Integrations Condition New

Specifications

Country of Origin	India
Brand	Power Integrations
Height	3.68mm
Length	9.83mm
Model	LNK564PN
Width	6.6mm
Mount Type	Through Hole
Number of inputs	1
Series	LNK564
Power Rating	3W
Maximum Operating Temperature	150°C
Package Type	DIP-B
Minimum Operating Temperature	-40°C
Operating Current	375mA
Number of outputs	5
Pin Count	8
Switch On Resistance RdsOn	88Ω

Key Features

The IC has a maximum power rating of 3 watts, suitable for low power applications.
It features a single input and five outputs enabling multilayer switching functions.
The switch on resistance (RdsOn) is 88 ohms ensuring low conduction losses.
Operating current is 375 milliamps, with operating temperature range from -40°C to 150°C.
Packaged in a through-hole DIP-B 8-pin format for easy mounting.
It incorporates hysteretic thermal shutdown and frequency jitter to reduce EMI effectively.
Ideal for universal input switcher applications worldwide due to low no-load consumption.
Internal oscillator design improves transient load response without overshoot.

Product Description

Power Integrations LNK564PN High Side Off Liner Power Switch IC in an 8-pin DIP-B package is specifically engineered for efficient power management in electronic circuits. Its 3 watt power rating and 375 mA operating current make it suitable for isolated power supplies and low power switching regulator applications.

This Power Switch IC features a single input and five outputs, providing versatile control in power supply designs. The switch exhibits 88 Ω on resistance (RdsOn) which minimizes power losses for improved energy efficiency. Its operating temperature range of -40°C to 150°C enables reliable operation in demanding industrial and electronic environments.

The device supports through-hole mounting, enabling straightforward PCB assembly and prototyping ease. The built-in frequency jitter and hysteretic thermal shutdown protect the IC from thermal damage and drastically reduce EMI, ensuring compliance with electromagnetic compatibility requirements.

Its universal input design allows for worldwide use by replacing conventional linear transformer-based power supplies. The low no-load power consumption below 150 mW helps enhance overall system energy efficiency.

This Power Switch IC is an excellent choice for industrial, laboratory, electronic manufacturing, and HVAC applications requiring efficient and reliable isolated power control. The IC’s low component count reduces system complexity and cost.

Auto-restart functionality minimizes power during fault conditions to protect circuits. High bandwidth enables fast switching without overshoot for stable power output.

Choose Power Integrations LNK564PN for advanced power switch solutions in your next electrical or electronic project, available for selection from EnvMart’s Electronics & Electrical portfolio.
