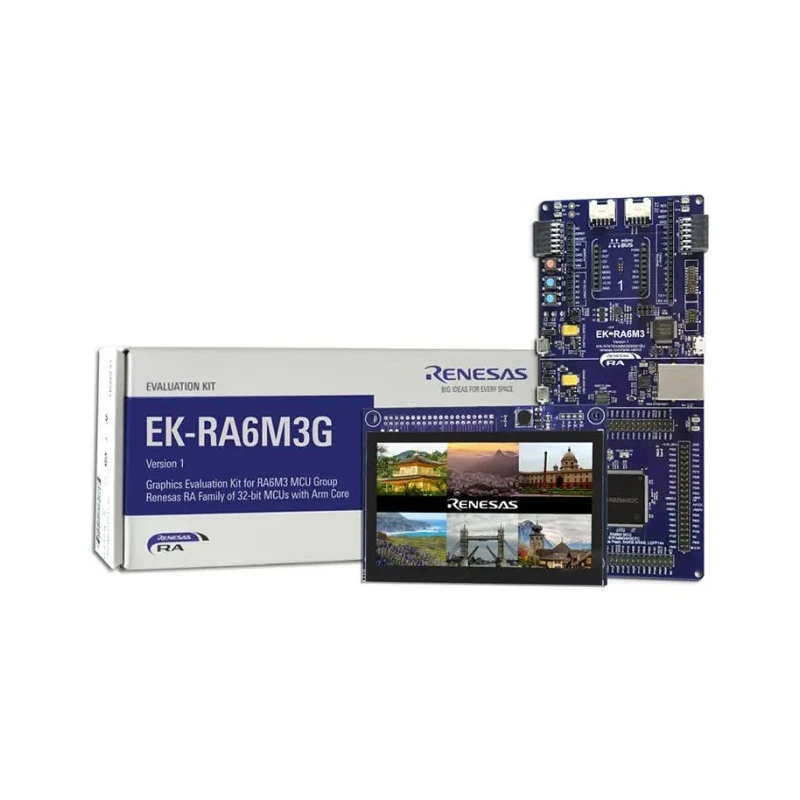

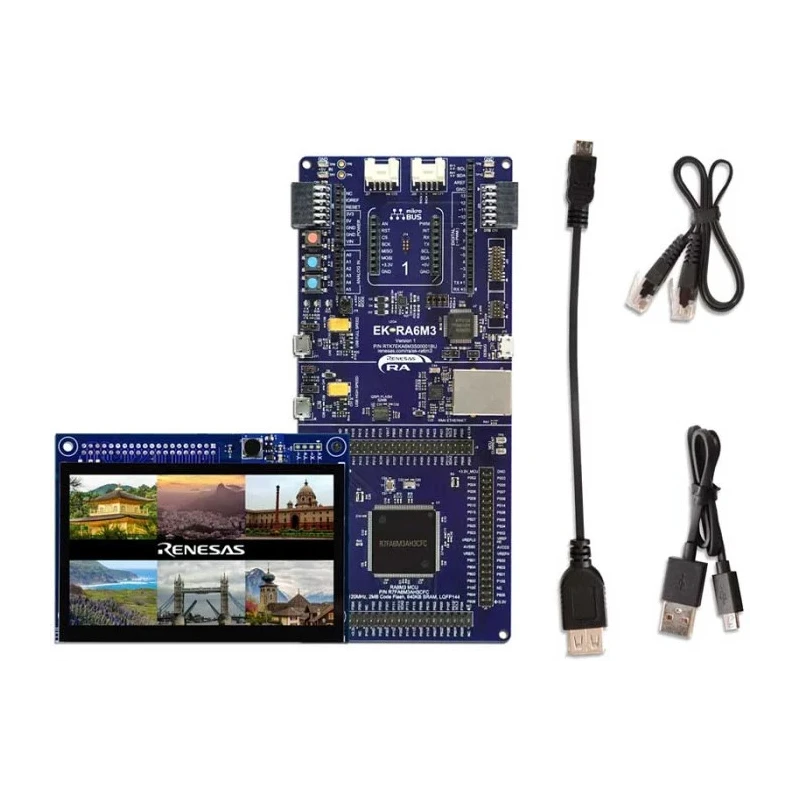

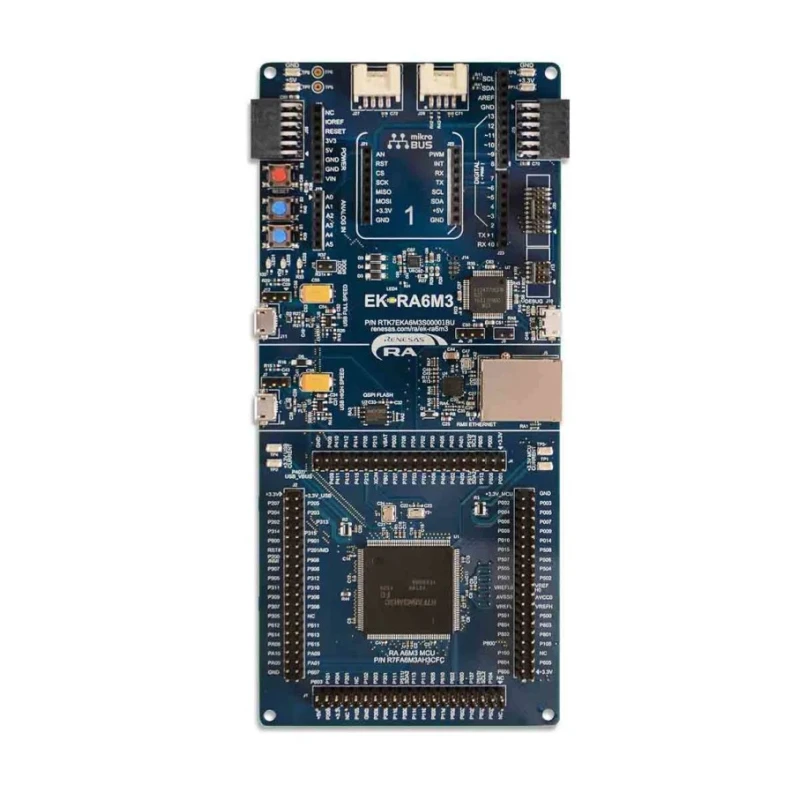

Renesas Electronics ARM Cortex-M4 Development Board with Ethernet, USB HS, TFT/JPEG, 1MB-2MB Flash, 640kB RTK7EKA6M3S01001BU
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Model | RTK7EKA6M3S01001BU |
| Interfaces | Ethernet Controller with DMA |
| Standards/Approvals | RoHS |
| Device Core | ARM Cortex M4 |
| Kit Classification | Development Board |
| Processor Type | MPU |
| SRAM | 640 kB |
| Processor Family Name | ARM |
| Touch Sensing | Capacitive |
| SDHI | Supported |
Key Features
- Equipped with ARM Cortex-M4F 120MHz processor for advanced performance.
- Includes TFT controller with 2D accelerator and JPEG decoder for flexible HMI solutions.
- Provides Ethernet MAC with DMA and USB 2.0 High Speed interface for high data throughput.
- Offers 1MB - 2MB Flash memory, 640kB SRAM, and 64kB DataFlash for optimal storage.
- Capacitive touch sensing and CAN 2.0B interfaces support versatile connectivity.
- Wide scalability from 100-pin to 176-pin packages for modular designs.
- Supports SPI/I2C multimaster interface and SDHI for easy integration.
- Ideal for applications in industrial, HVAC, security, robotics, vending and HMI panels.
Product Description
The Renesas Electronics RTK7EKA6M3S01001BU is an advanced microcontroller development board designed for industrial, commercial, and IoT solutions requiring robust connectivity and high processing power. At its core, the board features a high-performance ARM Cortex-M4F processor running at 120MHz, delivering excellent processing capabilities for demanding real-time applications.
The board integrates a TFT controller with 2D accelerator and JPEG decoder, ideal for developing sophisticated human-machine interfaces (HMI) with rich graphical content. Its hardware supports HMI projects needing small-to-mid-size TFT displays, optimizing user experience and interaction. Ethernet MAC with dedicated DMA and USB 2.0 High Speed controller ensure exceptional data throughput, adding versatility for both wired and wireless networking applications.
Memory resources include 1MB to 2MB Flash coupled with 640kB SRAM and an additional 64kB DataFlash, offering ample space for code, data storage, and application expansion. Capacitive touch sensing provides seamless interaction options and advanced UI design capabilities. CAN 2.0B support enables integration into industry-standard communication networks, such as robotics, automation equipment, vending machines, HVAC/boiler controls, and panel security systems.
The board is scalable, available in packages ranging from 100-pin to 176-pin, making it adaptable for modular designs and project-specific requirements. Integration interfaces include SCI (UART, Simple SPI, Simple I2C), SPI/I2C multimaster, SDHI, and USB Full Speed/High Speed, providing flexibility for designers and engineers across various control, automation, and monitoring applications.
The RTK7EKA6M3S01001BU development board fully supports the Renesas Flexible Software Package (FSP) built on FreeRTOS and is expandable to other RTOS and middleware, encouraging open and customizable firmware ecosystems. Industrial use cases include robotics controls, vending systems, security/fire detection panels, HVAC, boiler controls, and general-purpose embedded projects. Its RoHS compliance ensures safe use in regulated environments.
With its rich feature set, robust connectivity, and extensive memory options, the Renesas Electronics RTK7EKA6M3S01001BU empowers designers and engineers to build innovative, high-performance systems for modern industrial, laboratory, HVAC, and commercial environments. For additional microcontroller and development tool options, explore the full Renesas Electronics portfolio in the Microcontroller Development Tool category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ARM Cortex-M4 processor in this development board operates at a speed of 120MHz, providing advanced performance for demanding applications.
This model offers 1MB to 2MB of Flash memory, 640kB of SRAM, and an additional 64kB of DataFlash, allowing for ample storage for code and data.
It includes an Ethernet controller with DMA, USB 2.0 High Speed interface, and supports SPI/I2C multimaster interface and SDHI for flexible integration.
This development board is suitable for a variety of applications including industrial controls, HVAC systems, security panels, vending machines, and robotics.
The capacitive touch sensing feature allows for seamless interaction and advanced user interface design capabilities, enhancing user experience.
The board is scalable and available in packages ranging from 100-pin to 176-pin, allowing for modular designs tailored to specific project requirements.
Yes, the RTK7EKA6M3S01001BU is RoHS compliant, ensuring it meets safety standards for use in regulated environments.
It fully supports the Renesas Flexible Software Package (FSP) built on FreeRTOS, and is expandable to other RTOS and middleware.
The TFT controller, equipped with a 2D accelerator and JPEG decoder, is designed for developing sophisticated human-machine interfaces (HMI) with rich graphical content.
This development board belongs to the ARM processor family, specifically featuring the ARM Cortex-M4 core.
The CAN 2.0B support allows integration into industry-standard communication networks, making it suitable for automation equipment and robotics.
The maximum SRAM capacity of this development board is 640kB, providing sufficient memory for various applications.
