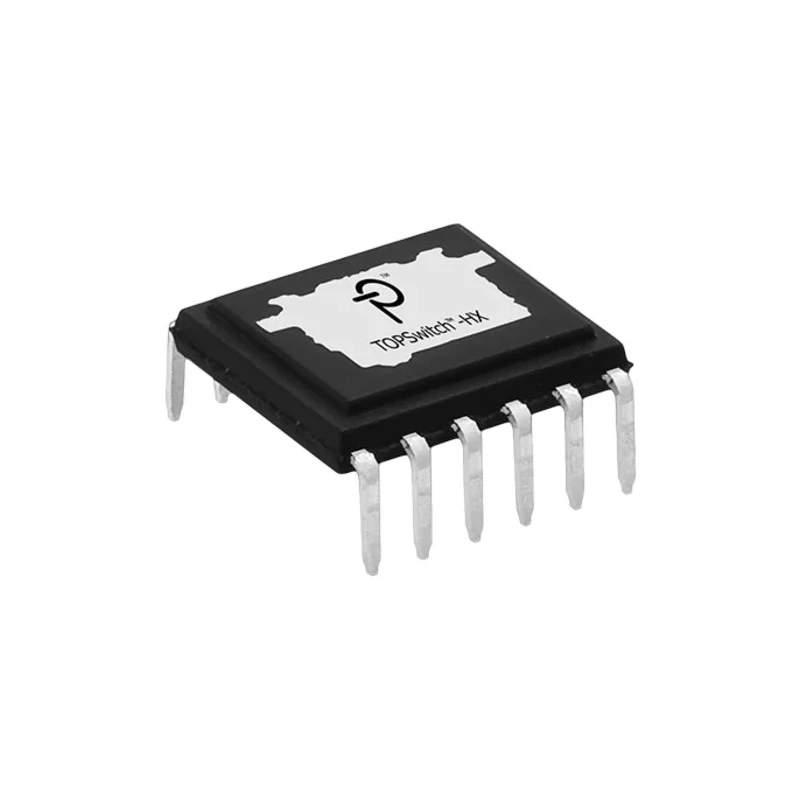

Power Integrations High Side Off Liner Power Switch IC 7-Pin 1.37A Operating Current 29W Power Rating TOP253EN

Name: Power Integrations High Side Off Liner Power Switch IC 7-Pin 1.37A Operating Current 29W Power Rating TOP253EN
Brand: Power Integrations
SKU: 213714
Price: 1.47 USD
Availability: InStock



Category Power Switch IC Brand Power Integrations Condition New

Specifications

Country of Origin	India
Brand	Power Integrations
Height	2.06mm
Length	10.24mm
Model	TOP253EN
Width	8.25mm
Mount Type	Surface
Number of inputs	1
Series	TOP253
Power Rating	29W
Maximum Operating Temperature	150°C
Package Type	eSIPC
Minimum Operating Temperature	-40°C
Operating Current	1.37A
Number of outputs	5
Pin Count	7
Switch On Resistance RdsOn	15.2Ω

Key Features

The device operates with an operating current of 1.37A ensuring reliable performance.
It delivers a power rating of 29W suitable for various power supply designs.
Has a switch on resistance of 15.2 ohms minimizing power loss.
Designed for surface mount with a compact size of 10.24mm length and 8.25mm width.
Rated for operation from -40°C up to 150°C to support wide environmental conditions.
Offers a high level of integration enabling up to 195W power supply design.
Includes output overvoltage protection and line undervoltage detection for enhanced safety.
Requires no heatsink for loads up to 35W improving design compactness.

Product Description

Power Integrations TOP253EN is a highly integrated high side off liner Power Switch IC packaged in a 7-pin eSIPC format. It features a robust operating current of 1.37A and a power rating of 29W, making it suitable for off-line power supplies up to 195W. The device is surface mount compatible with dimensions 10.24mm length, 8.25mm width, and 2.06mm height, optimized for space-constrained electronic designs.

The IC incorporates critical protections including output overvoltage protection (OVP), line undervoltage (UV) detection to prevent turn-off glitches, and line overvoltage shutdown extending line surge capabilities. Its switch on resistance RdsOn is 15.2Ω, reducing power losses and enhancing efficiency under varying load conditions.

Designed for harsh environments, it operates reliably from -40°C to 150°C. The multi-mode operation significantly maximizes efficiency throughout all load conditions, including standby with no-load consumption minimized. Its compact design often eliminates the need for heat sinks up to 35W, helping reduce system size and cost.

The device supports output overvoltage protection to safeguard connected circuits. Incorporates line undervoltage detection preventing operational glitches. Offers built-in programmable current limiting for operational safety.

Operates efficiently across all load ranges with optimized line feed-forward for ripple rejection. Integrated soft-start minimizes startup stress enhancing device reliability. Suitable for industrial electronics, power management, laboratory instruments, manufacturing, HVAC, and commercial applications.

The TOP253EN series from Power Integrations is an excellent choice for engineers designing power supplies requiring compact, efficient, and safe power switching components. Explore EnvMart categories for similar power management integrated circuits and enhance your projects with trusted industrial components.
