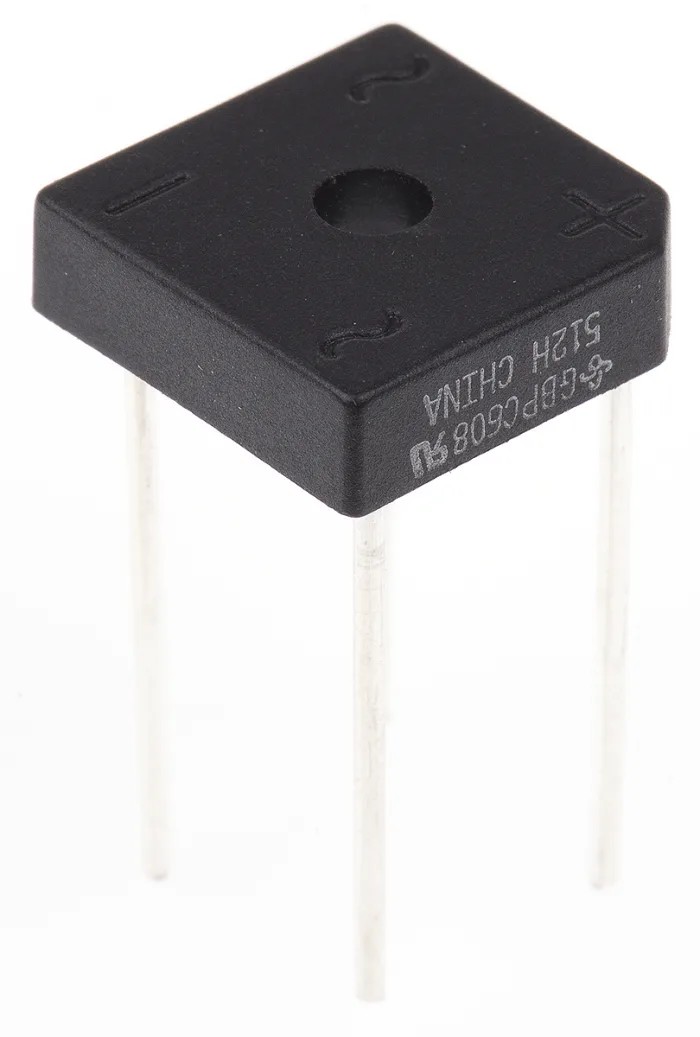

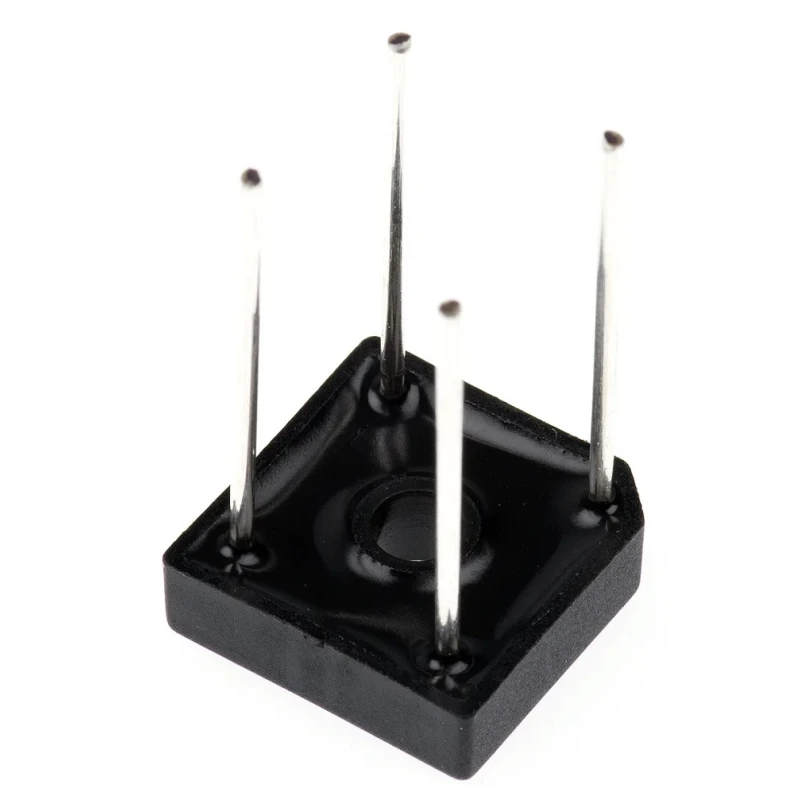

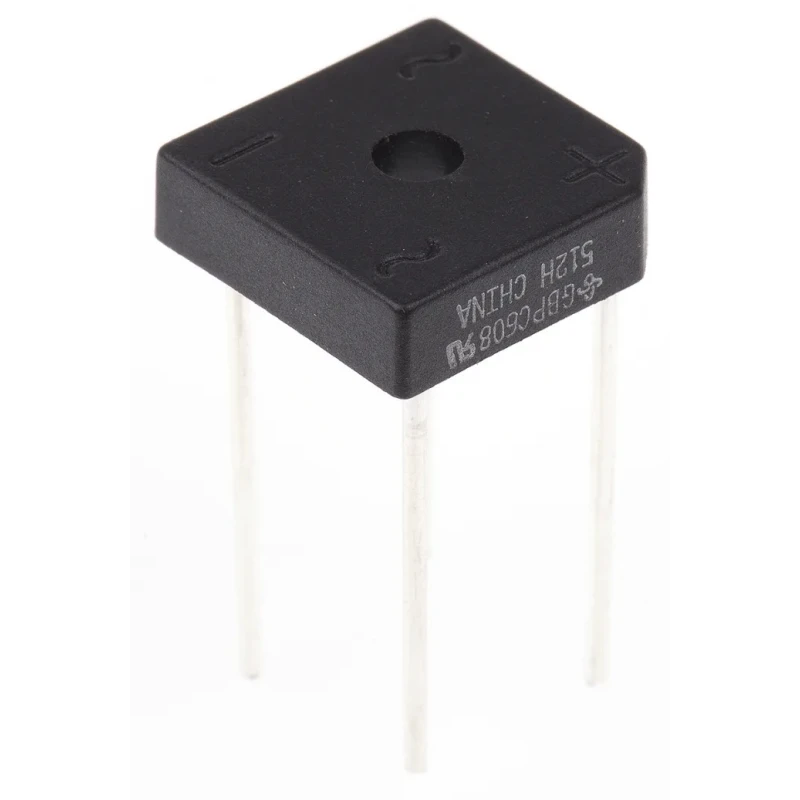

Vishay Bridge Rectifier 800 V 175 A 4-Pin Through Hole Package GBPC6 Series GBPC608-E4/51

Free Delivery in India | Lowest Global Shipping Charges

Vishay Bridge Rectifier 800 V 175 A 4-Pin Through Hole Package GBPC6 Series GBPC608-E4/51

Name: Vishay Bridge Rectifier 800 V 175 A 4-Pin Through Hole Package GBPC6 Series GBPC608-E4/51
Brand: Vishay
SKU: 200810



Category Bridge Rectifier Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	5.08mm
Length	16mm
Model	GBPC608-E4/51
Width	16mm
Mount Type	Through Hole
Series	GBPC6
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	GBPC6
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	800V
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	175A
Forward Current If	6A
Peak Forward Voltage Vf	1V
SIL.BRIDGE 3A/800VBrand	NEUTRAL
Vishay Bridge Rectifier, 6A, 800V, 4-PinBrand	Vishay
Vishay Bridge Rectifier, 800 V 137 A, 4-Pin SingleBrand	Vishay

Key Features

Four-pin configuration suitable for through-hole mounting.
Peak reverse repetitive voltage of 800 V ensures high voltage tolerance.
Forward current rating of 6 A with a peak non-repetitive surge current of 175 A.
Operational temperature range from -55°C to 150°C for reliable thermal performance.
Compact GBPC6 package dimensions of 16 mm length, 16 mm width, and 5.08 mm height.
Typical peak forward voltage drop of 1 V enables efficient rectification.
Ultra-low peak reverse current of 5 μA for low leakage losses.
Designed for full-wave rectification converting AC to DC with high reliability.

Product Description

Vishay GBPC608-E4/51 Bridge Rectifier is a reliable semiconductor device designed for single-phase AC to DC conversion in electronic circuits. Featuring a 4-pin through-hole GBPC6 package, it is optimized for PCB mounting with compact dimensions of 16 mm by 16 mm by 5.08 mm. It is rated for a peak reverse repetitive voltage (VRRM) of 800 volts and a forward current of 6 amperes, making it suitable for various power rectification applications.

The device supports a peak non-repetitive forward surge current (IFSM) of 175 amperes, handling transient load conditions effectively. It operates reliably within a temperature range from -55°C to 150°C, ensuring durable thermal stability. The peak forward voltage drop of approximately 1 volt minimizes power losses during conduction, while its ultra-low peak reverse current of 5 microamperes reduces leakage currents for enhanced efficiency.

This bridge rectifier is an essential component for industrial, laboratory, HVAC, manufacturing, power supply, and electronic equipment applications requiring full-wave rectification. The diode arrangement ensures consistent polarity output regardless of AC input polarity, enabling smooth DC power delivery.

Its robust construction guarantees stability and long-term operation in challenging environments. Four-pin through-hole GBPC6 package provides easy PCB mounting. Rated 800 V peak reverse voltage and 6 A forward current. Peak surge current of 175 A for handling transient loads.

Operating temperature range from -55°C to 150°C supports diverse applications. Compact dimensions of 16 mm × 16 mm × 5.08 mm fit space-constrained layouts. Low peak forward voltage drop minimizes conduction loss. Ultra-low reverse leakage current enhances efficiency.

Suitable for full-wave rectification in power supply circuits. Ideal for industrial, electronics, and manufacturing environments requiring reliable rectifiers. Manufactured in China by Vishay, ensuring quality standards.
