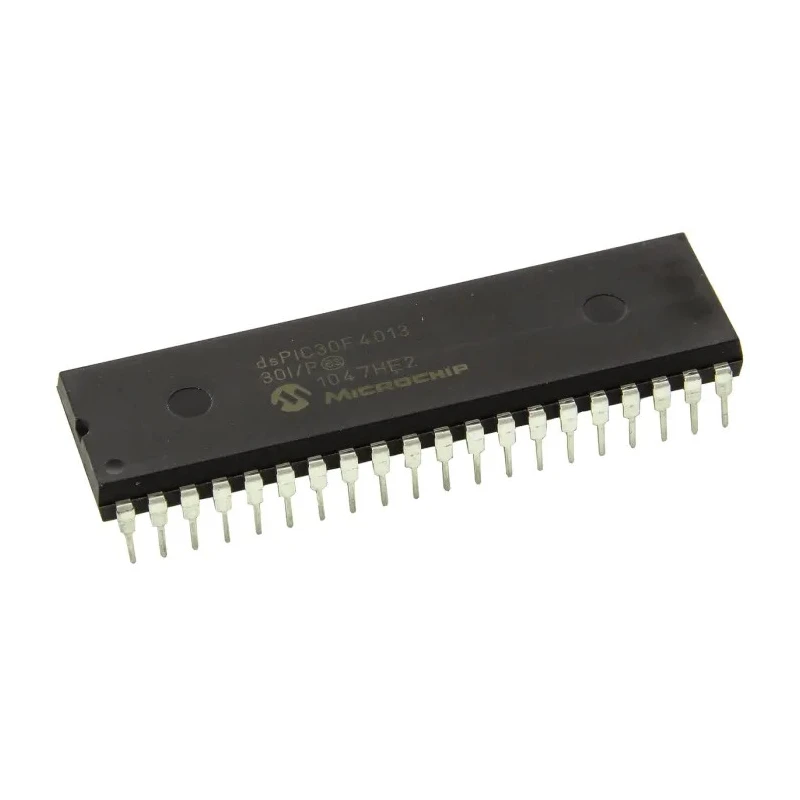

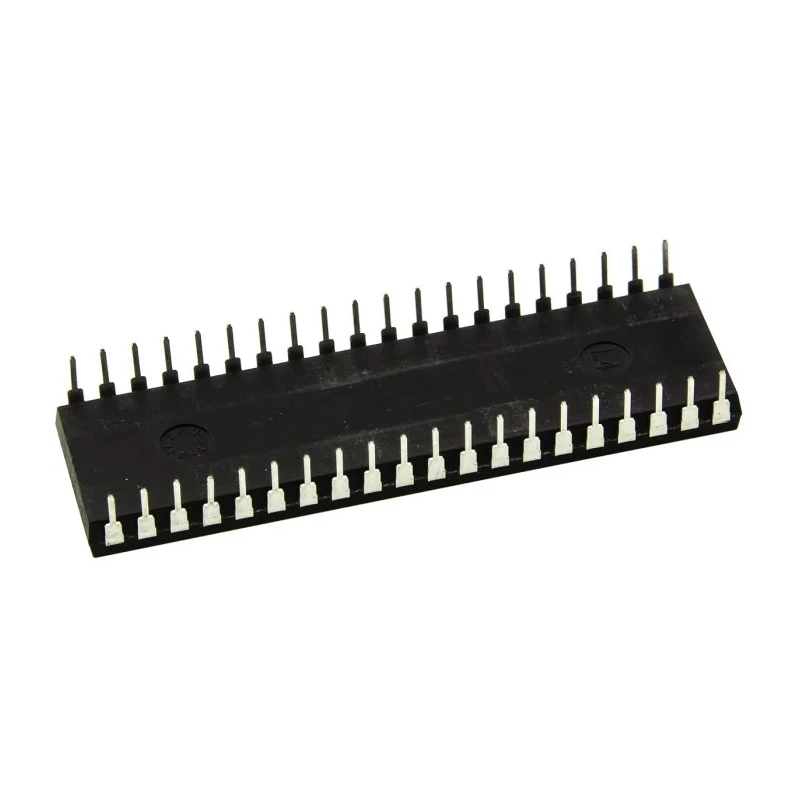

Microchip dsPIC30F Digital Signal Processor 16 bit 30 MIPS 48kB FLASH 40-Pin PDIP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.95mm |
| Length | 53.21mm |
| Model | dsPIC30F |
| Width | 14.5mm |
| Mount Type | Through Hole |
| Series | dsPIC30F |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 2kB |
| ADC Resolution | 12bit |
| Timer Resolution | 16bit |
| Pin Count | 40 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Program Memory Size | 48kB |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| Program Memory Type | FLASH |
| Number of ADCs | 1 |
| Device Million Instructions per Second | 30MIPS |
| Number of PWM Units | 4 |
| PWM Resolution | 16bit |
| ADC Channels | 13 |
Key Features
- Operates with a supply voltage range from 2.5V to 5.5V, ensuring flexible power options.
- Features a RISC instruction set architecture for efficient processing and low power consumption.
- Includes 2kB RAM and single ADC with 12-bit resolution across 13 ADC channels.
- Incorporates 4 PWM units and 5 timers suitable for complex control schemes.
- Designed for through-hole mounting in a 40-pin PDIP package measuring 53.21mm by 14.5mm by 4.95mm.
- Operating temperature range from -40°C to 85°C allows use in harsh environments.
- Adapted for applications requiring digital signal processing with integrated motor control and codec interfaces.
- Suitable for industrial, automotive, audio processing, and smart sensing applications.
Product Description
Microchip DSPIC30F4013-30I/P is a high-performance 16 bit Digital Signal Processor delivering 30 MIPS with 48kB FLASH program memory, packaged in a 40-Pin PDIP form factor. It supports a supply voltage spanning 2.5V to 5.5V, making it adaptable to a variety of embedded system power requirements. Its RISC architecture maximizes efficiency and performance while minimizing power consumption.
This device includes 2kB of RAM and a single analog-to-digital converter (ADC) featuring 12-bit resolution across 13 channels, enabling precise sensor interfacing. The inclusion of 4 PWM units and 5 timers allows for advanced control tasks and timing operations, which are essential in motor control and signal processing tasks.
The package dimensions of 53.21mm length, 14.5mm width, and 4.95mm height support through-hole mounting, facilitating easy integration into a range of circuit boards. The operating temperature range from -40°C to 85°C ensures usability in industrial and automotive environments exposed to wide temperature variations.
dsPIC30F Digital Signal Controllers combine DSP performance with MCU simplicity, offering features such as integrated SMPS and motor control peripherals alongside codec interfaces. This makes them ideal for digital power converters, advanced motor control algorithms, speech and audio processing, and smart sensing applications.
Supply voltage range: 2.5V to 5.5V. RISC instruction set architecture. 48kB FLASH program memory and 2kB RAM. 12-bit ADC resolution with 13 channels. 4 PWM units and 5 timers for motor control. Through hole mount PDIP package with 40 pins.
Operating temperature: -40°C to 85°C.
This Digital Signal Processor is suited for industrial, automotive, audio processing, and smart sensor embedded applications, providing high efficiency and integration for modern control systems. Explore additional Microchip semiconductor products on EnvMart for diverse engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with a supply voltage range from 2.5V to 5.5V, providing flexibility for various power requirements.
This model delivers 30 MIPS (Million Instructions Per Second), allowing for efficient processing of digital signals.
It includes 48kB of FLASH program memory, suitable for a range of embedded applications.
The package measures 53.21mm in length, 14.5mm in width, and 4.95mm in height, designed for through-hole mounting.
This model features a 12-bit ADC resolution across 13 channels, enabling precise sensor interfacing.
It incorporates 4 PWM units, which are useful for advanced control tasks in applications such as motor control.
The operating temperature range is from -40°C to 85°C, making it suitable for harsh environments.
It utilizes a RISC instruction set architecture, which maximizes efficiency and performance while minimizing power consumption.
It is designed for applications requiring digital signal processing, including industrial, automotive, audio processing, and smart sensing.
This model includes 5 timers, which are essential for timing operations in various control tasks.
It features 2kB of RAM, which supports the processing tasks and data handling requirements of embedded applications.
The maximum operating temperature is 85°C, allowing it to function in high-temperature environments.
