TDK N97 ETD 29/16/10 Transformer Ferrite Core 2250 nH for Power Transformer SMPS Transformer B66358G0000X197

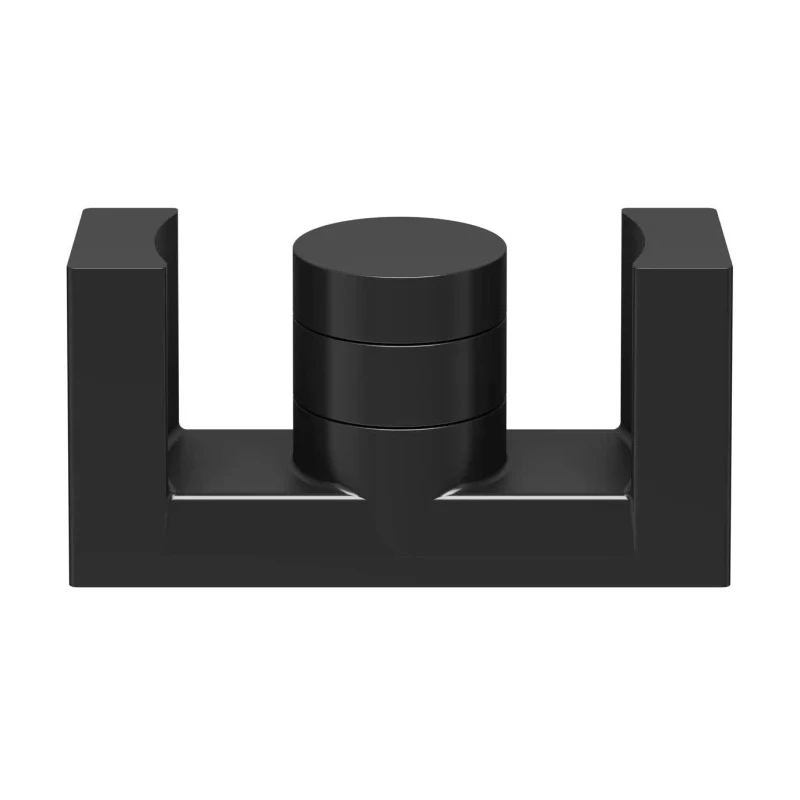

TDK B66358G0000X197 transformer ferrite core, sized ETD 29/16/10, with an AL rating of 2250 nH, is engineered for high efficiency in power transformers and SMPS (Switch Mode Power Supply) transformers. Utilizing high-quality N97 ferrite material, this core meets the stringent IEC 61185 standard, assuring reliable magnetic performance suitable for industrial and electronic applications.

The core dimensions measure 30.6 mm in length, 9.8 mm in width, and 16 mm in depth, enabling a compact and efficient design ideal for space-constrained transformer assemblies. This ferrite core belongs to the B66358 series, which is known for versatility, offering both gapped and ungapped varieties depending on the transformer design requirements.

The N97 material composition supports excellent magnetic permeability with minimal losses, achieving an optimum weight to performance ratio. This makes the core especially suitable for switch mode power supply transformers where size and efficiency are critical. Applications include industrial power transformers, SMPS units, and other electronic transformer assemblies demanding consistent and high-quality magnetic components.

TDK's manufacturing process ensures precision and durability, making the B66358G0000X197 core a reliable choice for engineers and manufacturers designing next-generation power and SMPS transformers.

Manufactured using N97 ferrite material for optimal magnetic properties. Complies with IEC 61185 standards ensuring quality and reliability. Dimensions are 30.6 mm length, 9.8 mm width, and 16 mm depth for compact design.

Offered as part of the B66358 series for consistent performance. Suitable for gapped and ungapped core applications in switch mode power supplies. Provides excellent balance between weight and magnetic performance. Explore more TDK Transformer Cores and electronic components on EnvMart for industrial and laboratory applications.
