TDK Diameter 3.4 mm Dual Aperture Ferrite Core K1 Material For Broadband Transformer B62152A0001X001

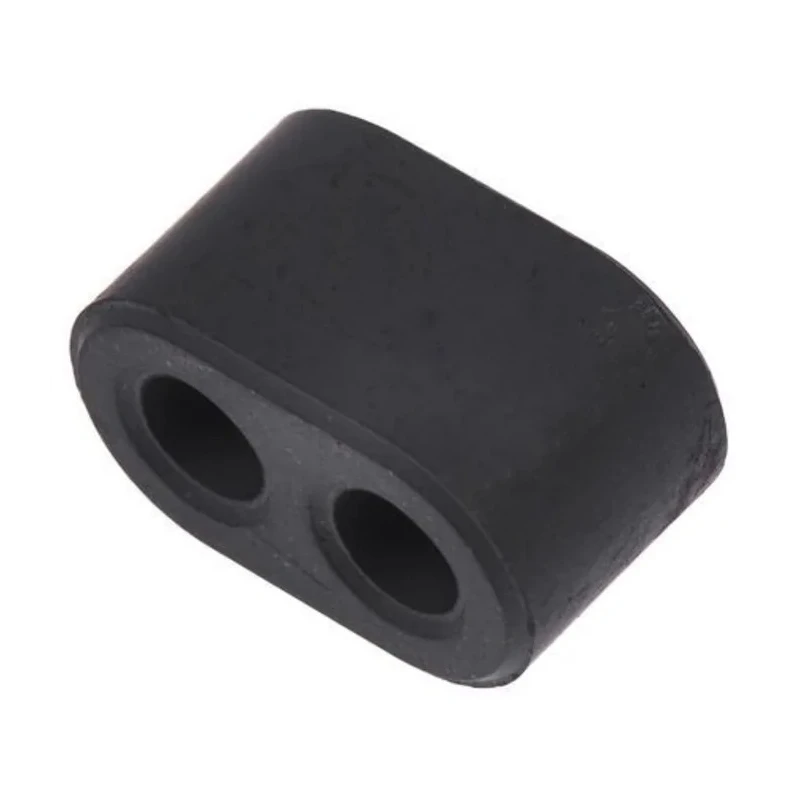

TDK B62152A0001X001 dual aperture ferrite core is engineered from K1 material to support broadband transformer applications requiring high frequency and precision. This core features dual apertures designed specifically for efficient energy transformation and signal balancing within industrial electronic circuits.

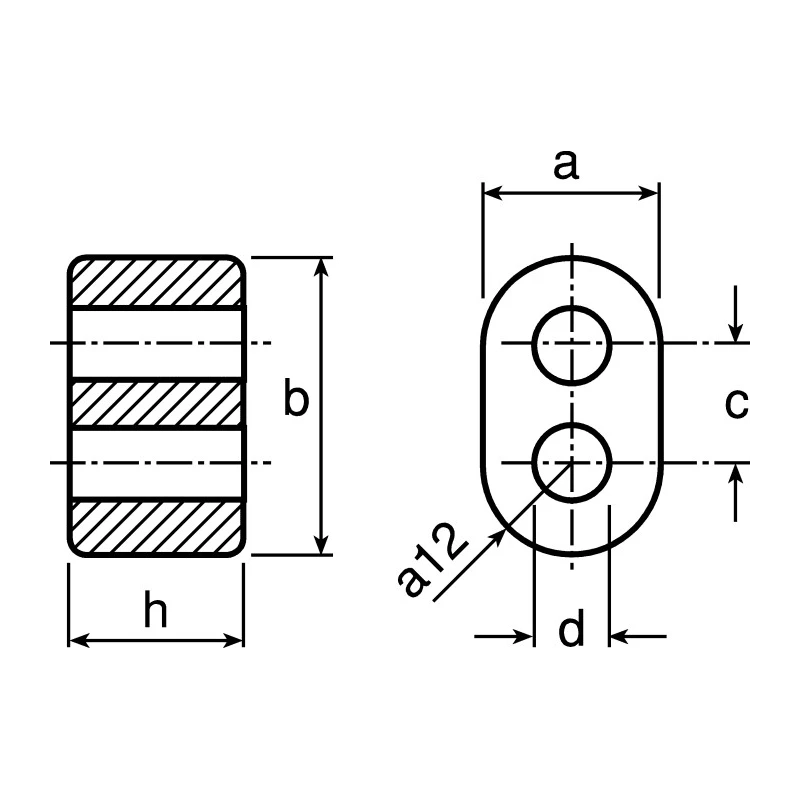

The ferrite core presents exact aperture diameters of 8.5 mm, 14.5 mm, and 14.5 mm along with compact external dimensions of 14.5 mm width, 14.5 mm height, and 8.5 mm depth. Its gapped-free and sealed construction ensures consistent impedance and robust mechanical integrity.

With an impedance of 70Ω at 25 MHz and 139Ω at 100 MHz, it caters well to broadband signals, making it optimal for use in antenna feeders, pulse applications, and VHF/TV receiver input circuits up to 250 MHz frequency.

The product is RoHS compliant, reflecting adherence to environmental and safety standards, embodying quality and reliability in transformer core components. Constructed from K1 material suitable for matching transformers and balancing mixers.

Features dual apertures with diameters of 8.5 mm, 14.5 mm, and 14.5 mm. Compact external dimensions of 14.5 mm width, 14.5 mm height, and 8.5 mm depth. Offers an impedance of 70Ω at 25 MHz and 139Ω at 100 MHz. Non-gapped, non-openable core design for durability and consistent performance.

Complies with RoHS standards ensuring environmental safety. Ideal for antenna feeders and input circuits of VHF and TV receivers up to 250 MHz frequency.

This dual aperture ferrite core from TDK is highly suitable for industrial, telecommunications, and electronics manufacturing sectors requiring broadband transformers with precise electrical characteristics and compact form factor. For buyers seeking reliable transformer components, this product is available on EnvMart with assured quality and specification adherence.
