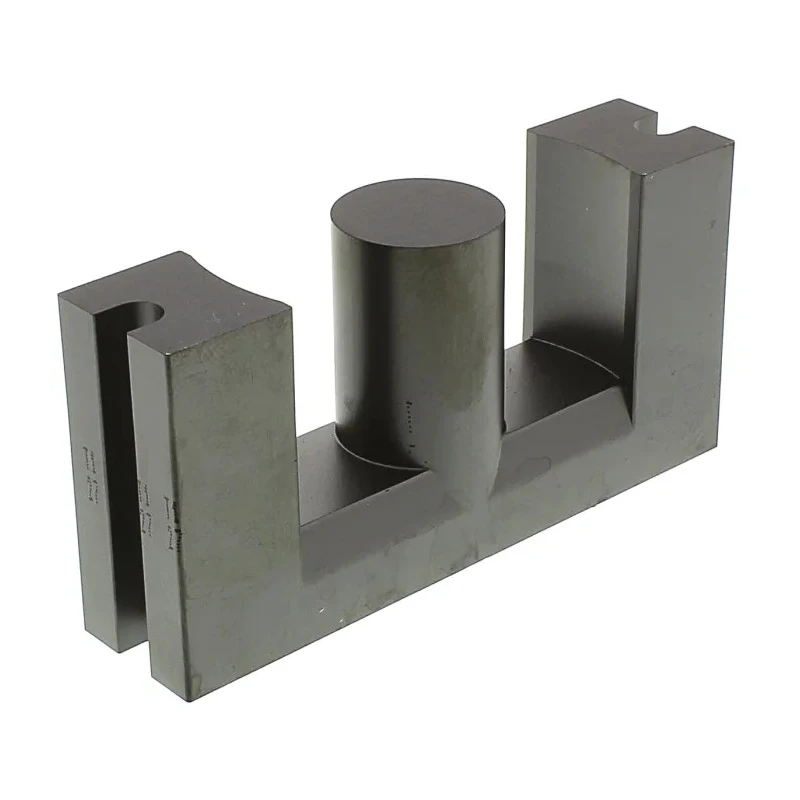

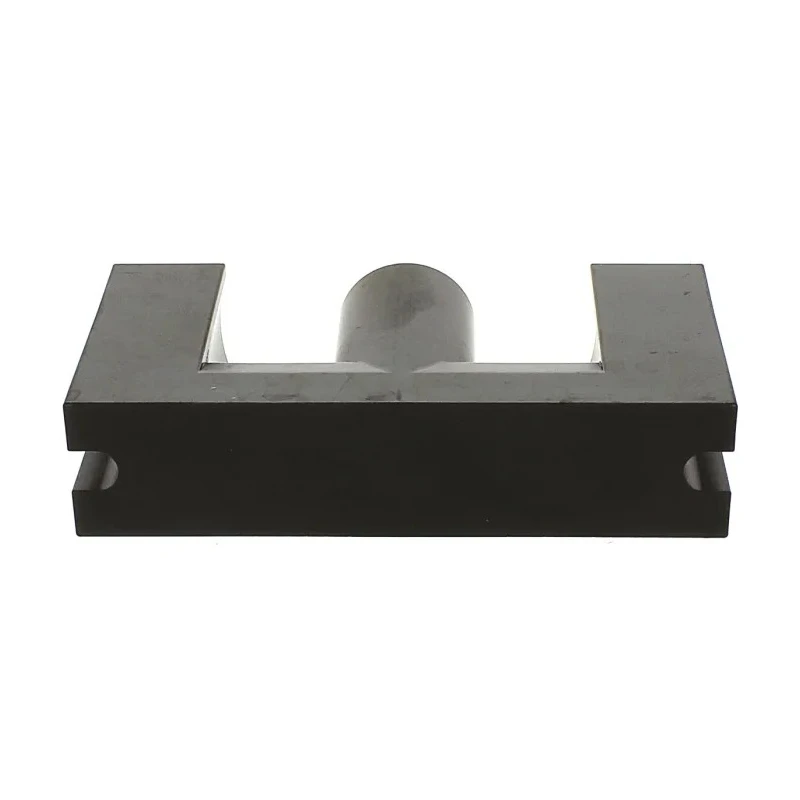

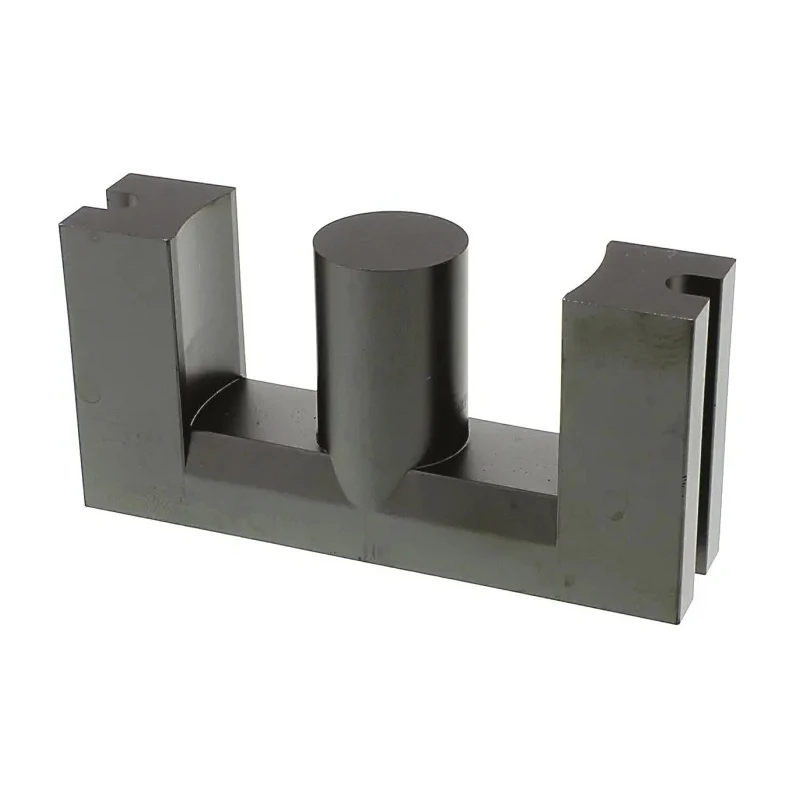

TDK Transformer Ferrite Core N27 Material EC 70 Core Size, AL Rating 3900nH, Power Transformer Use B66343G0000X127
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Material | N27 |
| Length | 70mm |
| Model | B66343G0000X127 |
| Depth | 16.8mm |
| Width | 34.6mm |
| For Use With | Power Transformer |
| Core Size | EC 70 |
| AL Rating | 3900nH |
Key Features
- The core is fabricated from N27 material ensuring efficient magnetic properties.
- It measures 70 mm in length with a width of 34.6 mm and a depth of 16.8 mm.
- Suitable for use in various power transformer designs requiring precise inductance control.
- The ferrite core is supplied without an air-gap for optimized transformer performance.
- It complies with standard quality and performance requirements but has no specific certifications.
Product Description
TDK B66343G0000X127 Transformer Ferrite Core features an EC 70 core size made from N27 material, delivering an AL rating of 3900 nH. This ferrite core is specifically intended for use with power transformers, making it an essential component in power supply and distribution systems.
The core measures 70 mm in length, 34.6 mm in width, and has a depth of 16.8 mm, providing a compact form suitable for various transformer designs. Its construction without an air-gap ensures stable inductance characteristics which are crucial in high-performance transformer applications.
Typical industrial use cases include power transformers in electrical distribution, power electronics, and signal processing applications. The precise AL rating aids in designing transformers with optimized inductance and minimal losses.
The product does not carry specific standards or approvals but meets general industry expectations for quality and reliability. This transformer ferrite core supports enhancements in power transformer efficiency, reducing core losses and improving overall device performance.
The core is made from high-grade N27 ferrite material delivering reliable magnetic performance. Precise core size EC 70 allows for versatile power transformer design implementations. AL rating of 3900 nH for effective inductance tuning in transformers.
Compact dimensions of 70 mm length, 34.6 mm width, and 16.8 mm depth. Designed without an air-gap to maintain consistent magnetic properties. Ideal for industrial and laboratory power transformer manufacturing and assembly.
Explore the Electronics & Electricals category at EnvMart for related transformers and transformer parts to complement your power supply projects.
Explore more products in our Transformer Cores category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The AL rating of this transformer ferrite core is 3900 nH, which aids in designing transformers with optimized inductance.
This core measures 70 mm in length, 34.6 mm in width, and 16.8 mm in depth, providing a compact form suitable for various transformer designs.
The ferrite core is made from N27 material, which ensures efficient magnetic properties for power transformer applications.
No, this ferrite core is supplied without an air-gap, which helps maintain consistent magnetic properties and stable inductance characteristics.
This core is specifically intended for use with power transformers, making it suitable for power supply and distribution systems.
The core size classification of this model is EC 70, which allows for versatile power transformer design implementations.
Typical industrial applications include power transformers in electrical distribution, power electronics, and signal processing.
The country of origin for this transformer ferrite core is India.
Key features include its AL rating of 3900 nH, compact dimensions, and construction from high-grade N27 material, ensuring reliable magnetic performance.
This transformer ferrite core does not carry specific standards or approvals, but it meets general industry expectations for quality and reliability.
The AL rating of 3900 nH is crucial for effective inductance tuning in transformers, helping to minimize losses and enhance performance.
The model number of this transformer ferrite core is B66343G0000X127, identifying it within the TDK product range.
