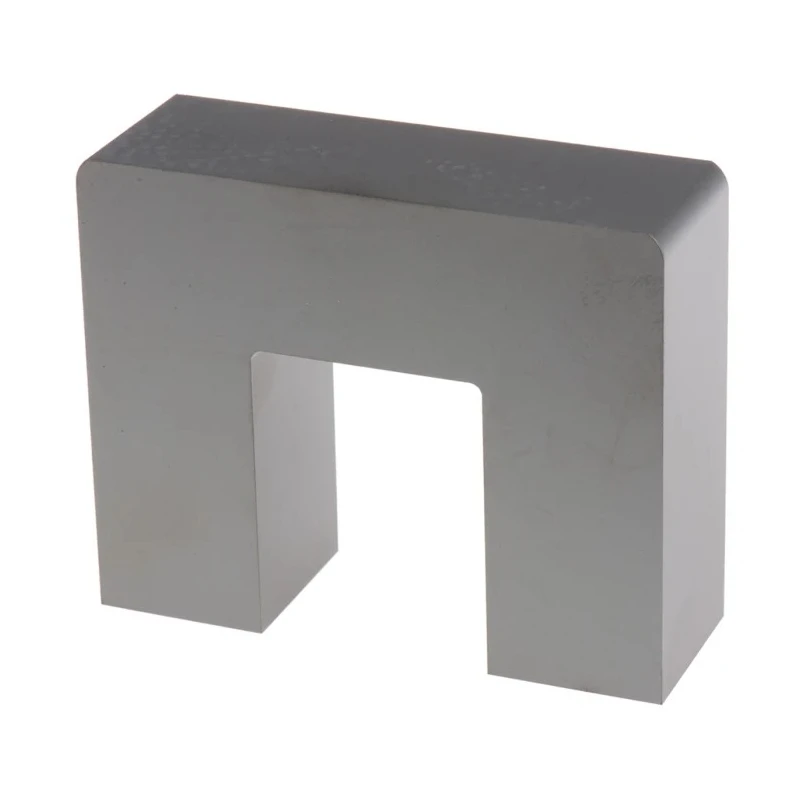

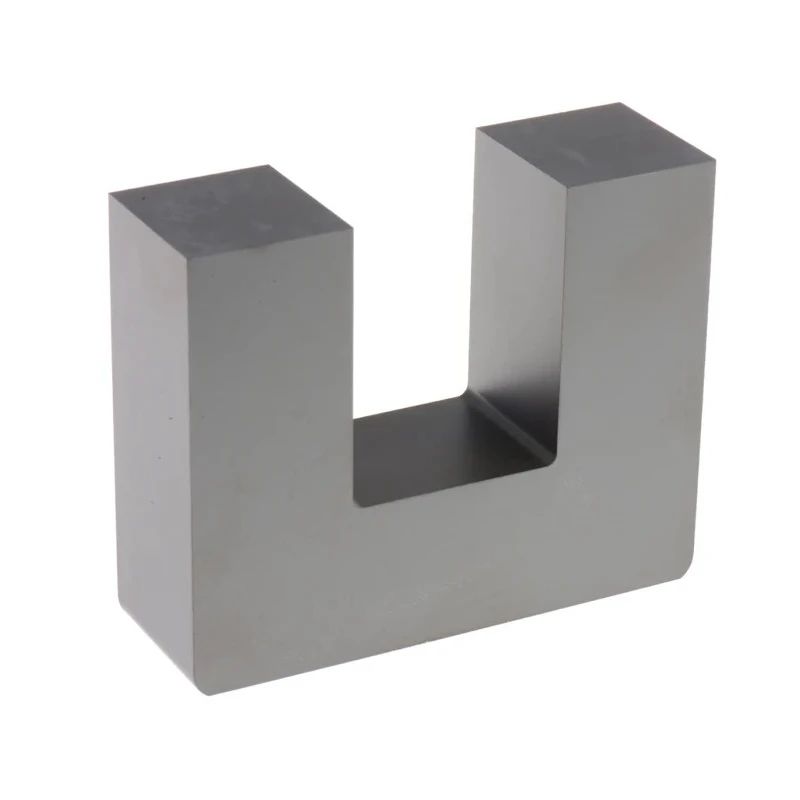

TDK Transformer Ferrite Core, N87 Material, U 93/104/30, 5700 nH AL Rating, B67345B0001X087

The TDK B67345B0001X087 transformer ferrite core is designed for demanding industrial and power supply applications, utilizing SIFERRIT N87 ferrite material. Its U 93/104/30 configuration delivers superior inductive performance and reliability.

Featuring an AL Rating of 5700 nH, this core efficiently supports transformer designs needing enhanced inductance along with high saturation flux density and low dissipation losses. The N87 material ensures stable magnetic properties, high curie temperature, and minimized energy loss - making it ideal for construction of power transformers and storage chokes in electrical and electronic equipment.

The rectangular U core design, measuring 93 mm in length, 30 mm in depth, and 76 mm in width, allows easy integration into custom transformer builds. EPCOS U cores and compatible I cores are supplied separately, supporting versatile UI combinations for specific transformer architectures.

This product belongs to TDK's B67345 series, recognized for high performance in pulse and high-voltage transformer applications. The AL value applies to sets with either two U cores (UI 93/152/30) or one U core and one I core (UI 93/104/30) without air gaps.

Ideal for use with power transformers, storage chokes, and other industrial power supply systems, this ferrite core supports applications ranging from power conversion to electronic circuit protection. It is engineered to meet the demands of manufacturing, laboratory equipment, energy systems, and commercial electronic devices.

Industrial use cases include transformer assembly, electrical manufacturing, laboratory equipment design, and integration within commercial electronic systems. Explore more transformer core solutions from TDK in the EnvMart catalog for advanced electronic projects and industrial requirements.
